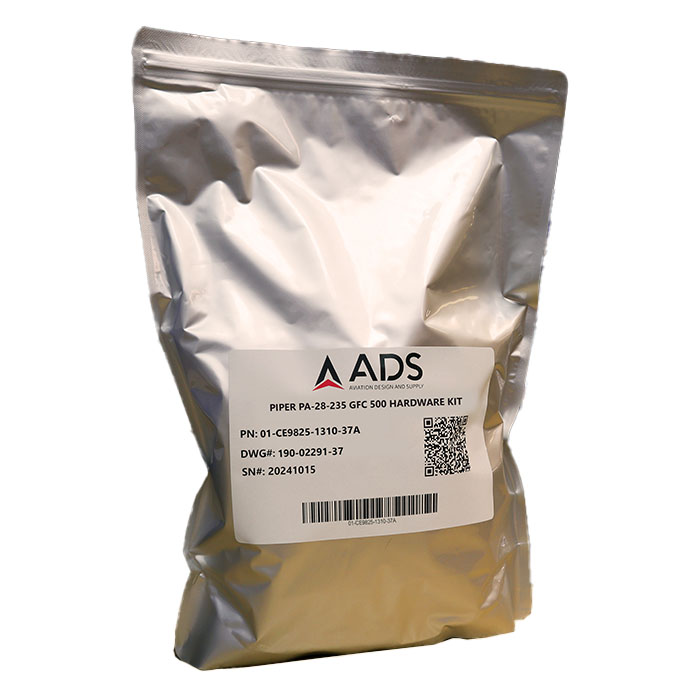

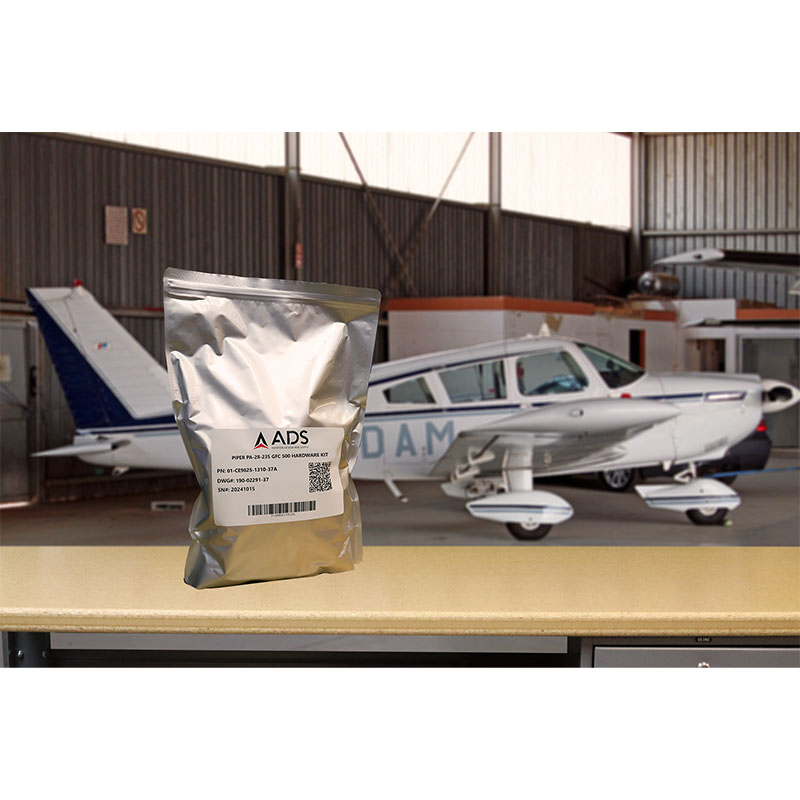

ADS GFC 500 Installation Hardware Kit - Piper PA-28-235

$440.00/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 11-20503
MFR Model# 01-CE9825-1310-37A

Overview

This kit includes all the “Best Source” hardware listed in the Garmin® installation addendum including the connector and ground stud hardware for the control head and each servo listed in the Garmin® installation manual. This will save valuable billable time and allow you to do more!

Specifications

  • Weight: 4 lbs
  • Dimensions: 10 × 10 × 10 in
  • Compatible Aircraft Make: Piper
  • Compatible Aircraft Model: PA-28-235
  • Compatible Autopilot: GFC 500
  • Reference: 190-02291-37
  • Not Included In Kit: 09-02033-1, 115-03354-00, 117-01472-00, 117-01472-01

In The Box

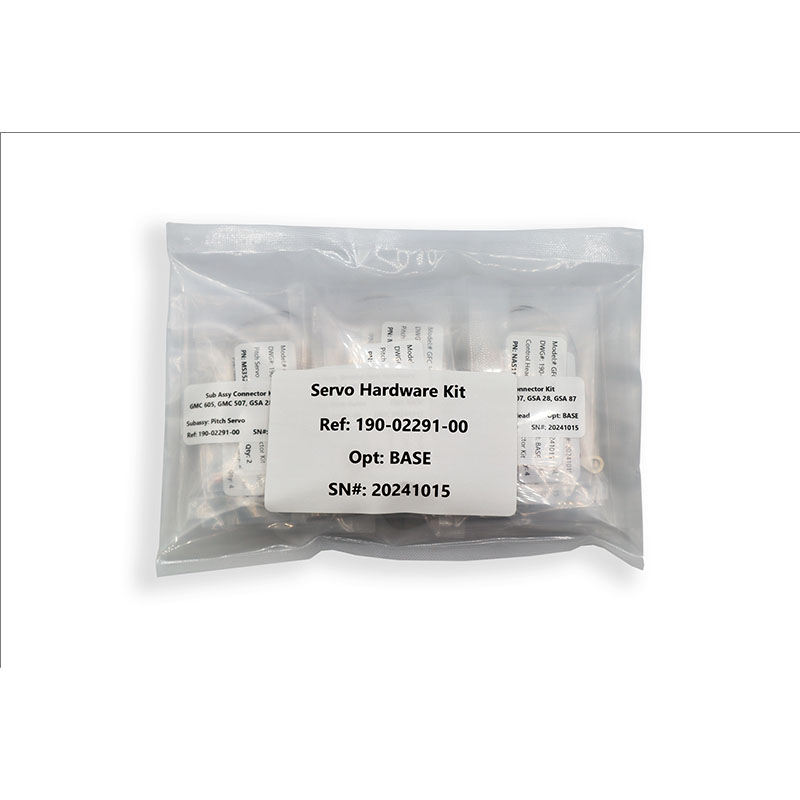

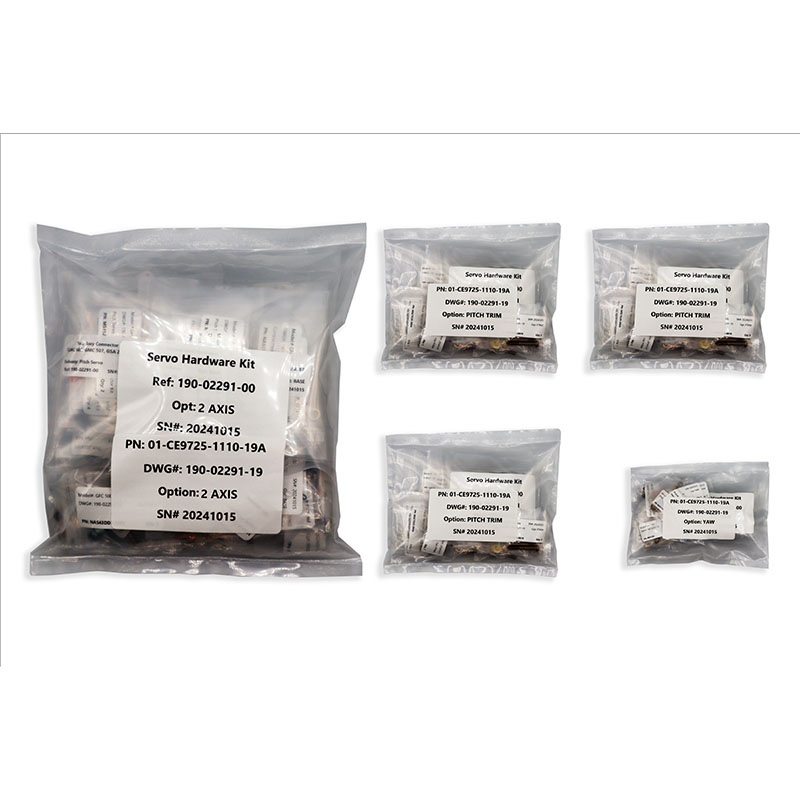

  • Hardware for 2 Axis, Pitch Trim 1, Pitch Trim 2, Pitch Trim FM, and Yaw Options

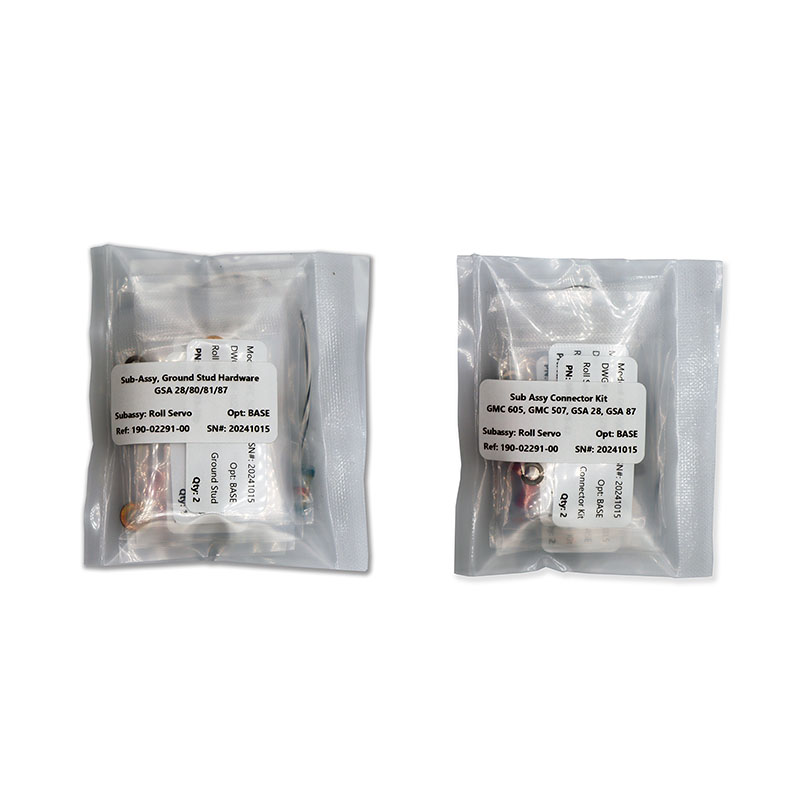

  • Hardware for Pitch, Roll, All Pitch Trim Options, Yaw Servos Including Environmental Solder Sleeves
  • All Available Material Certs (Upon Request)
  • Aviation Design and Supply Certificate of Conformance
