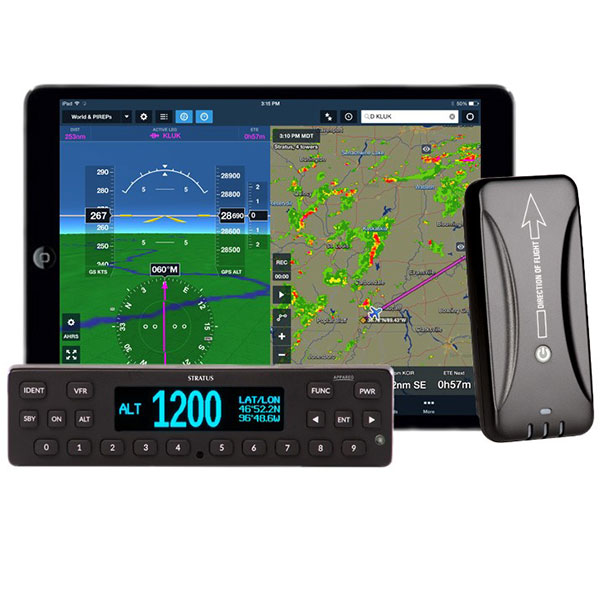

Appareo Stratus ES ADS-B In / Out Transponder With 3I Kit - Certified Aircraft

0 Reviews 3 Answered Questions
$3953.40/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 11-16555
MFR Model# 153010-000039/62

Overview

Note: This unit must ship to an approved Appareo installer for installation.
Click here to locate an installer. Tablet not included.


Stratus Stratus ES provides a simple all-in-one solution. The unit was built without GPS in order to provide affordable ADS-B Out to aircraft owners who have already invested in WAAS GPS. Stratus ES will make an aircraft rule-compliant when paired with any of the following navigators:
  • Garmin 480, 430W, 530W, 6XX, 7XX
  • Avidyne IFD440, IFD540

Stratus ES (ADS-B OUT)
  • 1090ES transponder
  • Utilizes existing navigator for GPS Source
Stratus 3i (ADS-B IN)
  • Non-certified receiver made only for Stratus ES
  • Backup AHRS
  • Integrated with ForeFlight on iPad
  • Requires connection to Stratus ES

Features

  • 1090ES (Mode S extended squitter)
  • Built-in WAAS GPS
  • Meets global mandates for ADS-B Out
  • Push-button operation
  • Easy-to-use interface
  • Pressure altitude monitor

Specifications

  • Bezel Height: 1.69 in. (43 mm)
  • Bezel Width: 6.38 in. (162 mm)
  • Depth: 10.75 in. (273 mm) front of panel to connector backshell
  • Weight: 3.29 lbs. (1.49 kg) including rack and connectors
  • Operating Temperature: -20°C to 55°C
  • Storage Temperature: -55°C to 85°C
  • Power Input: 9.0 to 36.0 VDC, 15 W typical
  • Cooling Input: No fan required
  • Environmental Compliance: DO-160G
  • Software Compliance: DO-178B Level C
  • Hardware Compliance: DO-254 Level C
  • Display: OLED
  • Transmitter Power: 310 W

Reviews

Submit a Review

Q&A

Submit

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: How big is the tablet display you include with the kit (the one pictured)?

The tablet is not included. That image is for reference to show that the Stratus 3i can be paired to display data on a tablet.

Q: Hello, Just wanted to inform everyone that the new Stratus 3 and 3i ADS-B receivers now support FlyQ EFB iPad/iPhone app. Out-of-the-box its locked into one app, Foreflight, but can easily configured to support FlyQ EFB. See the Stratus 3 or 3i documentation/manual for details. Hope this helps!

Thank you for providing this feedback. We will post it for others to reference.

Q: Does this transponder system Appareo Stratus ES come with an altitude encoder?

No, this does not come with an altitude encoder.
