RAMI AV-532L VOR Antenna With Cable
MFR Model# AV-532L
Overview
|

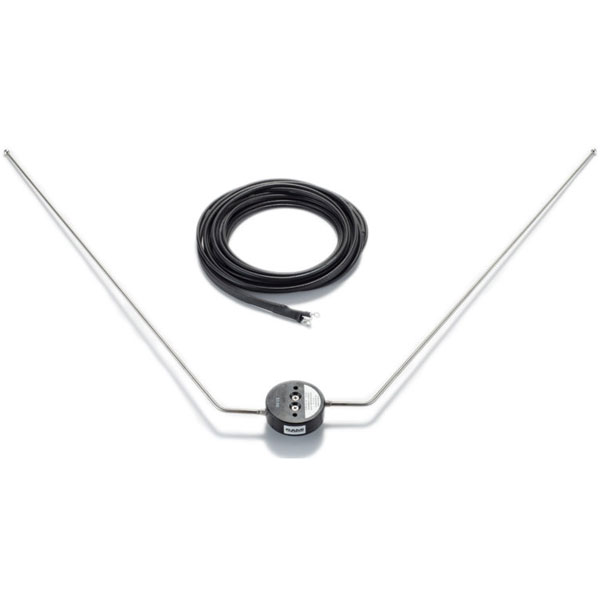

The AV-532 is a VOR/LOC/GS receive only antenna which consists of taper ground high-strength 17-7PH stainless steel elements to reliably withstand vibration and wind loads. The insulators are weather-sealed compression-molded bakelite with the mounting holes provided. The unit may be mounted with the V pointed either forward or aft. The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 3.42 lb @ 250 mph. A 30 ft. transmission line with integral balun is also supplied. |
Specifications
- Application: VOR/LOC/GS (Receive Only)
- Frequency: 108 to 118 MHz, 328-336MHz
- Impedance: 50 Ohms Nominal
- VSWR: 2.0:1 Maximum
- Pattern: Omni-Directional
- Connector: Threaded studs to accept transmission line assembly with integral balun transformer (included)
- Max Weight: 11 oz
- FAA TSO: C40c
- Width Across Tips: 23-1/2"
Documents
- Unit Drawing (PDF)
- Unit Footprint (PDF)
- Installation Instructions (PDF)
Verified Purchase
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Our website has incorrect information. The RAMI website is correct. We are updating our online info now. Thank you for bringing this to our attention.
The cable is 30 feet with threaded studs for the antenna side. The unit side is unterminated.
The G5 cannot connect to this antenna directly.
The COAX being used is RG58.
Yes. This is a TSO'd antenna.
No, this is not a communications antenna. It is a VOR/LOC/GS receive antenna only.
This is a pre-fabricated cable from the manufacturer and only comes in 1 length.
Unfortunately we cannot break down the elements. We want to ship it the safest way and using the mfg formed box to confirm the safety of the part.
