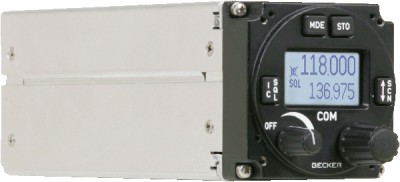

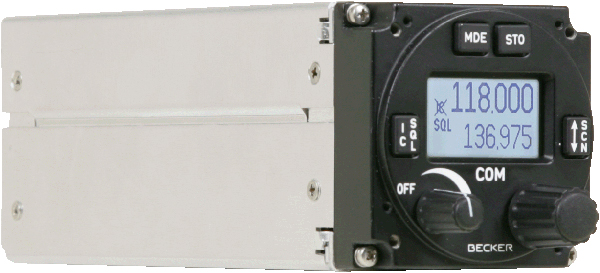

Becker AR 6201 Transceiver
- JUMP TO
- Overview
- Tech Data
- Reviews
- Q&A
- View in Catalog
Overview
|
AR6201 series of square sized VHF transceivers from Becker are a family of affordable airborne radios optimized by their functionalities, state
of the art technology, compact dimensions, and low weight for many different aircraft categories in general aviation, from smaller to larger aircraft. The radios fit in any 2 1/4 inch cut out for easy installation and the different models are equipped with sunlight readable LC displays and high performance transmitters with 6 or 10 watts power output, continous power supply from 10.25 to 33 V DC, 8.33 kHz / 25 kHz channel spacing, sensitive receiver, VOX intercom and many other features.
|
Tech Data
Reviews
Great service and good radio!
Verified Purchase
Becker Ar 6201 COMMRadio 2-1/4 With 25 And 8.33 Spacing
Classic and very effective transceiver. It is always a good choice. Thanks to Spruce for the efficent delivery
Verified Purchase
Becker Ar 6201 COMMRadio 2-1/4 With 25 And 8.33 Spacing
Quality radio for a good price and is TSO spec
Verified Purchase
Becker Ar 6201 COMMRadio 2-1/4 With 25 And 8.33 Spacing
Use for first time in a military airplane installation Super quality Very intuitive use Only check depth available because the small foot print push back in depth space Customer service was immediate
Verified Purchase
Becker Ar 6201 COMMRadio 2-1/4 With 25 And 8.33 Spacing
Super Transceiver! 48 h shipping from US to EU Super packing! Perfect seller!
Verified Purchase
Becker Ar 6201 COMMRadio 2-1/4 With 25 And 8.33 Spacing
Perfect upgrade from AR4201, in my case exchanging the radio was a case of unpluging and repluging the two radios. There are a few pins that are not backwards compatible on the connector - there is a upgrade manual from Becker if one should need to know.
Verified Purchase
Becker Ar 6201 COMMRadio 2-1/4 With 25 And 8.33 Spacing
Great Radio, I would definitely recommend their products
Fast and efficient service
Compact radio with great features and plenty of power at a fait price.
This Becker radio was installed in my brand new Stemme S12G Motor glider and I hate it. Im used the the Trig TY91 radio which is so user friendly. The Becker requires extra steps to put in a frequency, and if there is turbulence it becomes very difficult. My transmissions are okay, but my reception is very poor. In part that may be because the antenna is in the tail. Never-the-less Im going back to Trig for my radio.
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Unfortunately no, the Becker 6401 is the only solution to get 8.33 channel spacing. We do not offer a trade in program.
No, the harness is not included. You will have to order 11-18178.
Per the manual, the Becker AR 6201 Transceiver has ETSO-2C37e and 2C38e and TSO-C169a.
Yes. An Aux input is available and will play through the internal intercom.
The harness is the same. You can use the 4201 harness with the 6201.
Yes, there is a certificate of conformance and EASA Form 1 included.
No, it does not have this feature.
Yes, the radio comes with a connector kit. You can also order 11-18178 which is a premade harness for the radio.
According to the operating instructions on page 23 section 2.5.4 Reception on Preset Frequency in Scan Mode: If the preset frequency detects a signal while no signal is present on the active frequency, the transceiver automatically switches over to the preset frequency.
Part # 11-08550 is 6W.
