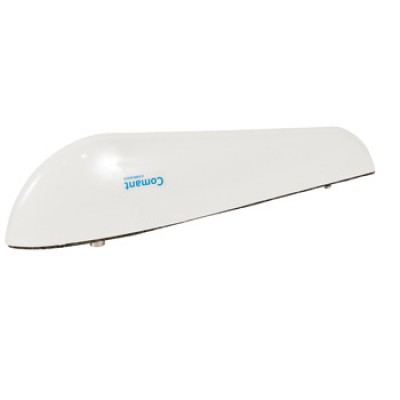

Comant Marker Beacon Antenna CI-102

$248.55/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 11-17931
MFR Model# CI-102

Overview

Frequency 75 MHz Designed for use with the modern, high sensitivity marker beacon receivers. Small and lightweight, featuring 4-hole internal mounting for simple installation. Antenna assembly is enclosed in an injection molded radome which is impervious to the tough environments typical of the underside of an aircraft. Skydrol and rain erosion resistant. DC grounded to minimize accumulation of precipitation static.

Specifications

MODEL CI 102 MARKER BEACON
Electrical
Frequency
75 MHz
VSWR
1.5:1 Maximum / Return Loss
-13.98 dB
Polarization
Parallel to mounting plane
Radiation Pattern

E-Field Parallel with Flight
Direction

Impedance RF
50 Ohms
Resistance DC
DC Grounded
Power RF
Receive Only
Mechanical
Weight
0.6 lb. Maximum
Height
2.15 in. Maximum
Finish
Polyurethane Enamel
Material
Molded Radome
Connector
BNC
Environmental
Temperature
-55¨¬C to +85¨¬C
Altitude
45,000 ft.
Air Speed
400 Knots TAS at 25,000 ft.
Federal Specifications
RTCA Environmental
DO-160A
FAA TSO
C35d
RTCA MOPS
DO-138, DO-143
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Looks good and assume it works

Anthony W
December 5, 2019

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does the gasket come with this or do you have the PN to order separately

Comant no longer includes gaskets with their antennas. Please see part number 09-05579 for sealant recommended by Comant.

Q: part number 09-00532 for sealant recommended by Comant. Doesnt show up in your parts search?

Please see replacement part # 09-05579.
