Comant DME / Transponder CI-105-9

$437.80/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 11-06818
MFR Model# CI-105-9

Overview

Frequency • 960-1220 MHz

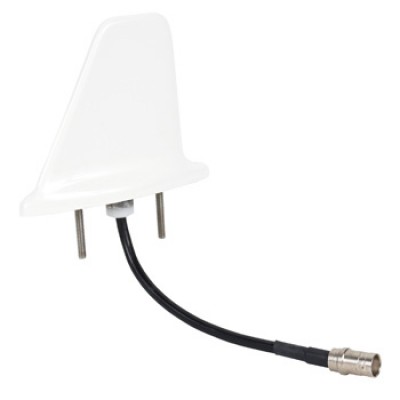

Broadband and rugged antenna designed for DME or tranponder use. Antenna assembly encased in a glass reinforced polyester molded shell.

CI 105-9 comes standard with a 6” extension coax cable and BNC connector. This model offers standard two stud mounting, where the studs are extended to 1 inch in length.

Note: Comant Antennas no longer come with a gasket or template. Must order PN 09-05579 separately.

Specifications

MODEL CI 105-9 DME/ TRANSPONDER
Electrical
Frequency

960 to 1220 MHz

1030 to 1090 MHz

VSWR

1.5:1 960 to 1220 MHz

1.3:1 1030 to 1090 MHz

Polarization

Vertical

Radiation Pattern
Equivalent to 1/4 Stub
Impedance RF
50 Ohms
Resistance DC
Open Circut
Power RF
2.5 KW Peak
Mechanical
Weight
0.24lb. Maximum
Height
3.23 in.
Material
Molded Radome
Finish
Polyurethane Enamel
Environmental
Temperature
-54ºC to +55ºC
Altitude
70,000ft.
Air Speed
400 Knots TAS at 25,000 ft.
Federal Specifications
RTCA Environmental
DO-160C
FAA TSO
C66b, C74c
RTCA MOPS
DO-144, DO-189
