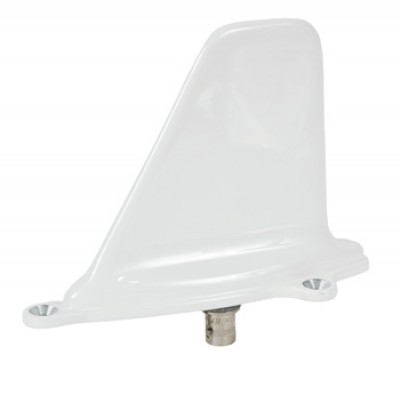

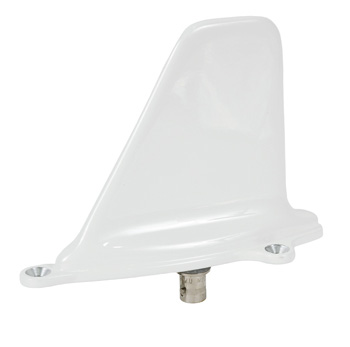

Frequencies Covered Comant CI 105-3 DME/Transponder antenna. Identical to the CI 105 in operating characteristics. Antenna configuration specifically designed for external applications using a three hole flange mounting. Note: Comant Antennas no longer come with a gasket or template. Must order PN 09-05579 separately. Applications |
MODEL CI 105-3 DME/ TRANSPONDER | |
Electrical | |
Frequency | 960 to 1220 MHz |
Polarization | Vertical |
VSWR | 1.5:1 960 to 1220 MHz |
Radiation Pattern | Equivalent of 1/4 wave stub |
Impedance RF | 50 Ohms |
Resistance DC | Open Circuit |
Power RF | 2.5 KW Peak |
Mechanical | |
Weight | 0.24 lbs. Maximum |
Height | 3.31 in. Maximum |
Material | Molded Radome |
Finish | Polyurethane Enamel |
Environmental | |
Temperature | -54°C to +55°C |
Air Speed | 450 Knots TAS at 25,000 ft. |
Altitude | 70,000 ft. |
Federal Specifications | |
RTCA Environmental | DO-160C |
FAA TSO | C66b, C74c |
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Yes, we do carry 09-05579, it is a sealant as they no longer offer a true gasket.
