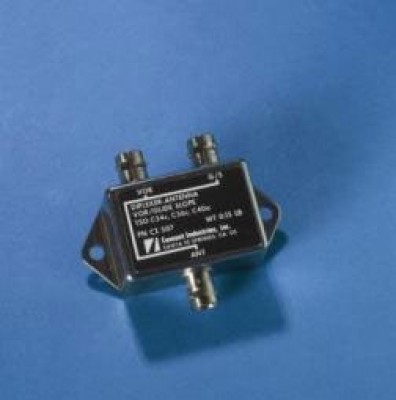

Comant Diplexer VOR/Glide Slope Antenna CI-507

$219.84/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 11-17980
MFR Model# CI-507

Overview

Frequency 329-335 MHz

Single VOR / single glide slope diplexer allows the operation of one VOR and one glide slope receiver from one VOR/glide slope antenna. Compact design makes installation easy.

Specifications

MODEL CI 507 COUPLER VOR
Electrical
Frequency
108-118 and 329-335 MHz
VSWR
1.5:1 Maximum
Insertion Loss
0.5 dB Maximum
Isolation
20 dB Minimum
Impedance RF
50 Ohms
Mechanical
Weight
0.20 lb. Maximum
Height
0.88 in. Maximum
Finish
Aluminum
Material
Die Cast Aluminum
Connector
BNC (Female)
Environmental
Internal Mount
Federal Specifications
FAA TSO
C34c, C36c, C40a
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

A quality product.

William J Verified Purchase

Comant CI-507 1 VOR 1 GS Diplexer

November 19, 2023

Heinz S Verified Purchase

Comant CI-507 1 VOR 1 GS Diplexer

June 8, 2022

This is a necessary item if you have a separate VOR and glide slope antenna to generate a composite navigation signal for navigation radios with a single navigation input.

Bernie N
January 7, 2019

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Im installing a single GNC255 with a single CI-158C vor/loc/gs antenna and a Garmin G5 HSI, will the CI-507 be required ?

The CI-507 is only required if you have separate units that require the operation of one VOR and one glide slope receiver from one VOR/glide slope antenna.
