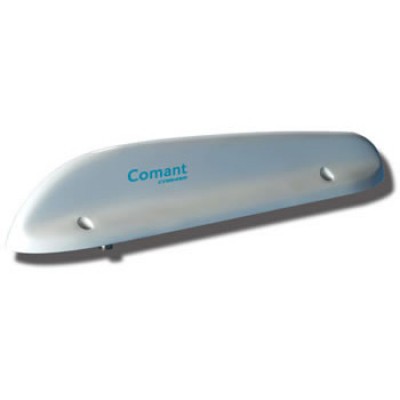

Comant Marker Beacon - CI-118-1

$977.90/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 11-06847
MFR Model# CI-118-1

Overview

Frequency • 75 MHz

Low-drag, lower profile alternative to the popular CI 102 ¡°boat style¡± marker beacon antenna. Approved for medium to high performance single, turbo-prop or jet aircraft and provides simple external mounting. Skydrol and rain erosion resistant. DC grounded to minimize accumulation of precipitation static.

Specifications

MODEL CI 118-1 MARKER BEACON
Electrical
Frequency
75 MHz
VSWR
¡Â 1.5:1 Maximum
Polarization
Parallel to the Mounting Plane
Radiation Pattern

Partially Downward

Impedance
50 Ohms
Resistance DC
DC Grounded
Power RF
Receive Only
Mechanical
Weight
0.5lb. Maximum
Height
2.40 in. Maximum
Material
Molded Radome
Finish
Polyurethane Enamel
Connector
BNC
Environmental
Temperature
-55¨¬C to +85¨¬C
Altitude
45,000 ft.
Air Speed
400 Knots TAS at 25,000 ft.
Federal Specifications
RTCA Environmental
DO-160A
FAA TSO
C35d
RTCA MOPS
DO-138, DO-143
