Radiorax Tray Mount Kits

From $135.00 to $565.25
Prices below incude GST
Description Part Number Price Buy
Radiorax 1010-8 Kit
11-01376
$217.80
Quantity
Radiorax RK1010 Kit
11-01856
$412.50
Quantity
Radiorax RK1020 Kit
11-01858
$413.60
Quantity
Radiorax RK1030 Kit
11-01860
$412.78
Quantity
Radiorax RK2000 Kit
11-01862
$514.14
Quantity
Radiorax RK3000 Kit
11-01864
$621.78
Quantity
Radiorax RP1040-P Single Rail
11-01866
$308.28
Quantity
Radiorax RK1005 Cessna Kit
11-02308
$514.14
Quantity
Radiorax RK1040 Kit
11-02309
$614.90
Quantity
Radiorax RK2010 Kit
11-02608
$514.14
Quantity
Radiorax RK2015 Kit
11-02609
$513.70
Quantity
Radiorax RK2020 Kit
11-02610
$522.50
Quantity
Radiorax RK2025 Kit
11-02611
$514.14
Quantity
Radiorax RK3010 Kit
11-02612
$621.78
Quantity
Radiorax RK3015 Kit
11-02613
$621.78
Quantity
Radiorax RK3020 Kit
11-02614
$621.78
Quantity
Radiorax RK3025 Kit
11-02615
$621.78
Quantity
Radiorax RK4000-12 Kit
11-02616
$291.44
Quantity
Radiorax RK4000-12A Kit
11-02617
$291.50
Quantity
Radiorax RK400 Kit
11-02626
$148.50
Quantity
Subtotal $0.00
Add to Wishlist

Overview

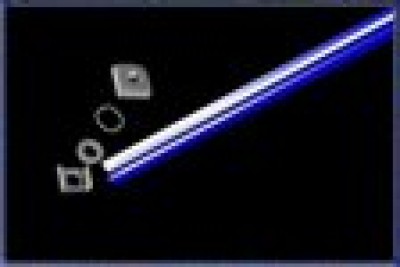

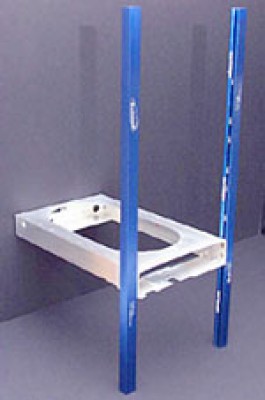

Radiorax provides flexibility & ease of installation for panel mount avionics. The radiorax system consists of anodized slotted rails, stainless nuts, structural strength tray screws that are four times stronger than conventional screws used in aviation, and a stainless capture system that holds each nut where it is needed during assembly. The installer is able to position the nuts in the slot exactly where they are required to install each tray. Once installed, the trays can be easily moved until the screws are fully tightened. Additional nuts can be stored in the slots for future avionics additions. Radiorax has been successfully field approved with STC approval for wide variety of aircraft pending.

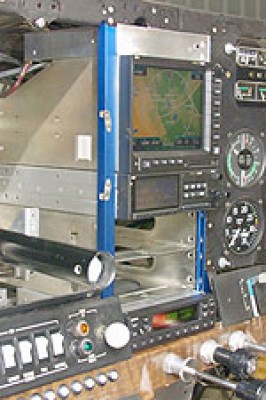

After installing Radiorax, installation and alignment of avionics components becomes simple and precise



Benefits:

• Great Strength - Radiorax is so strong that the 'back strapping' is completely eliminated.

• Ease of Alignment- Once the first tray is attached to the unique Radiorax slotted rail system and leveled, each subsequent tray is simply slid into position and tightened. • Easy Change and Modification - Adding additional avionics, or changing an existing unit is accomplished by merely loosening the screws in the existing trays and re-configuring the stack to the desired new position.
• Cost Effective- The modest cost of the Radiorax system is easily returned in future installation savings.

• Enhanced Quality - Comparison of the Radiorax system with the existing system of avionics mounting quickly reveals substantial quality improvement that Radiorax brings to your aircraft.

• Owner Satisfaction - Knowing you have the finest, safest avionics mounting system available will certainly add to the pride and satisfaction you enjoy with your personal aircraft.

All Radiorax Products
Can Ship Within 24 to 48 Hours!

  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Very happy with the Radiorax kit! Before purchasing, I thought it looked simple, and was pretty expensive for the aluminum channel and a few screws, etc. But the kit is more than that its extremely well thought out and engineered, and is a time-saver as well. Very happy with the kit, and will be using these for all future panels. Peter

Peter P Verified Purchase

Radiorax 1010-8 Kit

January 6, 2022

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: How many radio trays can I put in the RK 1010-8? How many sets of attachment screws are in the kit? I have four (4) trays that will mount in the rack so I need sixteen (16) sets of the connection sets?

PER MFG - The 1010-8 rails are 8" so how many trays depends on the avionics in question. Hardware is supplied for four trays

Q: What is included in the RK400 Kit?

This will come with the rail installation spacers, the screws for the spacers, a hex driver for the screws, and the instructions.

Q: How are the Radiorax Tray Mount Kits attached to the aircraft structure?

Per vendor: the kits include mounting hardware that attaches the rails to the panel with either screws or rivets.
