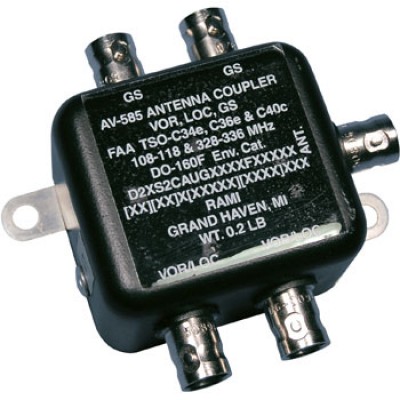

RAMI AV-585 Antenna Diplexer/Splitter

$216.70/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 11-10842
MFR Model# AV-585

Overview

The AV-585 FAA/TSO antenna is a diplexer/splitter providing (2) VOR/ LOC and (2) GS outputs from one VOR/LOC/GC antenna. It is a direct replacement for the CI 1125.

Frequency: 108-118 MHz / 328-336 MHz

Specifications

  • Application: Provides (2) VOR/LOC and (2) GS output ports from (1) VOR/LOC/GS antenna
  • Frequency: 108-118 MHz
  • 328-336 MHz
  • Impedance: 50 Ohms Nominal
  • VSWR: 1.5:1 Maximum
  • Insertion Loss: 3.5 dB Maximum
  • Isolation: 20 dB Min. between VOR & GS
  • 18 dB Min. between VOR Ports
  • 18 dB Min. between GS Ports
  • Connector: "BNC” Female
  • Weight: 0.20 lbs Maximum
  • FAA TSO: C34e, C36e, C40e
  • Color: Gloss Black
