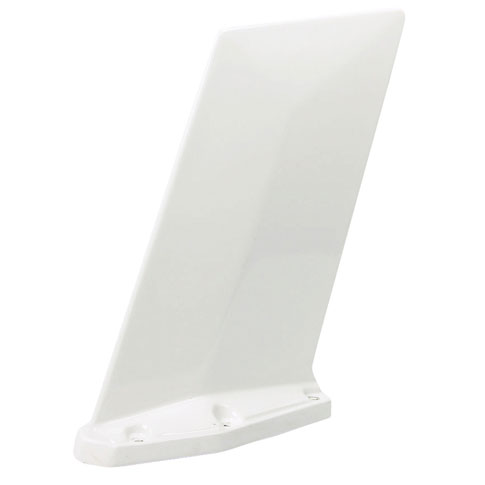

RAMI AV-925 ELT Antenna
$2146.10/Each
Price Includes GST
Part# 11-10846
MFR Model# AV-925
MFR Model# AV-925
Overview
|
The AV-925 antenna was developed to be used with airborne FM transceivers typically used in first responder type aircraft providing a single antenna solution for the multiband transceivers. It has met DO-160G, Section 8, Category U requirements for robust vibration and is qualified for installation on helicopters with unknown related rotor frequencies. It is also qualified to perform as a 406 MHz ELT antenna, and is well suited for this function on higher speed, fixed wing aircraft.
Frequency: 136.0–174.0 MHz (Non TSO Function) 380.0–406.0 MHz (Non TSO Function) 406.0–406.1 MHz (TSO C126a) 406.1–520.0 MHz (Non TSO Function) 760.0–870.0 MHz (Non TSO Function) |
Specifications
- Application: Airborne Communications
- Frequency: 136.0–174.0 MHz (Non TSO Function)
- 380.0–406.0 MHz (Non TSO Function)
- 406.0–406.1 MHz (TSO C126a)
- 406.1–520.0 MHz (Non TSO Function)
- 760.0–870.0 MHz (Non TSO Function)
- Impedance: 50 Ohms Nominal
- Gain: Comparable to that of a quarter wave monopole when mounted on a 4-foot round ground plane
- VSWR: 1.5:1 Max. (406.0–406.1 MHz)
- 3.0:1 Max. (All Other Bands)
- Polarization: Vertical
- Pattern: Omni-Directional
- Weight: 1.8 lbs. Maximum
- RF Power Capacity: 10 Watts VHF, 5 Watts UHF Maximum
- Color: P/N: AV-925 Gloss White
- P/N: AV-925(-1) CARC Black
