RAMI AV-14 Public Service / Business Band Antenna

From $20.50 to $267.95
Prices below incude GST
Description PN Price Buy
RAMI AV-14 PS/BB ANTENNA
11-12600
$294.75
Quantity
RAMI AV-10 AV-14 AV-17 INSTALLATION KIT
11-14059
$22.55
Quantity
Subtotal $0.00
Add to Wishlist

Overview

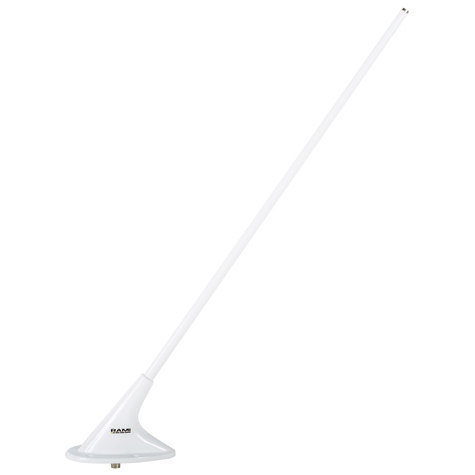

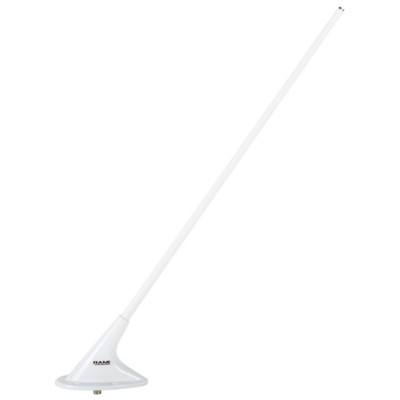

The AV-14 is similar to the AV-10 using the same 4-bolt mounting base except it has a shorter radiating whip element. The antenna is designed to operate in the Public Service and Business Bands 138-174 MHz. The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 2.70 lb @ 250 mph.

Specifications

  • Application: Airborne Communications
  • Frequency: 138 to 174 MHz
  • Impedance: 50 Ohms Nominal
  • VSWR: 2.0 to 1 Maximum
  • Polarization: Vertical
  • Pattern: Omni-Directional
  • Connector: Type "BNC" Female
  • Max Weight: 8 oz
  • Max Height: 17.5"
  • RF Power Capacity: 25 Watts
  • FAA TSO: C37d, C38d
