Aveo DayLite Series™ PosiStrobe 28 VDC

0 Reviews 0 Answered Questions
Select Voltage:
14v28v
Price Includes GST
Quantity
Add to Wishlist

Overview

At only 30 millimeters in height (1.180 inch) the DayLite Series™ PosiStrobe is a value-priced light that does not sacrifice anything in performance or standards as do other economy-priced lights offered by the competition. Our exclusive, highly advanced optics and chrome reflector system, our unmatched power and led management circuitry, and our famous lowest-drag profile in the industry are all combined into a product that gives you unmatched POWER and FEATURES. Lower, narrower and shorter PLUS much lighter than industry lights in this category!

Note: NOT APPROVED FOR INSTALLATION ON CERTIFIED AIRCRAFT THIS IS NOT A TSO CERTIFIED LIGHT

Specifications

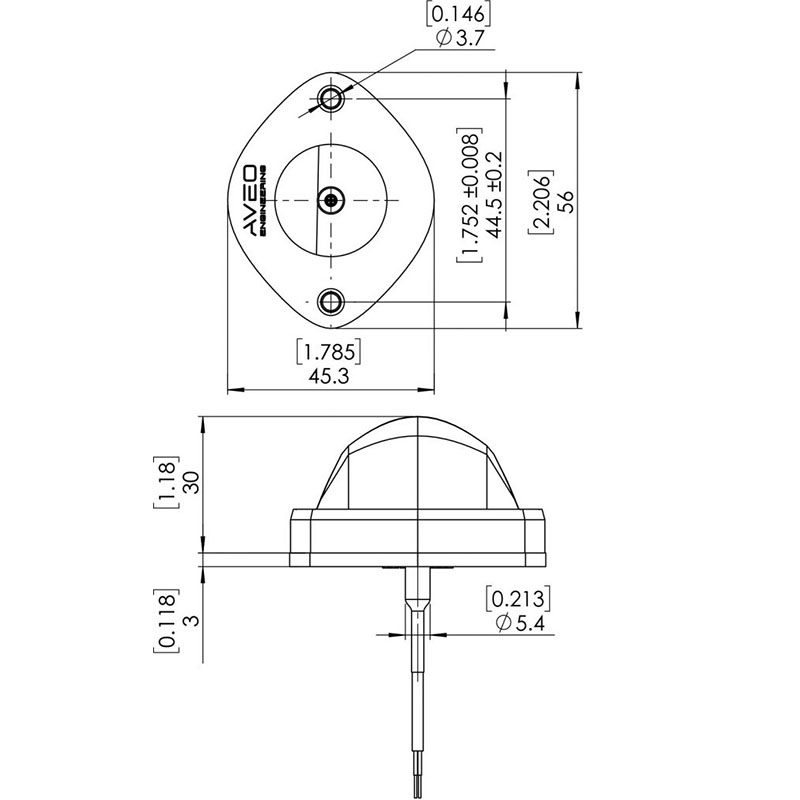

Dimensions (mm):
45.3 mm x 56 mm x 30 mm

Dimensions (inches):
1.785“ x 2.206“ x 1.18“

Weight (g):
67 g

Weight (oz):
2.363 oz

Operating Voltage Range:
9 – 18 VDC

Input Current – Position:
0.31 A @14V

Input Current – Strobe:
3.85 A @14V (peak)

Average Current Consumption per Frame – Strobe:
0.64 A

Average Current Consumption per Frame – Pos and Strobe:
0.95 A

Input Power - Position:
4.3 W @14V

Input Power - Strobe:
54 W @14V (peak)

Repetition Rate of Strobe:
48 cycles per minute

Fuse (Circuit Breaker) Recommendation:
5A for position
   5A for strobe

Recommended size of mounting screw:
M3, #6-32

Ambient Temperature:
from -55°C to +85°C
   from -55°F to +185°F

Overheat Protection:
Yes (+85°C / +185°F)

Reverse Polarity Protection:
Yes

Transient Voltage:
60V at 2sec max, both polarities

Under-Voltage Protection (lockout):
Yes (9V)

Over-Voltage Protection (lockout):
Yes (18V)

Waterproof, Dust-proof, Vibration-proof:
Yes

Documents
