Arinc 646 CAT 5 Data Bus Cable

$7.15/Foot
Price Includes GST
Quantity
Add to Wishlist
Part# 11-18304
MFR Model# 392404

Overview

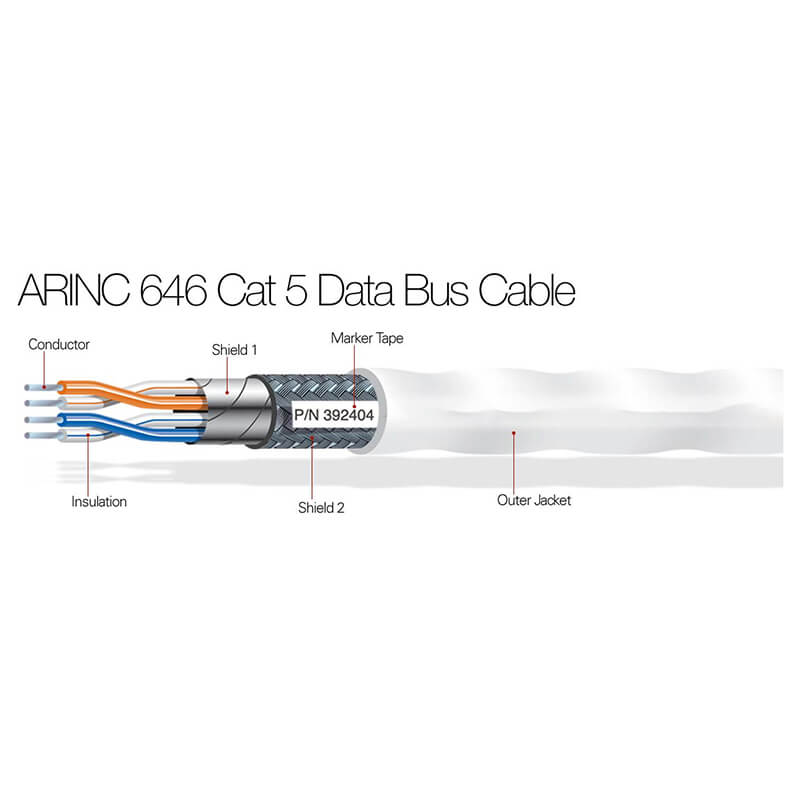

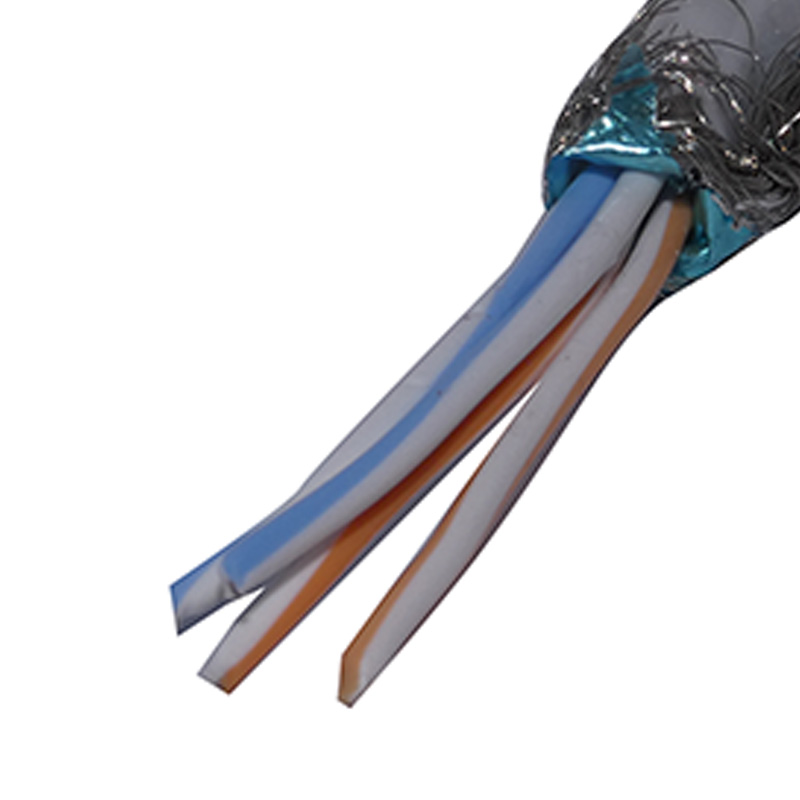

Carlisle ARINC 646 Cat 5 Data Bus Cable.
    Applications
  • ARINC 646, Cat 5, LAN, 10 Base T
    4 Conductors
      2 Twisted Pairs
    • Conductors: 24 AWG tin plated copper
    • Insulation: High temperature flouropolymer
      Color Code:
    • Pair 1: White/Blue Blue/White
    • Pair 2: White/Orange Orange/White
      Overall Cable:
    • Shield 1: Aluminum/Mylar foil
    • Shield 2: 38 AWG tin plated copper braid
    • Jacket: White high temperature flouropolymer (laser markable)
      Physical Characteristics
    • Outer Diameter: 0.234 inches nominal
    • Bend Radius: 1.2 inches nominal
    • Weight: 3.0 lbs/100 feet nominal
    • Temperature Range: -55° to +200° C
    • Skydrol Resistant: Yes
      Electrical Characteristics (each pair)
    • Impedance: 100 Ohms nominal
    • Capacitance: 12.4 pF/ft maximum
    • Velocity of Propogation: 78% nominal
    • Skew: 12.8 ns/100 ft BUS
    • Attenuation: 10 MHz 2.1 dB/100 ft nominal
