Aveo Ultra Daylite™ 3-In-1 Navigation / Position / Strobe LED Light
MFR Model# AVE-WPSTR/G-64T
Overview
|
At only 34 millimeters in height (1.34 inches) the new DayLite Series™ Ultra DayLite is an economical light with no sacrifices in performance or standards like other economy-priced lights offered by the competition.
Aveo’s exclusive and highly advanced optics and chrome reflector system, its unmatched power and led management circuitry, and its famous lowest-drag profile in the industry are all combined into a product that gives you unmatched POWER and FEATURES.
Just what you want -- Lower, narrower and shorter PLUS much lighter than industry lights in this category! NOT APPROVED FOR INSTALLATION ON CERTIFIED AIRCRAFT THIS IS NOT A TSO CERTIFIED LIGHT  |
Features
- 3-in-1 Navigation/Position/Strobe
- Lower, narrow, and shorter than other industry lights
- Lightweight at 127 grams
- 9-36 volt DC input range
- Unmatched circuit technology
- Limited Warranty - Product must be registered within 30 days of purchase Here
Specifications

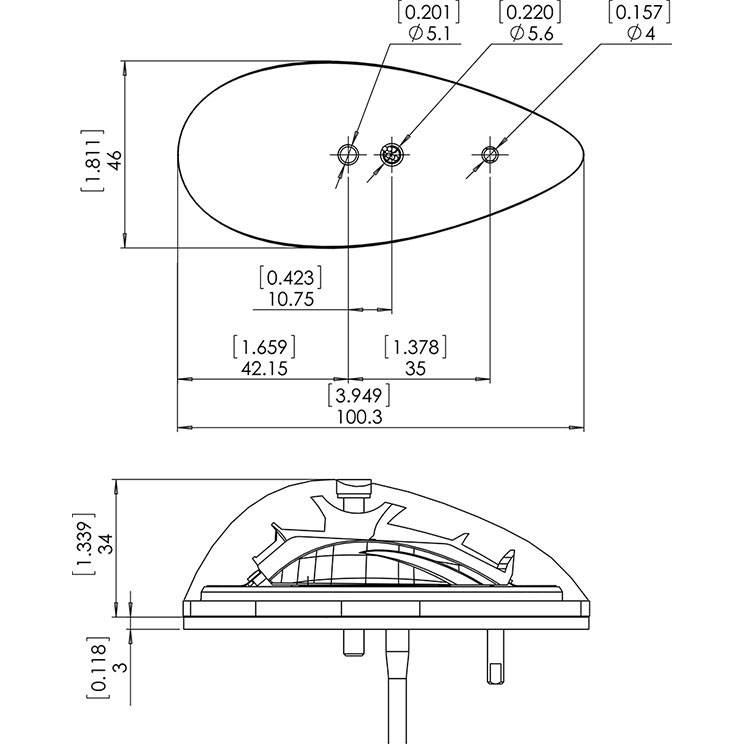

| Dimensions (mm): | 100 mm x 46.2 mm x 34.1 mm |
|---|---|
| Dimensions (inches): | 3.94“ x 1.819“ x 1.34“ |
| Weight: | 103 g / 3.63 oz |
| Operating Voltage Range: | 9 – 36 VDC |
| Input Power P/N: AVE-WPSTG-64T Mod(4) Nav Green / Rear White Position: | 9 V / 0.56 A : 5.0 W 14 V / 0.36 A : 5.1 W 28 V / 0.19 A : 5.4 W 36 V / 0.15 A : 5.5 W |
| Input Power P/N: AVE-WPSTG-64T Mod(4) Strobe: | 9 V / 6.33 A : 57.0 W 14 V / 2.92 A : 40.9 W 28 V / 1.36 A : 38.1 W 36 V / 1.06 A : 38.2 W |
| Input Power P/N: AVE-WPSTR-64T Mod(4) Nav Red / Rear White Position: | 9 V / 0.55 A : 4.9 W 14 V / 0.36 A : 5.0 W 28 V / 0.19 A : 5.3 W 36 V / 0.16 A : 5.6 W |
| Input Power P/N: AVE-WPSTR-64T Mod(4) Strobe: | 9 V / 6.49 A : 58.4 W 14 V / 2.97 A : 41.6 W 28 V / 1.38 A : 38.5 W 36 V / 1.07 A : 38.5 W |
| Repetition Rate of Strobe: | 50 cycles per minute |

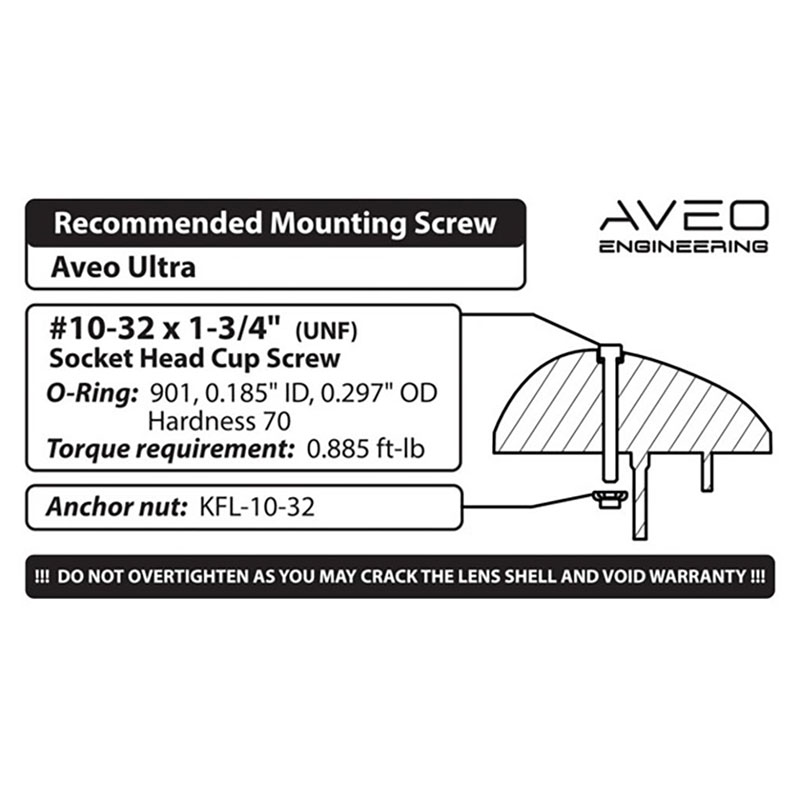

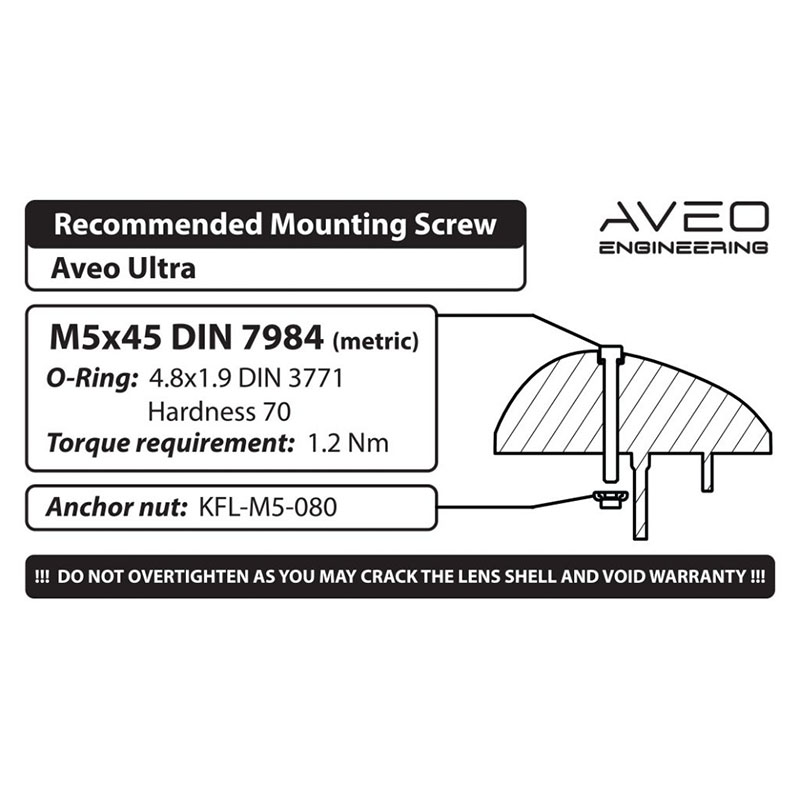

| Recommended mounting screw: | See pictures in section Drawing |
| Torque requirement for screw M5x45mm: | 1.2 Nm |
| Ambient Temperature: | from -55°C to +85°C from -55°F to +185°F |
| Overheat Protection: | Yes (+85°C / +185°F) |
| Reverse Polarity Protection: | Yes |
| Transient Voltage: | 80V at 2sec max, both polarities |
| Under-Voltage Protection (lockout): | Yes (9V) |
| Over-Voltage Protection (lockout): | Yes (36V) |
| Waterproof, Dust-proof, Shock-proof, Vibration-proof: | Yes |
Documents
Reviews
Recently installed and so far, so good! Lights are definitely quality items and the intensity is awesome. As long as they work for a number of years, Im happy with the purchase!
Verified Purchase
Aveo Ultra Daylite Navigation Position Strobe LED Light
Super bright!!! Easy installation.
Verified Purchase
Aveo Ultra Daylite Navigation Position Strobe LED Light
Verified Purchase
Aveo Ultra Daylite Navigation Position Strobe LED Light
Verified Purchase
Aveo Ultra Daylite Navigation Position Strobe LED Light
Surprisingly bright, quality package.
Verified Purchase
Aveo Ultra Daylite Navigation Position Strobe LED Light
This product was basically a plug and play after removing the strobe power supply. Screws were 1/2 smaller then needed but Ace Hardware 10-24 2 long screws with lock nut did the job. Light is nice and bright. Great replacement on my Mooney. Very pleased.
I bought a pair of Aveo Ultra Aurora 5 years ago. I just loved them, they were bright and just worked great until recently. I was really disappointed and finally resigned myself to take them off my aircraft and send them in to Aveo to see if they could be repaired. Well it turned out that they could not be repaired so they sent a brand-new replacement pair, free of charge! I was so impress with their service, I bought a RedBaronMaxiMini and an Atlas Landing Light on the spot. Great service from Damien, fast turn around. I highly recommend Aveo.
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
These are priced and sold in pairs.
Per Aveo: Please refer to 14 CFR 91.319.
The strobe input current requirements are per light/strobe, not total for the pair.
The only difference between the two is that the Ultra Galactica is certified and the Ultra Daylite is not. They both share the same specs according to Aveo's data sheets.
Per the specsheet from the manufacturer, you can wire the lights to sync with each other.
Per Aveo: That depends.... I recommend using shielded wire because of all the updates in electronics that are being added to aircraft, and an ounce of prevention is worth a pound of cure.... he might be able to have an excellent ground and not have any issues, but electrical current can be unpredictable and find it wants to wreck havoc.... that being said, most Aveo light installations are fine with just a really good ground close to the light..... but if it were my plane, I would use shielded....
Because each installation has individual needs, no screws or bolts are included. Please see recommended hardware diagrams above for reference.
Per Aveo. "Aveo lights produce more than enough intensity to meet brightness requirements, but meeting FARs depends on placement on the aircraft over which only the purchaser has control. It is up to the purchaser to meet the coverage requirements by where and how the lights are installed."
Not a wiring harness, per se, but the leads from the base of the lights are ten inches long.
No, this light is intended for use in experimental aircraft only. Not for use in certified production aircraft.
