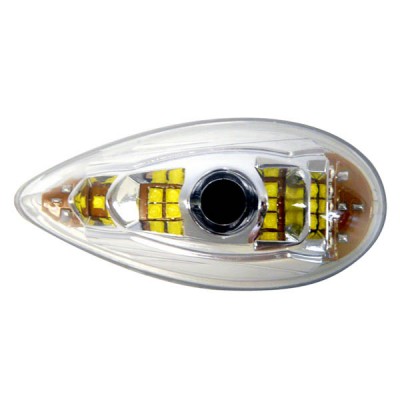

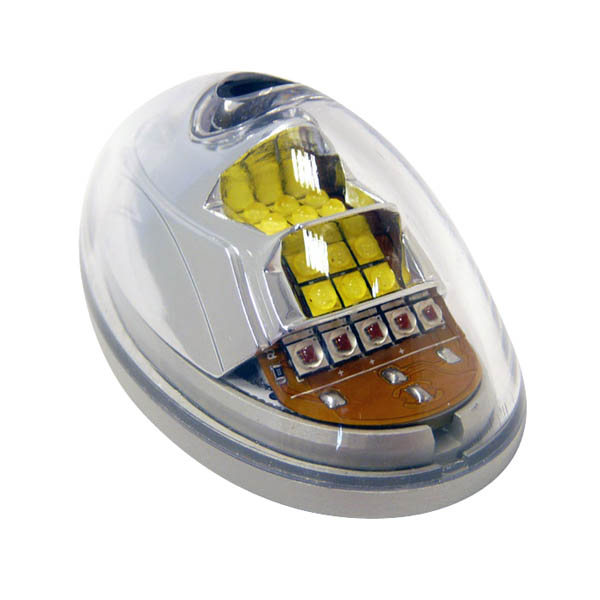

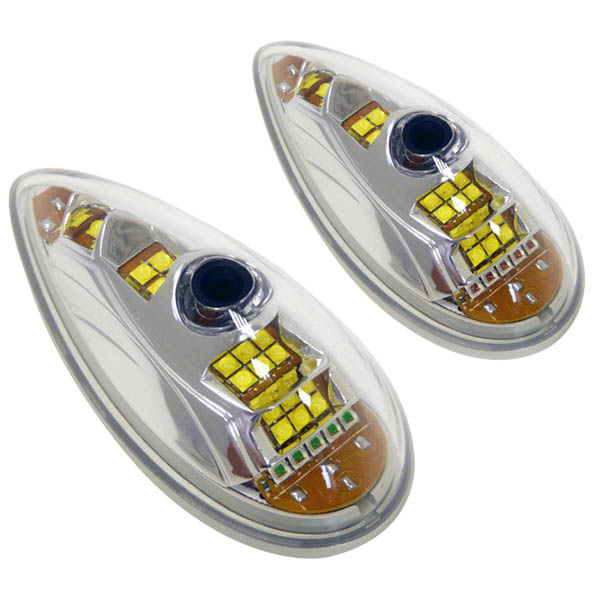

Aveo Ultra Embedded Daylite™ Wingtip 2-In-1 LED Lights Navigation / Strobe

$918.50/Pair
Price Includes GST
Quantity
Add to Wishlist
Part# 11-15068
MFR Model# AVE-WPSR/G-64T MOD(4)

Overview

The Ultra Embedded Daylite™ is only 34 millimeters in height (1.34 inches), but does not sacrifice performance or standards. With exclusive advanced optics and chrome reflector system, unmatched power and led management circuity, and the lowest-drag profile in the industry. The Ultra Embedded Daylite™ gives unmatched power and features, while being lower, narrower, shorter, and lighter than the competition.

For Experimental Use Only.
nav position

Features

  • Navigation/Strobe LED Light
  • Lower, narrow, and shorter than other industry lights
  • Lightweight at 127 grams
  • 9-36 volt DC input range
  • Unmatched circuit technology
  • Limited Warranty - Product must be registered within 30 days of purchase Here

Specifications

  • Dimensions (mm): 100.3 mm x 46 mm x 34 mm
  • Dimensions (inches): 3.949" x 1.814" x 1.34"
  • Weight (g): 127 g
  • Weight (oz): 4.48 oz
  • Operating Voltage Range: 9 – 36 VDC
  • Input Current – Nav – green: 0.22A @28V, 0.44A @14V, 0.73A @9V
  • Input Current – Nav – red: 0.17A @28V, 0.31A @14V, 0.5A @9V
  • Input Current – Strobe: 1.25A @28V, 2.1A @14V, 2.4A @9V
  • Output Power – Nav – green: 5.6 W
  • Output Power – Nav – red: 3.3 W
  • Output Power – Strobe: 21.4 W (@9-18 VDC)
  • 32.1 W (@18-36 VDC)
  • Repetition Rate of Strobe: 50 cycles per minute
  • Ambient Temperature: from -55°C to +85°C
  • from -67°F to +185°F
  • Overheat Protection: YES (+85°C)
  • Recommended size of mounting screw: M4
  • Reverse Polarity Protection: YES
  • Transient Voltage: 80V at 2sec max, both polarities
  • Under-Voltage Protection (lockout): YES (9V)
  • Over-Voltage Protection (lockout): YES (36V)
  • Waterproof, Dust-proof, Shock-proof, Vibration-proof: YES
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

The units themselves are nicely constructed and appear high quality. The mounting hardware uses an M5 socket head cap screw (supplied) of unknown thread pitch. You must use the cap screw supplied per the manufacturers installation instructions as it contains an integral O-ring seal. Unfortunately, they do not supply the required nut. As this is a metric thread pitch, none of your AN hardware will fit it. They do not tell you if your bolt is M5-0.5 or M5-0.8, you get to guess at the hardware store. I ordered stainless nuts so I dont yet know if I guessed correctly. A pity. For the asking price, two nuts to finish the installation does not seem too much to expect.

Charlie S
May 11, 2022

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Do these Aveo Ultra Embedded Daylite LED lights require the use of a transformer? Most wingtip lights require some type of transformer

No. They do not, since they are LED they just require ship's power.

Q: Do these lights have a solid white position light? I had the Mod (4) and they only had strobe and Navigation. Does the Mod (3) have the solid white position?

No, you will need part # 11-15067 for for Nav,strobe and position.
