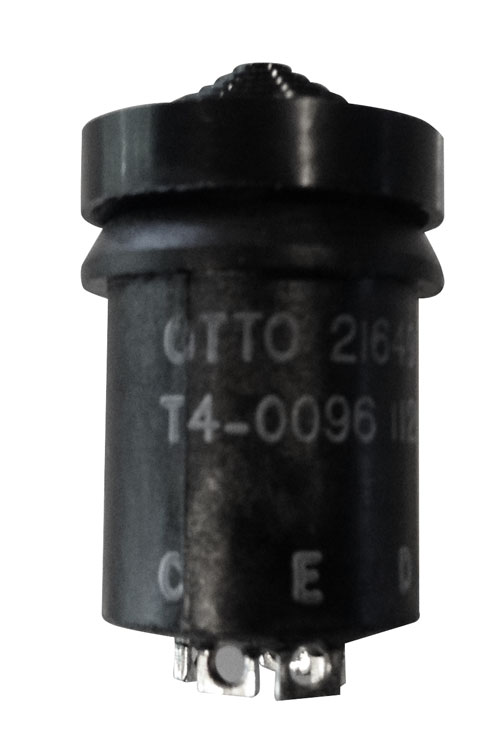

Cag Cooley Hat 4 Way Trim Switch

$109.73/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 11-14198
MFR Model# T4-0096

Overview

Cooley Hat 4 Way Trim Switch.

Reviews

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the diameter of this switch?

The switch diameter is 0.60 inches.

Q: What is the dept of the CAG COOLEY HAT 4 WAY TRIM SWITCH?

Depth from the top of the button to the base (excluding the terminals) is approx 1-1/8".

Q: What size hole is required to mount this switch?

The switch OD is .600.

Q: what is the current rating for the contacts?

Single pole, 4 throw, center off momentary contact (self return to center off)
Rating: 1 amp inductive at 28 vdc for 100,000 cycles
Overload: 2 amp inductive at 28 vdc for 100 cycles
Dwv: 1050 vrms
