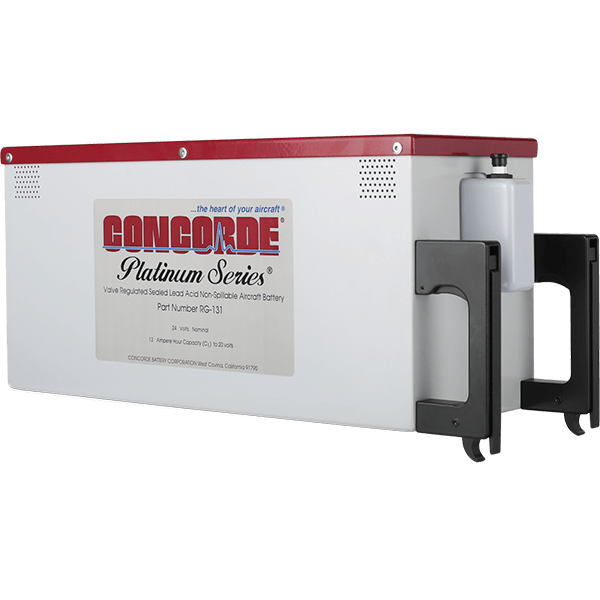

Concorde Sealed Battery RG-131
$6606.60/Each
Price Includes GST
Part# 11-13436
MFR Model# RG-131
MFR Model# RG-131
Overview
|
The RG-131 is a Concorde Platinum Series Aircraft Battery. The Platinum Series is comprised of premium hand made AGM Aircraft Batteries with excess power for many applications. The RG-131 is an ARINC rack mountable aircraft battery. Test Temperature @ 23°C (74°F) = C1 is 12.0 Ah Test Temperature @ -18°C (0°F) = C1 is 6.5 Ah Test Temperature @ -30°C (-22°F) = C1 is 4.0 Ah Avionics Battery`s for lighting, standby, emergency power. Protects and extends the life of other avionics. Concorde Emergency Batteries float directly on the DC buss with no need for a dedicated charger. This results in a high inrush current which extends battery life with fast recovery time from discharge. With the battery floating directly on the buss, transient spikes in the DC power are absorbed. These batteries are self regulating on charge and will take only the current required to maintain it at full charge. Recombinant Gas - The RG® Series are low resistance, valve regulated lead acid (VRLA) batteries.
|
Features
- Maintenance free
- Constructed with non removable vent valves - no addition of electrolyte or water required
- Aerobatic: Non spillable at any altitude or attitude
- Factory tested to assure airworthiness
- Shipped fully charged and ready to install
- Manufactured with absorbed glass mat separators (AGM)
- RG® Series batteries ship non-HAZMAT

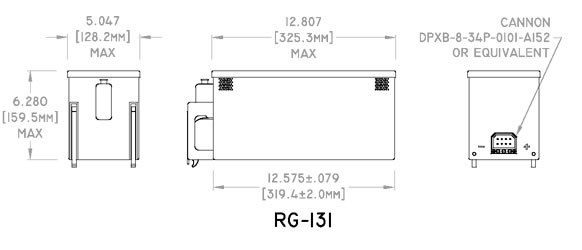

- 1/2 ATR Short, Rack Mountable
- MS3320 20AH Circuit Breaker

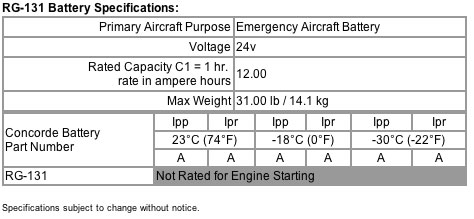

Specifications
Documents
Reference Chart
