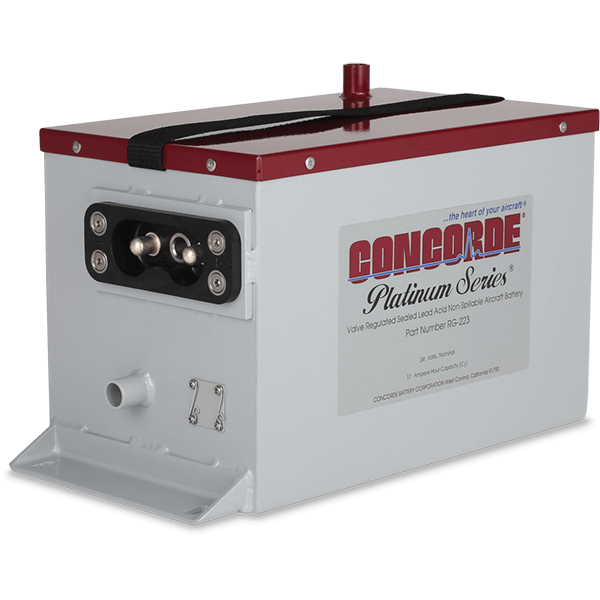

Concorde RG-223 Aircraft Battery

$4506.70/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 11-11702
MFR Model# RG-223

Overview

The RG-223 is a Concorde Platinum Series Aircraft Battery. The Platinum Series is comprised of premium hand made AGM Aircraft Batteries with excess power for many applications.
Recombinant Gas - The RGŪ Series are low resistance, valve regulated lead acid (VRLA) batteries.
  • Superior starting power
  • Reliable essential power in the event of a generator failure
  • Maintenance free
  • Constructed with non removable vent valves - no addition of electrolyte or water required
  • Aerobatic: Non spillable at any altitude or attitude
  • Factory tested to assure airworthiness
  • Manufactured with absorbed glass mat separators (AGM)
TSO-C173 Authorized battery in a powder coated aluminum container equipped with a temp sensor mounting pad and built in vent tube. Powder coated cover is equipped with a top vent tube and lifting strap.

Specifications

  • Primary Aircraft Purpose: Helicopter and Turbine Aircraft Battery
  • Voltage: 24v
  • Rated Capacity C1 = 1 hr. rate in ampere hours: 17.00
  • Max Weight: 43.00 lb / 19.5 kg
