Universal FS 4400 Strobe
Overview

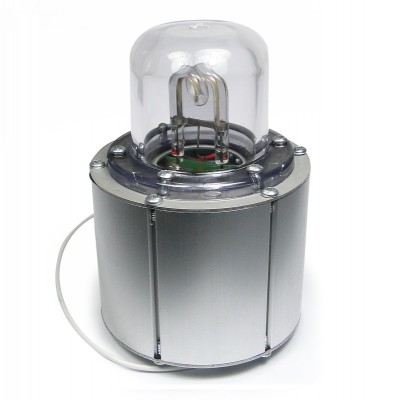

| This precision compact unit mounts easily on top or below fuselage, and directly replaces rotating beacons. It features a high-intensity Xenon arc lamp, a high-efficiency push pull inverter circuit for stable flash voltage and a flame-resistant military circuit board assembly. The lamp is readily replaceable without removing the unit from the aircraft, and the unit weighs only 1lb. 4oz. the flight strobe FS-4400 is visible for over 50 miles at night, in haze, smog or bright sunlight and is manufactured using the highest quality components for maximum reliability and service life. Amp draw 3 Amp. (14V) & 1.5 Amp (28V). STC'D for Cessna 180. FAA form 337 for field approval is required for installation of other certified aircraft. Order adapter separately. |
Documents
Reviews
Installing was simple and works great.
Verified Purchase
Fs-4400 Flight Strobe 14Volt
Nice unit, need to do a 337 form
Verified Purchase
Fs-4400 Flight Strobe 14Volt
Verified Purchase
Fs-4400 Flight Strobe 14Volt
Strobe replaced Sky Strobe. Works as advertised.
Verified Purchase
Fs-4400 Flight Strobe 14Volt
Works well. Simple to hook up. Power and ground it.
Verified Purchase
Fs-4400 Flight Strobe 14Volt
Works as expected. Thanks
Verified Purchase
Fs-4400 Flight Strobe 14Volt
Strobe assembly is very high quality. Installation was an easy replacement of my previous strobe.
Verified Purchase
Fs-4400 Flight Strobe 14Volt
Along with the adapter, the installation was a direct swap.
quality product. perfect hole pattern.
Installed the unit via field approval. This light is probably the best value around. I keep the light on all the time. About 1500 hours of usage or a bit more. strongly recommended, the new LED lights are great too, but this old school traditional light is simply reliable and works. Only one wire hook up if you have a metal airplane, the skin is the ground. Easy and cool.
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The FS 4400 comes stock with a clear lens only. Red/White or Red lens replacements or only available seperately.
FS-4400 FLIGHT STROBE flashes on/off. We set the flash rate at about 50/minute.
The mounting case for the FS 4400 has a diameter of 3.75"
Yes, the bulb is included with the FS 4400.
No, there is no mounting bracket included. An adapter must be purchased separately for a belly installation, it can be found under part # 11-06500. We have added the PDF of the installation instructions and the STC to the Documents tab of this web page for your review.

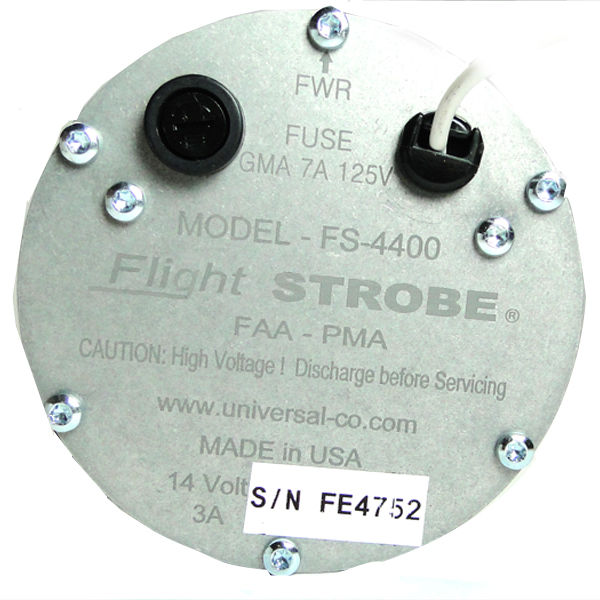

We have added the photo of the bottom of the unit to show the wire.
It is self contained. Its for a 14volt system which is basically the same as a 12volt. The system usually operates at around 12volts but can peak/spike up to 14volts so it is referred to as 14v system.
Overall height=5.25" | Diameter of base= 3.75" | Lens height= 2.5" | Lens diameter= 2.25"
Yes, this should fit that aircraft. Form 337 field approval will be required.
The manufacturer does not have a cross reference to that Cessna number.
