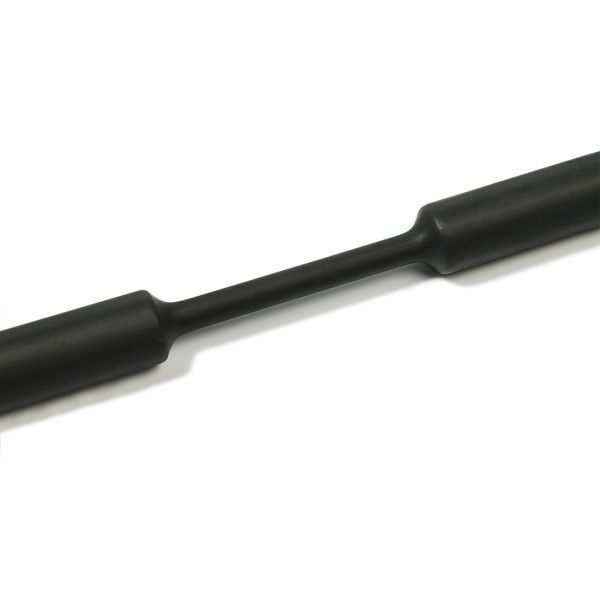

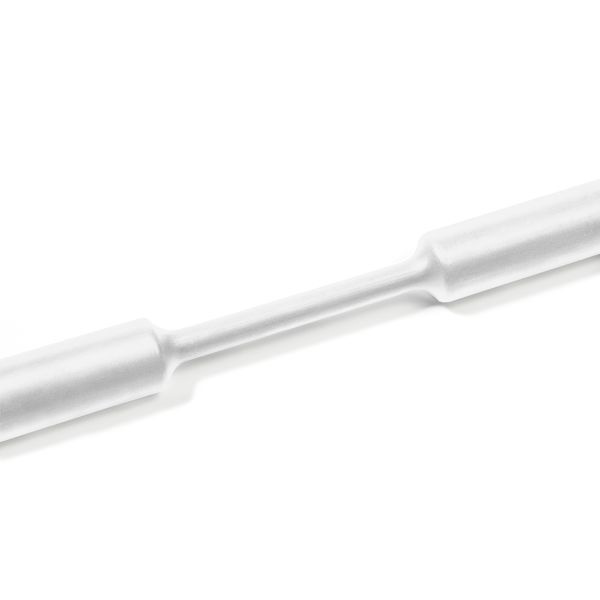

Tyton Heat Shrink Tubing - By The Foot
| OEM PN | Description | Diameter | Color | Part Number | Price Per Foot | Buy |
|---|---|---|---|---|---|---|
| 309-60108 | Heat Shrink Tubing, Mini Reel, 2:1 Shrink Ratio | 1/16" | Black | 11-16689 | $0.47 | |
| 309-60307 | Heat Shrink Tubing, Mini Reel, 2:1 Shrink Ratio | 1/2" | White | 11-16690 | $0.61 | |
| 309-60299 | Heat Shrink Tubing, Mini Reel, 2:1 Shrink Ratio | 1/4" | White | 11-16691 | $0.55 | |
| 309-60291 | Heat Shrink Tubing, Mini Reel, 2:1 Shrink Ratio | 1/8" | White | 11-16692 | $0.44 | |
| 309-60303 | Heat Shrink Tubing, Mini Reel, 2:1 Shrink Ratio | 3/8" | White | 11-16693 | $0.61 | |
| 309-60282 | Heat Shrink Tubing, Mini Reel, 2:1 Shrink Ratio | 1/16" | White | 11-16694 | $0.22 | |
| 309-65112 | Heat Shrink Tubing, Mini Reel, 2:1 Shrink Ratio | 3/32" | Black | 11-16695 | $0.44 | |
| 309-60290 | Heat Shrink Tubing, Mini Reel, 2:1 Shrink Ratio | 1/8" | Black | 11-16696 | $0.44 | |
| 309-60298 | Heat Shrink Tubing, Mini Reel, 2:1 Shrink Ratio | 1/4" | Black | 11-16697 | $0.72 | |
| 309-60302 | Heat Shrink Tubing, Mini Reel, 2:1 Shrink Ratio | 3/8" | Black | 11-16698 | $0.72 | |
| 309-60306 | Heat Shrink Tubing, Mini Reel, 2:1 Shrink Ratio | 1/2" | Black | 11-16699 | $0.72 | |
| 309-60311 | Heat Shrink Tubing, Mini Reel, 2:1 Shrink Ratio | 3/4" | Black | 11-16700 | $1.04 | |
| 309-60315 | Heat Shrink Tubing, Mini Reel, 2:1 Shrink Ratio | 1" | Black | 11-16701 | $1.21 |
Overview
| TFN21 is a highly flexible thin wall heat shrink tubing with a 2 to 1 shrink ratio and excellent flame retardant properties. In addition to providing insulation and abrasion protection for wires and cables, the polyolefin material also offers resistance to oils, solvents and chemicals. |
Features
- Thin, 2 to 1 shrink ratio tubing provides insulation and abrasion protection for wires and cables.
- Flammability rating of UL224 VW-1 for use in applications requiring the highest degree of flame protection (excludes clear tubing).
- Flexible-yet-durable material resists most common oils, chemicals and fluids.
- Available in a variety of diameters and colors for identifying and marking wires and cables.
Documents
- 309-60108 Drawing
- 309-60108 Specifications Sheet
- 309-60307 Drawing
- 309-60307 Specifications Sheet
- 309-60299 Drawing
- 309-60299 Specifications Sheet
- 309-60291 Drawing
- 309-60291 Specifications Sheet
- 309-60303 Drawing
- 309-60303 Specifications Sheet
- 309-60282 Drawing
- 309-60282 Specifications Sheet
- 309-65112 Drawing
- 309-65112 Specifications Sheet
- 309-60290 Drawing
- 309-60290 Specifications Sheet
- 309-60298 Drawing
- 309-60298 Specifications Sheet
- 309-60302 Drawing
- 309-60302 Specifications Sheet
- 309-60306 Drawing
- 309-60306 Specifications Sheet
- 309-60311 Drawing
- 309-60311 Specifications Sheet
- 309-60315 Drawing
- 309-60315 Specifications Sheet
Reviews
Verified Purchase
Heat Shrink Tube 1/16 Black 2:1 Ratio
Works as advertised. Shrinks with a hobby heat gun.
Verified Purchase
Heat Shrink Tube 1/4 White 2:1 Ratio
Works as advertised. Shrinks with a hobby heat gun.
Verified Purchase
Heat Shrink Tube 1/2 White 2:1 Ratio
Works as advertised. Shrinks with a hobby heat gun.
Verified Purchase
Heat Shrink Tube 1/8 White 2:1 Ratio
Works as advertised. Shrinks with a hobby heat gun.
Verified Purchase
Heat Shrink Tube 1/16 White 2:1 Ratio
Works as advertised. Shrinks with a hobby heat gun.
Verified Purchase
Heat Shrink Tube 3/8 White 2:1 Ratio
Five star
Verified Purchase
Heat Shrink Tube 1/4 Black 2:1 Ratio
Five star
Verified Purchase
Heat Shrink Tube 1/4 White 2:1 Ratio
