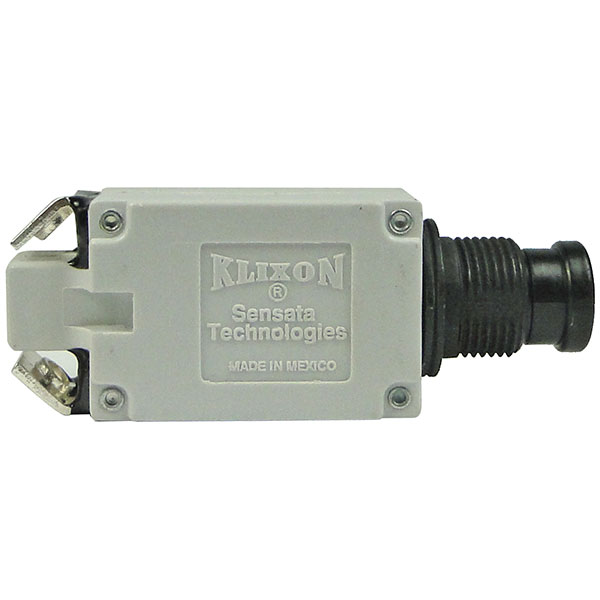

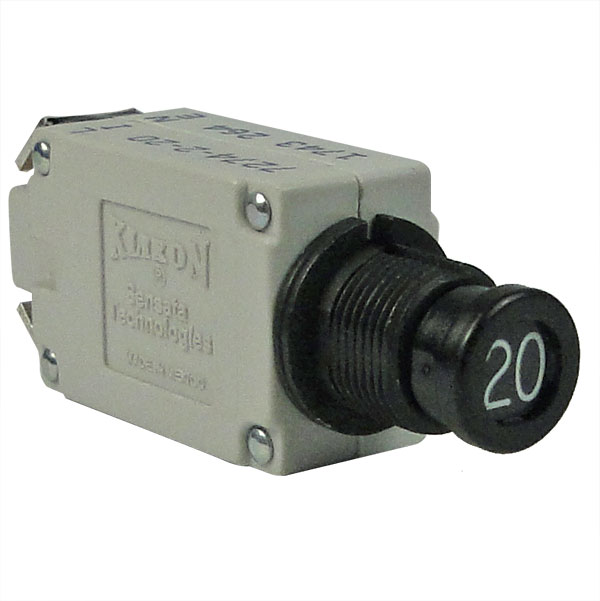

7274-2-20 Circuit Breakers

$30.25/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 11-08362
MFR Model# 7274-2-20

Overview

7274 series are small, lightweight, low amperage devices that are specifically designed to protect aircraft/aerospace cable and components in airborne vehicles and equipment.

Trip–Free

The 7274 features a trip–free, indicating reset button and is available in standard ratings from ˝ to 20 amps.

Wiping Action
A "wiping action" contact design assures low voltage drop, faster trip time and high reliability in low voltage applications. They are available in standard ratings from ˝ to 20 amps.

Water Resistant Panel
A water resistant panel seal designed to fit over the push button actuator is available for applications that require this type of protection.


Features

  • Uses minimum space
  • Light weight
  • Trip–free
  • MIL-C-5809 qualified
  • Current rating: 20 amp
  • Low amp
  • High vibration resistance
  • Typical use: Military airborne vehicle and equipment protection

Specifications

  • Amp: 20
  • MS#: MS26574-20
  • Vibration: 10G minimum, 50–500 Hz (other vibration levels available)
  • Mechanical Shock: 35G
  • Acceleration: 10G
  • Weight: 7274-2 (MS 26574): 28 grams maximum; 7274-4 (MS 26574 A): 28 grams maximum; 7274-11 (MS 22073): 33 grams maximum; 7274-69 (MS 22073V): 33 grams; 7274-70 (MS 26474L): 33 grams
  • Interrupt Current: 0.50–5 amps: unlimited at 28 VDC; 7.50–15 amps: 2,000 amps at 28 VDC; 0.50–1.50 amps: unlimited at 120 VAC, 400 Hz; 2–5 amps: 800 amps at 120 VAC, 400 Hz; 7.50–20 amps: 500 amps at 120 VAC, 400 Hz
  • Endurance: 2,500 cycles: 120 VAC, 400 Hz inductive; 5,000 cycles: 120 VAC, 400 Hz resistive; 2,500 cycles: 30 VDC inductive; 5,000 cycles: 30 VDC resistive; 10,000 cycles: Mechanical, no load
