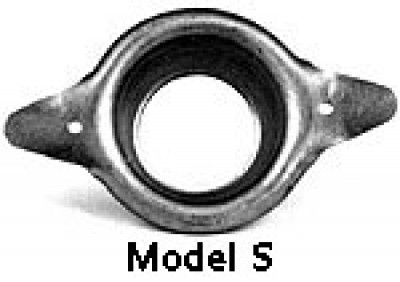

Note: Units are steel without any coatings and they need to be welded. Surface rust may be present as a result. Wing tip light plate is welded or screwed to wing tip bows to attach teardrop type position lights. Tail light plate is welded to rudder to attach Model S tail light. |
Part was about 3-4 weeks to arrive … Not Spruce but biden’s fault. Part didn’t fit and Spruce was efficient in processing the return
GRIMES STEEL FORM NAV LT PLATE
High quality just like an original.
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
4.375" Length | 1.795" Widest Point | 1.3" Inner Diameter | 0.88" Hole
The bracket is 2.750" long and about .625" deep, about 1.50" wide. It is designed for J3's and Taylorcrafts.
It's about 7/8", the more modern lights are bigger and the hole has to be enlarged.
