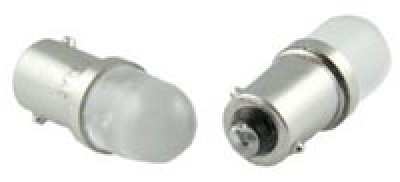

Miniature Bayonet Based Bi-Polar Lamp
Overview
|
Miniature Bayonet Based T3 1/4 LED Lamp. A bright LED for direct replacement of Miniature Bayonet Based incandescent lamps. It has a built-in diffuser for wide angle viewing. A molded diffuser lens increases the viewing angle making this LED more suited for use behind larger displays, switches or lens covers. Long-life, low power consumption, shock resistance, and extreme thermal tolerance make LEDs ideal for harsh industrial environments. Available in Clear or Red. Replaces miniature lamp: # 6MB, 44, 47, 755, 1302, 1847 (5/6v); 12MB, 57, 386,756, 1445, 1815, 1889, 1893 (12/14v); 1437, 24MB (24V); 28MB, 313, 757, 1819, 1820, 1829 (28V); 48MB (48V); 60MB, 1835 (60V); 120MB, NE51H, 967 (120VAC); 130MB (130V). |
Features
- Up to 90% Energy Savings Over Incandescent Lamps
- Long Life, 100,000 hrs., Over 10 years
- Increased Safety, No glass that can shatter
- Reduced Relamping Labor Costs
- Shock and Vibration Proof
- Lower Operating Temperature
Specifications
- Lamp Shape: T3 1/4
- Base Style: Miniature Bayonet BA9S
- Length MOL: 1.10"
- Diameter MOD: 0.40"
- Current: 20ma
- Operation: AC or DC
Reviews
The bulbs work and are dimmable per the description, but two of three bulbs I first ordered didnt work. I contacted customer service and they sent me two more bulbs free of charge (they worked fine).
Verified Purchase
Bi-Polar Mini LED Red T3-1/4
Perfect fit. Good brightness
Verified Purchase
Bi-Polar Mini LED Repl T3-1/4
It was great to find these hard to find bulbs here.
Verified Purchase
Bi-Polar Mini LED Repl T3-1/4
These are great replacement bulbs, and they dim!
Verified Purchase
Bi-Polar Mini LED Red T3-1/4
This item was not in the shipping box. When I called to see what happened,l was told that they would look in to the missing part. I received the items just this week along with a invoice a bill. I was billed the first time I ordered the items. I didn’t receive the items in the first shipment and should not be changed again.
Verified Purchase
Bi-Polar Mini LED Repl T3-1/4
These were an excellent LED replacement for our stock instrument panel bulbs, and they are dimmable. Work and look great.
The comment about the plastic rim is a fair point. Other than that, these bulbs are great. No electrical noise from them in my audio system (sometimes LED drop in replacements apparently cause that). The bulb material itself is rugged and grips better than glass, in case you have to be creative with your fingertips and/or needlenose pliers for bulbs that go in awkward, hard to reach places. Or so Ive heard...
These are great replacement bulbs for the incandescent bulbs. I gave it a 2 star because of the 9 bulbs I purchased, only three fit my military press-to-test indicators. The remaining 6 had to be turned down on a lathe to fit the holder. Cause: There is a white ring between the metal base and the plastic dome. This ring is too large a diameter to fit the holder. After reducing the diameter to that of the dome itself, all the bulbs fit and functioned fine.
Cheap Chinese Junk
Verified Purchase
Bi-Polar Mini LED Repl T3-1/4
Very, very dim.... pretty much useless
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Per the manufacturer, these are not designed to be dimmed. They will not be dimmed significantly, if at all.
No, these lights are intended for experimental aircraft only.
