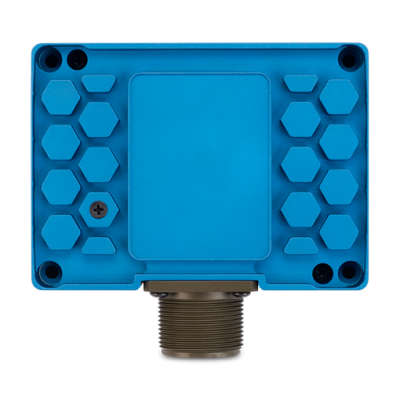

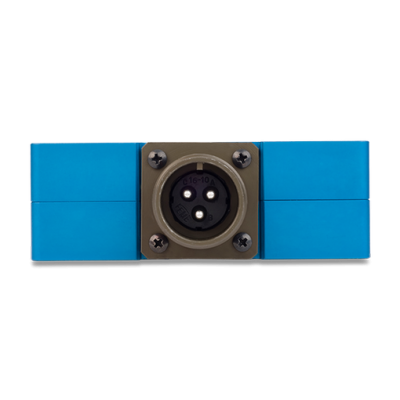

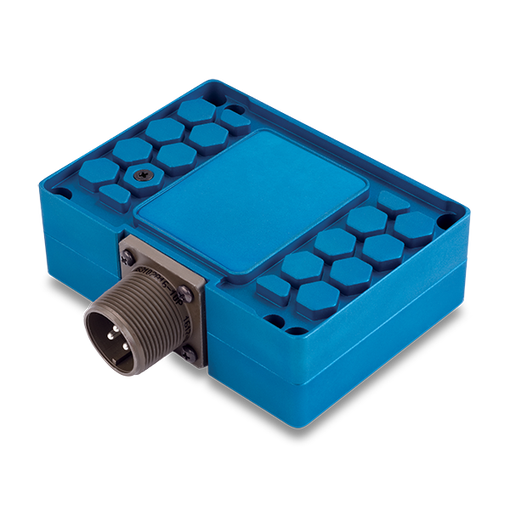

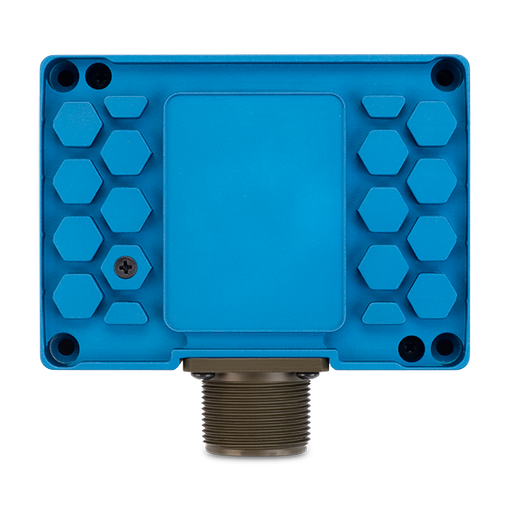

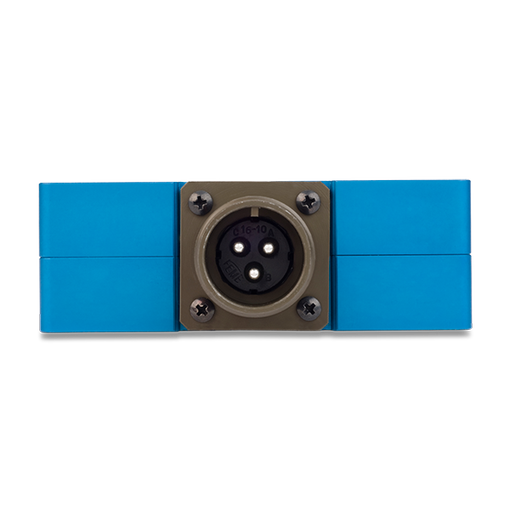

True Blue Power TC240 DC To DC Voltage Converter 6430240-2

$1094.50/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 11-17844
MFR Model# 6430240-2

Overview

24-32 VDC in, 5-24 VDC out, 18A, 240 watts, With remote on/off feature

The TC240 aircraft voltage converter supplies 240 watts of 5 – 18 volt power to electronic equipment, lighting and aircraft cabin accessories. Engineered with a fanless design, the TC240 converter is smaller and lighter than competing units. The 6430240-2 has a remote on/off feature, is FAA TSO certified, and is easy to install in your aircraft’s floor or cabin wall.

Features

  • Supplies 240 watts of 5 to 24-volt power to electronic equipment, including lighting and cabin accessories
  • Lightweight — 0.7 lbs
  • 240 watts output power
  • 95% efficiency
  • Input Voltage: 24 – 32 VDC
  • Input Current: 10.0 A Nominal
  • Output Voltage: 5 – 24 VDC adjustable
  • Input transient, overload and short circuit protection, temperature monitoring, reverse polarity
  • Rated from –67°F to +158°F (-55°C to +70°C)
  • Remote On/Off (included)
  • Mating Connector: MCI P/N 9018655 (included)
  • FAA TSO-C71 certified and RTCA DO-160G qualified
  • Designed and built in Wichita, Kansas, USA
  • Two-year limited warranty

Specifications

  • Input Voltage:
  • 24 – 32 VDC
  • Input Current:
  • 10.0 A Nominal
  • Output Voltage:
  • 5 – 24 VDC adjustable
  • Output Power:
  • 240 watts
  • Efficiency:
  • 95%
  • Weight:
  • 0.70 lbs (0.32 kg)
  • Altitude:
  • 55,000 ft
  • Temperature:
  • -67°F to +158°F (-55°C to +70°C)
  • Protection:
  • Input transient, overload and short circuit protection, temperature monitoring, reverse polarity
  • Remote Controle:
  • Remote On/Off Included
  • Mating Connector:
  • MCI P/N 9018655 (included)
  • Case:
  • Anodized aluminum, blue
  • Certification:
  • FAA TSO-C71 certified
  • RTCA DO-160G qualified
