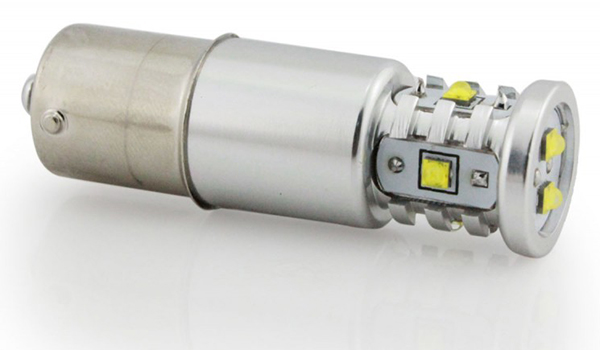

NavStrobe Beacon Light With Constant And Fast White Strobe 30W

$76.73/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 11-13522
MFR Model# BA15SWCS-30W-1940

Overview

Emitter Type: CREE
  • Total Emitters: 6
  • Power: 30W Equivalent
  • Color BIN: White

  • Rated Voltage: 10-28VDC
  • Draws 186ma @ 14.2VDC
  • Luminous Flux: 676LM (0 degrees), 666LM (90 degrees)
  • Color Temperature: 6000~6500K
  • 2 modes: constant & fast strobe

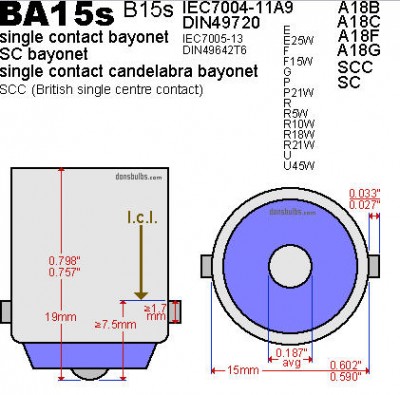

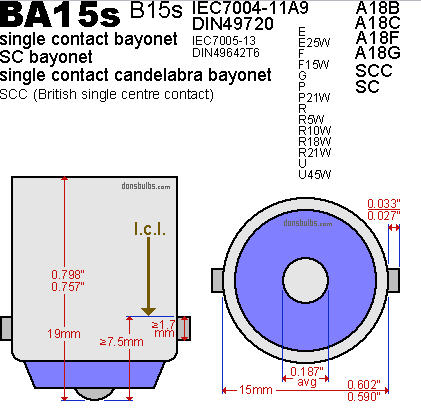

  • Base Type: BA15s = Single contact with inline pins. (GE1940 & 1156)
  • Application: Beacon Light replacement.
  • Contains 1 light bulb per pack
Dimensions: 1.9 in x 0.7 in (50.5 mm x 16 mm)
Weight: 0.32 oz (9 g)

Turn on first: Constant lighting / Turn on second time <3s: Fast Strobe. Switch between modes in fog/cloud etc.
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Happy with.

Edward W Verified Purchase

NavStrobe Beacon Light With Constant & Fast White Strobe 30W

September 21, 2022

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: In the overview it says 30 watts. But then in the specifications is says current draw is .340 amps a 14.2 volts. The formula for power (watts) is current time voltage = power in watts. .340 amps X 14.2 volts is 4.83 watts. Somethings wrong here, is it 30 watts (with LEDs a very bright light), or is it less than 5 watts - not as bright. From the lumen specs it would seem to be the latter and the 30 watt figure is incorrect.

Ohms law does not apply to LED technology. The industry standard is to compare light output intensity. For example a 24 watt tungsten bulb for sure draws ~ 2 amps at 12vdc and puts out about 600 lumens of light. A "24w" LED bulb will draw ~ 300ma and still put out 600 lumens.

Q: What is the flash rate?

Per the manufacturer: The Navstrobe beacon (11-13522) has a 300ms flash rate(this will change to 100ms after May 1st 2015).

Q: Is this a tail nav light bulb replacement or a rotating beacon bulb replacement? Is this authorized for certified aircraft?

The Navstrobe beacon (11-13522) is a replacement for the tailfin bulb. No, it is not TSO'd and only recommended for experimental aircraft.

Q: How many times a minute does this flash? I dont know what 100ms flash rate means - ten times a second?

3 Flashes per second.

Q: Can this be set to ONLY strobe? I want to use it as a belly strobe so I would never want it constant, only strobing.

No, this cannot be set to only strobe.
