NavStrobe Sextant Aircraft Navigation System with Constant & Fast Strobes 45w FAA-TSO
MFR Model# SEXTANT 5.5-45W
Overview
**FLIGHT SCHOOL SPECIAL | VOLUME SAVINGS - 20% OFF PURCHASES OF 10+ UNITS**Combination navigation and strobe lights for your aircraft. Emitter Types: Cree LED’s Operation: Turn on first; Constant lighting / Turn on second time; <3s: Fast Strobe. Switch between modes in fog/cloud etc. The reset mode sets them back to constant on by removing the power for ~> 30 seconds. Handy after fuel up to start again in steady on mode. Note: For NavStrobe sextant kits with one light missing for aircraft that have already been equipped with ADS-B lighting solutions in one of the wings or the tailfin, please click here for these kits. |
Specifications
- Rated Voltage: 10-28VDC
- Draws <1000ma @ 14.2VDC (<1 amp)
- 2 modes: constant & fast strobe
- Base Type: BAY15s for wingtip & BA15s for tailfin
- Application: Navigation Light replacement.

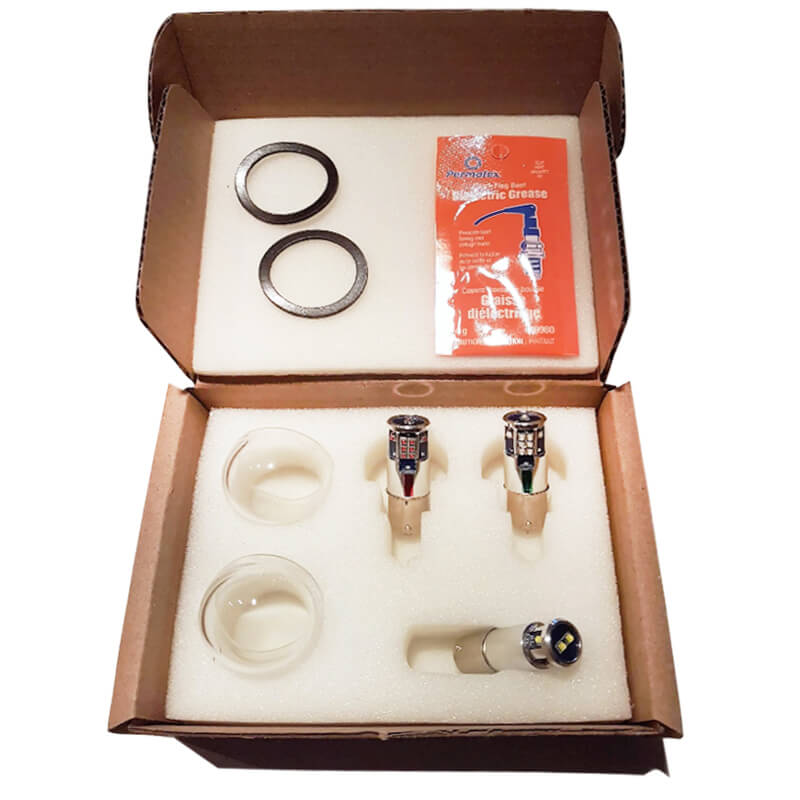

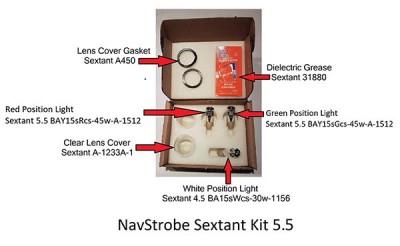

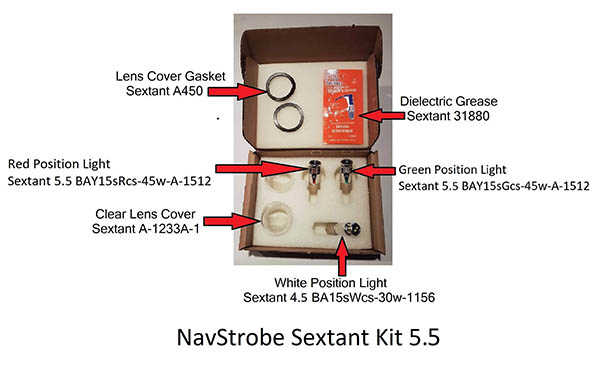

In The Box
- 1ea. Red Left wingtip combination navigation and strobe light (Sextant BAY15sRcs-45w-A-1512)
- 1ea. Green Right wingtip combination navigation and strobe light (Sextant BAY15sGcs-45w-A-1512)
- 1ea. White tailfin combination navigation and strobe light (BA15sWcs-30w-1156)
- 2ea. Clear Lens covers (Sextant A-1233A-1)
- 2ea. Lens cover gaskets (Sextant A450)
- 1ea. Dielectric grease pouch (Sextant 31880)
Videos
Reviews
Easy upgrade even for a non-mechanic, would highly recommend....much better visibility, and the strobe function is great. Great value for the money. 1974 Cessna 182P, 14v.
Product was as easy to install and worked flawlessly right out of the box. Great product on my Piper PA28 Cherokee 160.
Verified Purchase
NavStrobe Sextant Aircraft Navigation System With Constant & Fast Strobes 45W
Awesome! Quickly installed in place of the Halogen bulbs and so much BRIGHTER! Two things to know - clean the sockets FIRST even if they look ok & it will take a few activations for all three to synch but they will in time.
Great lights, SUPER bright! Cant go wrong!
Verified Purchase
NavStrobe Sextant Aircraft Navigation System With Constant & Fast Strobes 45W
Outstanding improvement in visibility and economical price
Verified Purchase
NavStrobe Sextant Aircraft Navigation System With Constant & Fast Strobes 45W
Really pleased with the added visibility to other aircraft. Great safety feature!
Verified Purchase
NavStrobe Sextant Aircraft Navigation System With Constant & Fast Strobes 45W
They work great, easy install, no STC paperwork to have to fill out , and you don’t have to pay anyone to install them. All I needed was a Phillips screw driver. Warning. Do not look directly at them when they are on. They will leave an impression of how bright they are.
Verified Purchase
NavStrobe Sextant Aircraft Navigation System With Constant & Fast Strobes 45W
Very Impressive System. Works exactly as stated.
Verified Purchase
NavStrobe Sextant Aircraft Navigation System With Constant & Fast Strobes 45W
These are great. Just replace the old bulbs with these and turn them on. Very bright.
Verified Purchase
NavStrobe Sextant Aircraft Navigation System With Constant & Fast Strobes 45W
They work as descripted. I ordered two, but one had the clear lenses missing. After a couple days new ones were sent. Very bright.
Verified Purchase
NavStrobe Sextant Aircraft Navigation System With Constant & Fast Strobes 45W
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Per NavStrobe: The lights strobe the colored LEDs so they are much brighter than a dual colored setup. Besides, the human eye is 4X more sensitive to colored LEDs, so no white LEDs.
Per NavStrobe: The colored LEDs strobe. That is why they will drown out white wingtip strobes as well.
Yes, see part # 11-13587 for the tailfin bulb only.
Per NavStrobe: Yes. Replacement is considered "Elementary work" and allows the owner/operator to replace the existing lamp. The TSO certifies that the kit is a direct replacement for those existing position lamps and is therefore a drop-in replacement.
Per NavStrobe: If the tail (rear) position lamp is the same GE-93 (12v) or GE-1308 (24v) type for each lamp, then the part # 11-13587 will replace them.
No new switch or wire required. Use the existing nav switch and wires.
Yes, that is correct. these bulbs are drop in replacement for the original Grimes style lighting on many certified general aviation aircraft.
Yes. The Sextant kit is a direct replacement for the A-1512 or A-7512 lamps..
Yes, we have added the list to the Documents section of the web page.
Yes, this is a kit and ships as shown in photo.
