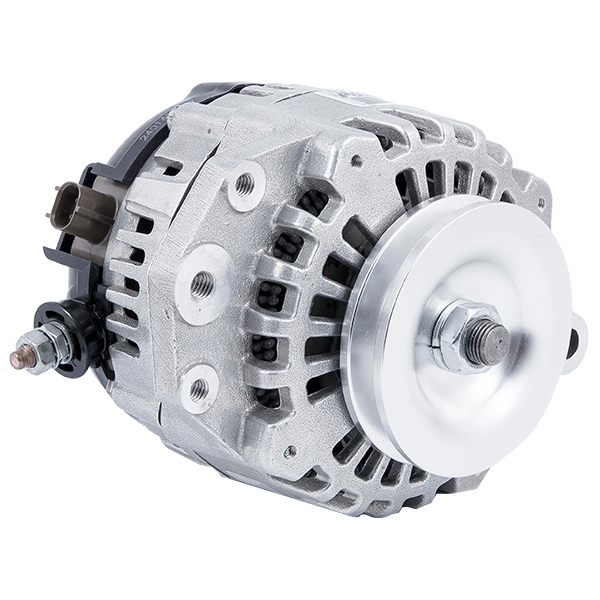

Plane Power New / Rebuilt FLX Alternator
| Description | Part Number | Price | Buy |
|---|---|---|---|
| Plane Power ALT-FLX-1 Alternator | 07-21649 | $3283.50 | |
| Plane Power ALT-FLX-2 New Alternator | 07-19188 | $4029.30 | |
| Plane Power ALT-FLX-3 New Alternator | 07-19189 | $3483.70 | |
| Plane Power ALT-FLX-4 New Alternator | 07-19190 | $3824.70 | |
| Plane Power ALT-FLX-5 New Alternator | 07-19191 | $3733.40 | |
| Plane Power ALT-FLX-6 Alternator | 07-21650 | $4242.70 | |
| Plane Power ALT-FLX-7 New Alternator | 07-19193 | $3734.50 | |
| Plane Power ALT-FLX-8 New Alternator | 07-19194 | $3690.50 | |
| Plane Power ALT-FLX-9 New Alternator | 07-19195 | $3829.10 |
Overview
|
The ALT FLX 100 Amps (14V)/150 Amps (28 V) at 12.5 pounds is precision
balanced with dual internal cooling fans, built in noise filter and provides
70 Amps at engine idle speeds. This externally regulated alternator is a
direct DOFF series alternator replacement and the STC allows for generator
to alternator conversion. It is available for STC installation on most
aircraft and helicopters. Optional Lycoming and Continental mounting kits
are available along with multi-groove and v-belt pulleys. * Flex Install Kit - Multi Groove (07-02688) is NOT sold separately. |
Core Return Policy
Any unit being returned for core or warranty core credit shall be, as removed from the engine, complete and not disassembled. No core or warranty core credit will be allowed for automotive units. Units that are rusty or cannot be overhauled for any reason will be classified as scrap, having no value. Units which have been weld repaired, as well as units which have been disassembled and then reassembled with old parts, will also be classified as scrap, having no value. A percentage of the core value will be charged for all missing or damaged parts. At no time will the damaged or missing parts charge on any unit exceed the core value of that unit.
1. Core will only be accepted for credit 12 months from date of invoice.
2. Cores returned in excess of cores invoiced will not be accepted.
3. Cores must be of like purchase, a directly superseded unit or replaced unit when installing an STC'd product.
4. Competitive product cores are acceptable returns.
5. Cores must have a legible data tag for part and serial number verification.Note: Customer will need to provide core for overhaul in the event our supplier does not have cores available to overhaul.
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
36 months (from date of installation) or 1,000 hours.
It does come with a case mount bracket.
It is externally regulated.
