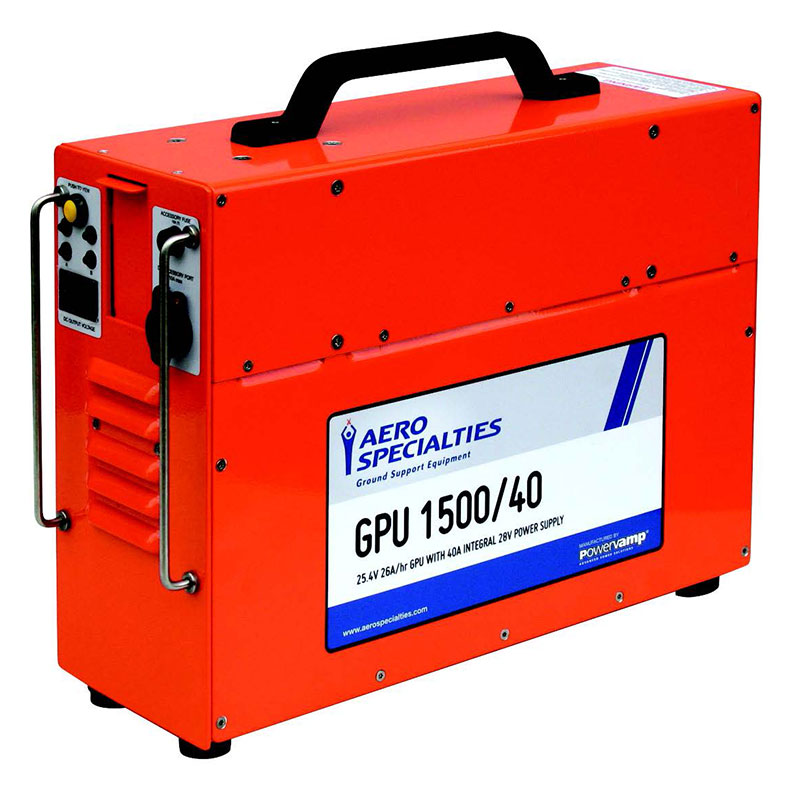

Powervamp GPU-1500/40 24V Portable Ground Power Unit

0 Reviews 0 Answered Questions
Select Base:
Single Base Twin Base
Select Length:
6.5 FT13 FT16.4 FT
Select Connector Type:
Aircraft Connector OutputTank/Intravehicular OutputLexan Aircraft Connector
Select Model:
US InputUS (Plug and Yoke)UK InputUK (Plug and Yoke)
Price Includes GST
Quantity
Add to Wishlist

Overview

Produced in partnership with Powervamp, the GPU1500/40 was originally developed to provide continuous power for avionics use and starting medium sized helicopters and Air-Force PT6 turbine EMB110 Bandeirante aircraft.

This hand portable GPU only weighs 26kg (57lbs), yet incorporates an internal 40A continuous 28V DC output using split 20A power supplies.

The modular design allows easy swap out and field servicing and also allows two GPUs to be paralleled to double the continuous output and battery capacity (GPU1500/40 Twin).

Each GPU is supplied with a power supply LED output monitor for load monitoring and diagnostics, and can be re-charged via its accessory port by any 24 –28V DC aircraft power source, including the aircraft 28V DC bus connector.

The GPU 1500/40 is fitted with solid state voltmeter with ‘push to view’ button to monitor battery voltage. A spring-loaded output cover ensures the aircraft start unit is cleared for air transportation. Supplied with NATO lead set, input lead and heavy-duty canvas protective jacket.

Features

  • High powered sealed lead acid batteries
  • Cleared for air transportation
  • Internal charger with LED status indicator
  • Corrosion resistant aluminium case with carry handle
  • Controls protected by twin front protection bars
  • Aircraft cable with heavy-duty NATO connector
  • Spring-loaded output connector cover
  • Auxiliary socket for plug-in accessories
  • Solid state voltmeter with ‘push to view’ feature
  • Fitted with rubber anti-slip, shock absorbent feet
  • Heavy-duty canvas protective jacket
