Sr 10 Inch Spot Landing Light Non TSO

$362.99/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 11-11223
MFR Model# 910213

Overview

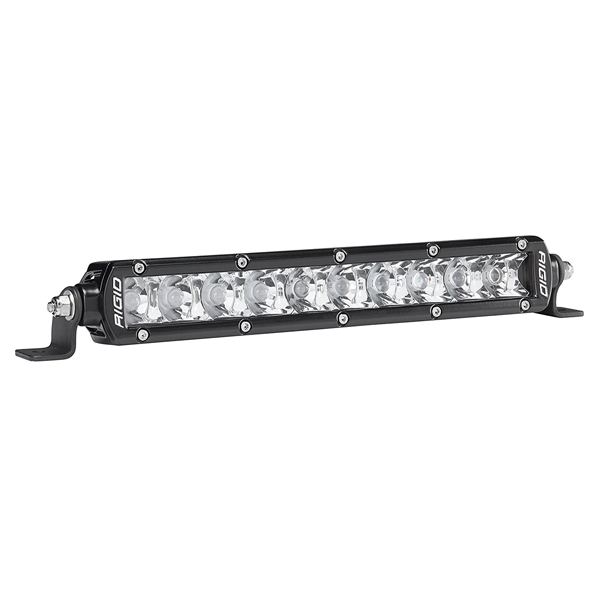

Once again Rigid Industries sets the new standard with their latest offering, the "SR Series" Single Row Light Bars. Measuring only 1.5" tall, the SR is set to change the face of LED light systems. By using thermally managed 3w technology, and an updated version of its Patented Hybrid optics, Rigid continues to offer the brightest furthest projecting LED light bars available. Producing over 3200+ lumens in the 10" version, while drawing only 35 watts, the SR continues the trend that Rigid Industries is known for, Efficiency and Superior Illumination.

Kit Includes 2 sets of mounting brackets

Features

  • Electronically protected against RFI/EMC interference
  • Spector optics driving
  • Updated Hybrid Optic System (patented)
  • 50,000+ Hour Lifespan
  • 9-36 VDC Input
  • Unbreakable polycarbonate lens
  • Instant on/off
  • Operating temp -40 ~ +145 deg. F
  • Limited Lifetime Warranty
  • Ultra Efficient 6063 Aluminum Heatsink
  • Sealed deutsch connector
  • Reverse polarity proctection
  • Gortex breather
  • Waterproof Housing
  • Patent # 6,986,593 B2 ; 7,114,832 B2

Specifications

  • Landing
  • 2.1lb
  • 35 Watts 2.4 AMP Draw
  • 10 LEDs
  • 3400 Raw Lumens
  • 676 Lux at 10m
  • 603.3 Beam Distance
  • 91000 Peak Beam Intensity
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is this a single light system? Why are 2-brackets provided in the kit? Is there a detailed installation diagram available for view?

Per the vendor: "It is a single light system. The two brackets are L brackets, that go on each side of the light. So they are not two different brackets but the same bracket with two parts. They are like as if the light had legs." We have also included the diagram in the documents tab of this webpage.

Q: Can two 10 lights be connected to one switch?

Yes the amp draw on one of those lights 4.21 so you can use one switch for both lights. If the lights start to flicker or not working properly you would need to add a relay.
