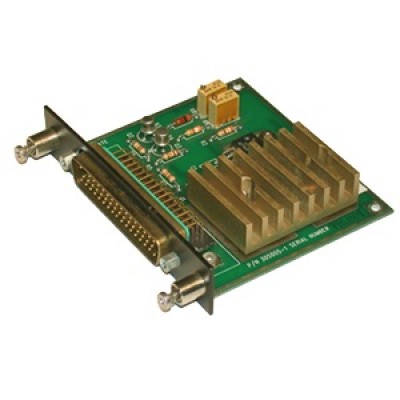

Sandia Sa 3 / 3L / 3NVG Regulator Dimming Module

From $725.00 to $1023.00
Prices below incude GST
Description Altitude PN Price Buy
SA 3 Incandescent70,000 Ft
11-11314
$797.50
Quantity
SA 3L LED70,000 Ft
11-11315
$801.90
Quantity
SA 3NVG 35,000 Ft
11-11316
$1125.30
Quantity
Subtotal $0.00
Add to Wishlist

Overview

SA 3 and SA 3L provide the installer with a regulated voltage to drive external annunciator lamps when installing new avionics and accessory equipment. Designed to provide up to 12 outputs, the installer can adjust both the maximum and minimum brightness to match the existing annunciators lamps. The SA 3 and SA 3L are single circuit card which can be installed in SANDIA Aerospace’s SRU-1 single card enclosure or in either the SRU-5 or the SRU-10 multi-card enclosures. They is certified to 55 thousand feet.

    The SA 3 is used for incandescent annunciators.
    SA 3L especially for LED annunciators.
    The SA-3NVG provides a third level of display brightness for NVG applications.

SANDIA Aerospace maintains a complete inventory of Line Replaceable Units for immediate delivery should a replacement unit ever be required.

    Operating Temp: -55° to +70°
    Voltage: 28Vdc
    .5 Amp Continuous, 1 Amp Short Term (for annunciator test)
    Adjustable Voltage To Match Existing Annunciators Brightness for either incandescent or LED’s (SA 3L)
    Multiple Output Pins Eliminates Splices In Wiring Harness
    Tested to Meet or Exceed DO160D
    Easily Field Serviceable – Worldwide
    Backed By SANDIA Aerospace’s 3 Year Warranty
