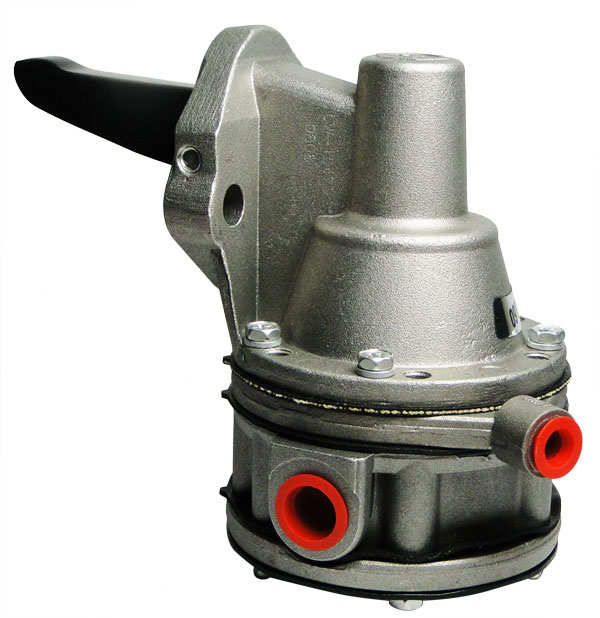

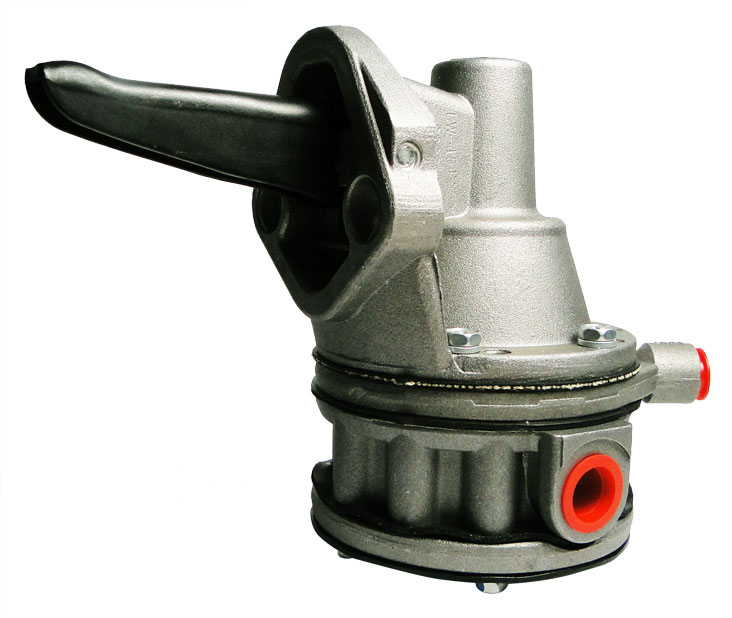

Tempest Lycoming Fuel Pumps New

From $449.00 to $879.00
Prices below incude GST
MMO Description PN Price Buy
62B26931HIGH PRESSURE 25 - 30 PSI CHANNEL ARM FUEL PUMP
07-00705
$966.90
Quantity
AF15472LOW PRESSURE 4 - 6 PSI CHANNEL ARM FUEL PUMP
05-02555
$493.90
Quantity
AF15473HIGH PRESSURE 25 - 30 PSI CHANNEL ARM FUEL PUMP
05-02556
$493.90
Quantity
Subtotal $0.00
Add to Wishlist

Overview

The Early Model Lycoming Fuel Pump
(40174/40295 low pressure, 40595 medium pressure, 40296 high pressure)
In the spring of 1964, AC introduced the first dual diaphragm type fuel pumps. These pumps were the first models to incorporate the oil seal integral with the upper diaphragm and a separator ring for installation of the vent / overboard drain line. These pumps are characterized by a rocker arm which is an early riveted, laminated design. Current production in Lycoming pumps will not fit some pre-1978 applications without expensive modifications. You can eliminate the need for these modifications by ordering an FAA Approved overhauled early model pump for direct replacement.

The Late Model Lycoming Fuel Pump

During August of 1978, AC introduced what is now known as the "late model" fuel pump which has a "channeled" rocker arm. This pump is taller than the early laminated arm pump and has a unitized diaphragm assembly. Because of its increased size some pre-1978 model aircraft require expensive and time consuming modifications to carburetors or accessory housings (ref: Lycoming Service Inst. No. 1110C). These modifications are not required if our smaller, early model laminated fuel pumps are installed on your aircraft.

Download Tempest Fuel Pump Application Guide for Lycoming PDF

Download Tempest Fuel Pump Application Chart for Lycoming PDF
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Item did not fit my Piper, returned items incur a charge.

Eugene A Verified Purchase

AF15472 Tempest New Fuel Pump

October 16, 2024

Great mechanical fuel pump. Mine went out after 17 years (also a Spruce purchased pump) Spruce provides excellent service and reliable products for my plane for 30 years now. thank you.

Robert S Verified Purchase

AF15472 Tempest New Fuel Pump

July 30, 2024

a good fit

Peter T Verified Purchase

62B26931 Lycoming Fuel Pump (High Pressure)

March 13, 2024

No surprise

Michel R Verified Purchase

AF15472 Tempest New Fuel Pump

December 19, 2023

Robert S Verified Purchase

AF15472 Tempest New Fuel Pump

August 1, 2023

Received item on time actually sooner than expected great price had a great experience dealing with aircraft spruce as always.

Don M Verified Purchase

AF15472 Tempest New Fuel Pump

June 2, 2023

works well

Richard B Verified Purchase

AF15472 Tempest New Fuel Pump

April 25, 2023

5 star

William V Verified Purchase

AF15472 Tempest New Fuel Pump

March 21, 2023

Seemed to be a direct replacement for my lycoming pump. Seems to be working well so far. Quality is great.

Scott B Verified Purchase

AF15473 Tempest New Fuel Pump

January 24, 2023

Perfect replacement for the the Lycoming 15472 fuel pump. Comes with gasket.

Peter D Verified Purchase

AF15472 Tempest New Fuel Pump

October 13, 2022

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the difference between the LW15473 and the AF15473? Both are rated for the IO-360 which is fuel injected and appear to have the same pressure ratings.

The LW15473 is taller than the ADF15473 pump. They may not fit all the same applications due to the size.

Q: What is the flow rate of the fuel pump LW15473?

The flow rate of this fuel pump is 45 GPH (gallons per hour). The operating pressure is 24-30psi.

Q: What is the difference between the LW15473 and the LW15472?

LW15473 is a high pressure fuel pump and LW15472 is a low pressure fuel pump.

Q: What is the flow rate on a LW15472 fuel pump?

We could not find any info on flow rate, but the application chart lists this unit as 4-6 PSI.

Q: Im hoping the AF15472 is an exact replacement for the LW15472. Is this true? Does the AF15472 come with a gasket?

Yes, the AF15472 & LW15472 are the same, and the AF15472 does come with a gasket.

Q: Does the AF15472 have a laminated arm?

No, AF15472 has a channel arm.

Q: What are the dimensions for the vent port on a Tempest LW15472 fuel pump - thread size and 37 ft flare? Or part number for a right angle fitting for the vent port?

The two large ports are 1/4npt and the small port is 1/8 NPT. You would need to determine the correct fitting for your application.

Q: Does the Tempest Fuel Pump, Part Number AF-15473, come with a gasket?

Yes this does ship with a gasket.
