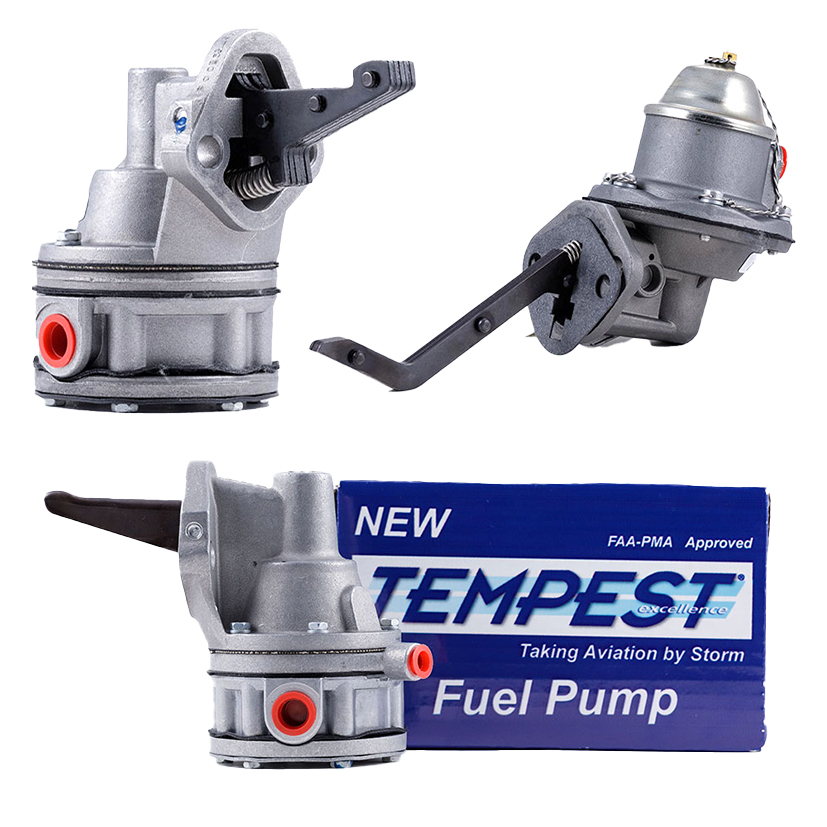

Tempest Lycoming Fuel Pumps Overhauled

From $339.00 to $699.00
Prices below incude GST
MMO Description PN Price Buy
401741/4 NPT PORTS LOW PRESSURE 4 - 6 PSI LAMINATED ACTUATING ARM
05-02530
$768.90
Quantity
40296HIGH PRESSURE 25 - 30 PSI LAMINATED ACTUATING ARM
05-02531
$592.90
Quantity
40595MEDIUM PRESSURE 15 - 18 PSI LAMINATED ACTUATING ARM (PS5 TYPE)
05-19015
$768.90
Quantity
41234HIGH PRESSURE 25 - 30 PSI CHANNEL ARM
05-02532
$592.90
Quantity
41270LOW PRESSURE 4 - 6 PSI LONG CHANNEL ARM
05-02533
$765.60
Quantity
41271LOW PRESSURE 4 - 6 PSI CHANNEL ARM
05-02534
$592.90
Quantity
41272MEDIUM PRESSURE 15 PSI (PS5) CHANNEL ARM
05-02536
$765.60
Quantity
41452LOW PRESSURE 4 - 6 PSI CHANNEL ARM (PORTS ROTATED 45°)
05-02537
$765.60
Quantity
41812HIGH PRESSURE 30 - 36 PSI LONG ACTUATING ARM
05-02539
$765.60
Quantity
40295LOW PRESSURE 4 - 6 PSI LAMINATED ACTUATING ARM, SHORT BODY PUMP (CLOCKED 3 AND 9)
05-02540
$592.90
Quantity
75247HIGH PRESSURE 25 - 30 PSI LAMINATED ACTUATING ARM
05-02541
$698.50
Quantity
LW14282MEDIUM PRESSURE 15 - 18 PSI (PS5 TYPE)
05-02544
$766.70
Quantity
LW15399LOW PRESSURE 4 - 6 PSI LONG ACTUATING ARM
08-15399
$588.50
Quantity
LW15472LOW PRESSURE 4 - 6 PSI CHANNEL ARM
05-19000
$394.90
Quantity
LW15473HIGH PRESSURE 25 - 30 PSI CHANNEL ARM
05-19010
$394.90
Quantity
LW16335LOW PRESSURE 4 - 6 PSI PORTS ROTATED 45°
05-02545
$438.90
Quantity
LW16775LOW PRESSURE 4 -6 PSI CHANNEL ARMS (PORTS REVERSED)
05-02546
$731.50
Quantity
LW16947HIGH PRESSURE 30 -36 PSI LONG CHANNEL ARM
05-02547
$727.10
Quantity
AF15473HIGH PRESSURE 25 - 30 PSI CHANNEL ARM
05-02556-1
$372.90
Quantity
Subtotal $0.00
Add to Wishlist

Overview

The Early Model Lycoming Fuel Pump
(40174/40295 low pressure, 40595 medium pressure, 40296 high pressure)
In the spring of 1964, AC introduced the first dual diaphragm type fuel pumps. These pumps were the first models to incorporate the oil seal integral with the upper diaphragm and a separator ring for installation of the vent / overboard drain line. These pumps are characterized by a rocker arm which is an early riveted, laminated design. Current production in Lycoming pumps will not fit some pre-1978 applications without expensive modifications. You can eliminate the need for these modifications by ordering an FAA Approved overhauled early model pump for direct replacement.

The Late Model Lycoming Fuel Pump

During August of 1978, AC introduced what is now known as the "late model" fuel pump which has a "channeled" rocker arm. This pump is taller than the early laminated arm pump and has a unitized diaphragm assembly. Because of its increased size some pre-1978 model aircraft require expensive and time consuming modifications to carburetors or accessory housings (ref: Lycoming Service Inst. No. 1110C). These modifications are not required if our smaller, early model laminated fuel pumps are installed on your aircraft.

OVERHAULED LYCOMING FUEL PUMPS

All internal parts are replaced with new certified parts. The actuating arms are magnetic particle test inspected; cast parts are inspected for wear, corrosion and cracks. Both the older laminated and newer channel style fuel pumps are overhauled for normally aspirated, pressure carburetor, and fuel injected systems.


Note: Customer will need to provide core for overhaul in the event our supplier does not have cores available to overhaul. Additional core charge will apply. Please add pump to cart to see current applicable core charge.


Download Tempest Fuel Pump Application Guide for Lycoming PDF

Download Tempest Fuel Pump Application Chart for Lycoming PDF

Similar Items

Click Here for New
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Like a new one!

David H Verified Purchase

Tempest Overhauled Fuel Pump 15472

November 6, 2024

Fit perfect, exact replacement.

Eugene A Verified Purchase

40295 Tempest Overhauled Pump

October 23, 2024

Worked well

Steve B Verified Purchase

40295 Tempest Overhauled Pump

June 27, 2024

Works great, O-320E2D its good to be back in the air.

Donaven C Verified Purchase

40295 Tempest Overhauled Pump

May 21, 2024

works fantastic, took care of our oil leak. 2008 Robinson R44 RII

Colt Verified Purchase

Tempest Overhauled Fuel Pump 15473

December 28, 2023

Just what I needed for my Grumman Tiger.

John H Verified Purchase

40295 Tempest Overhauled Pump

November 10, 2023

perfect replacement for the óld style pump in my cherokee 140. replacement was not that hard at all!

Verroen Verified Purchase

40295 Tempest Overhauled Pump

October 17, 2023

Works great

George E Verified Purchase

Tempest Overhauled Fuel Pump 15472

October 13, 2023

Very happy with the overhauled pump, it works just like a new one, for less money & less waste.

Chris S Verified Purchase

AF15473-Overhauled Overhauled Temperature Fuel Pump

July 26, 2023

Goodrich A Verified Purchase

Tempest Overhauled Fuel Pump 15472

July 20, 2023

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does the 41271 pump come with a new gasket?

Yes, pump 41271 comes with a new gasket.

Q: Does the LW-15473 pump come with a gasket?

Yes, it is in the box attached to the paperwork inside.

Q: Does the LW15472 fuel pump comes with the 8130 form?

Yes, the 8130-3 airworthiness approval form is included in the box with these fuel pumps.

Q: Are the LW-15472 and the LW-16335 low pressure pumps interchangeable?

These are both low pressure pumps but they are not interchangeable as they both have different applications.

Q: P/N: LW15472 Which Gasket is included in LW15472. Please be so kind and send me the P/N.

It comes with gasket pn# 60096.

Q: I am trying to determine which one I need? What does LW indicate on LW 15473?

It is always recommended to double check with your engine parts manual to verify what part number you are needing for your application. The LW indicates that it is an original Lycoming part number.
