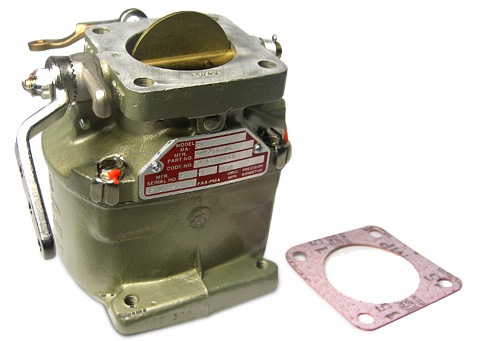

Marvel-Schebler Overhauled Carburetors For Lycoming
| Carb. Model |
Lycoming PN |
Vendor PN |
PN | Price | Buy |
|---|---|---|---|---|---|
| MA-3A | 61547 | 10-3103-1 | 10-03103-1 | $1314.50 | |
| MA-4SPA | 69250 | 10-3678-12 | 08-06325 | $1391.50 | |
| MA-4SPA | 72394 | 10-3678-32 | 08-06326 | $1391.50 | |
| MA-4-5 | 71098 | 10-3878 | 08-06372 | $1424.50 | |
| MA-4-5 | 71710 | 10-4164-1 | 08-06373 | $1457.50 | |
| MA-4-5 | 66458 | 10-2827 | 07-01405 | $1494.90 | |
| MA-4-5 | 66869 | 10-3323 | 07-01411 | $1491.60 | |
| MA-3SPA | 62830 | 10-3565-1 | 07-01413 | $1369.50 | |
| MA-4-5 | 69540 | 10-3634 | 07-01415 | $1469.60 | |
| MA-4-5 | 71546 | 10-3856-1 | 07-01417 | $1464.10 | |
| MA-4-5 | 71685 | 10-3856-12 | 07-01418 | $1466.30 | |
| MA-4-5AA | 71684 | 10-4025-12 | 07-01421 | $1523.50 | |
| MA-3SPA | 627367 | 10-4252-2 | 07-01425 | $1347.50 | |
| MA-6AA | 72407 | 10-4218-1 | 07-01424 | $1564.20 | |
| MA-4-5 | 72386 | 10-4329 | 07-01426 | $1480.60 | |
| MA-4-5 | 74121 | 10-4404-1 | 08-06376 | $1457.50 | |
| MA-6AA | 73899 | 10-4438-1 | 07-01428 | $1467.40 | |
| MA-4-5AA | 73257 | 10-4495 | 07-01429 | $845.90 | |
| MA-5 | 20671 | 10-4865 | 07-01430 | $1467.40 | |
| HA-6 | LW-15957 | 10-5219 | 08-06394 | $1567.50 | |
| MA-3SPA | LW-16073 | 10-5220 | 08-06395 | $1358.50 | |
| MA-3SPA | -- | 10-5220-E | 07-01464 | $1315.60 | |
| HA-6 | LW-16066 | 10-5221 | 07-01465 | $1639.00 | |
| HA-6 | LW-15958 | 10-5224 | 08-06396 | $1458.60 | |
| MA-4SPA | 77279 | 10-4910 | 08-06381 | $1348.60 | |
| MA-4SPA | LW-16559 | 10-4910-1 | 08-06382 | $1373.90 | |
| MA-3A | 77585 | 10-4953 | 08-06383 | $1310.10 | |
| MA-6AA | 77888 | 10-4975 | 07-01434 | $1466.30 | |
| MA-3PA | 77939 | 10-4978-1 | 07-01435 | $1291.40 | |
| MA-4-5 | LW-10064 | 10-5034 | 08-06385 | $1457.50 | |
| MA-4-5 | LW-10196 | 10-5042 | 07-01438 | $1392.60 | |
| MA-3PA | LW-10619 | 10-5050 | 08-06386 | $1369.50 | |
| MA-4-5 | LW-10540 | 10-5054 | 08-06387 | $1424.50 | |
| MA-3PA | LW-13133 | 10-5126 | 08-06388 | $1441.00 | |
| HA-6 | LW-13757 | 10-5189 | 07-01447 | $1855.70 | |
| MA-4-5 | LW-15380 | 10-5193 | 08-06390 | $1479.50 | |
| HA-6 | LW-15504 | 10-5200 | 07-01450 | $1855.70 | |
| HA-6 | LW-15626 | 10-5206 | 07-01453 | $940.50 | |
| HA-6 | LW-15674 | 10-5211 | 07-01460 | $1855.70 | |
| HA-6 | LW-15985 | 10-5211-1 | 07-01461 | $1854.60 | |
| MA-4-5 | 72740 | 10-4404 | 08-06375 | $1457.50 | |
| MA-4SPA | 78728 | 10-5009 | 08-06384 | $1358.50 | |
| MA-4SPA | 13659 | 10-5135 | 08-13873 | $1457.50 | |
| MA-3A | 15496 | 10-5199 | 08-06391 | $1314.50 | |
| MA-4SPA | 15986 | 10-5217 | 08-06392 | $1347.50 | |
| MA-3SAP | 0-290-D | 10-3346-1 | 07-00870 | $1477.30 | |
| -- | LW-16206 | 10-5227 | 07-01467 | $939.40 | |
| -- | LW-15959 | 10-5230 | 08-06397 | $1657.70 | |
| HA-6 | LW-15960 | 10-5235 | 08-06398 | $1538.90 |
- JUMP TO
- Overview
- Documents
- Reviews
- Q&A
- View in Catalog
Overview
|
Carburetor exchange program coverS all popular Marvel Schebler/Facet general aviation carburetors. The carburetors are overhauled to the strictest industry standards and carry a full 6 month warranty (from date of installation). Most carburetors are available from stock or within a week and are furnished complete with gaskets. Due to the various configurations of carburetor installations, we suggest you retain your carburetor core until receiving the exchange unit. This will enable you to transfer all external fittings and installation hardware to the new exchange unit. All cores being returned for credit shall be, as removed from the engine, complete and not disassembled. A reduction in core credit is charged for missing or damaged parts. All prices shown are with factory acceptable exchange carburetor. Send exchange carburetor core to us. Upon factory approval of core, you will be refunded the core charge. Customer will need to provide core for overhaul in the event our supplier does not have cores available to overhaul. Facet Marvel Schebler Carburetor Cross Reference & Engine Application Marvel Schebler Carburetor Piece Parts NOTE: If you do not see your model # here please contact our Sales Department for pricing and availability. |
Documents
- Download PDF of Facet Marvel Schebler Carburetor
- Cross Reference
- and Engine Application
Reviews
Available same day. Worked great. Replaced original carb from 1964. Engine is cooling properly and making more power now.
Verified Purchase
10-3878 Overhauled Marvel Schebler Carb
Fits good, only minor idle throttle and mixture adjustments
Verified Purchase
10-5009 Overhauled Marvel Schebler Carb
Product was installed and is working. I would have liked instructions on how to set up the carburetor rich needle valve to get the proper mixture.
Verified Purchase
10-5199 Overhauled Marvel Schebler Carb
Out of the box and running great.
Verified Purchase
10-3678-32 Overhauled Marvel Schebler Carb
Overhauled looks like a brand new unit. No adjustments were needed
Verified Purchase
10-3878 Overhauled Marvel Schebler Carb
Tried & true
Verified Purchase
10-5199 Overhauled Marvel Schebler Carb
Excellent product and the tech support from Marvel it is wonderful. As an A&P one advice: before you return your old carburetor take a note and adjust the new carburetor levels to fit your engine links so only minor adjustment to be made. The mixture screw and the idle is the real only think to adjust according to your engine.
Verified Purchase
10-5219 Overhauled Marvel Schebler Carb
Verified Purchase
10-3678-32 Overhauled Marvel Schebler Carb
Carburetor was perfect. A small adjustment to the idle and it operates as expected.
Verified Purchase
10-3678-32 Overhauled Marvel Schebler Carb
Verified Purchase
10-5217 Overhauled Marvel Schebler Carb
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The core must be returned within 1 year.
These carbs listed on this page are from Tempest.
The current core value will be automatically added to the Shopping Cart along with the carb. Please add the carb to your cart to view the current core charge / exchange value.
The Avstar core is not an acceptable core exchange.
Yes, it does come with both top and bottom gaskets.
Yes, they come with both gaskets.
This only comes with the top gasket.
No, the core will have to be a marvel style core for credit.
