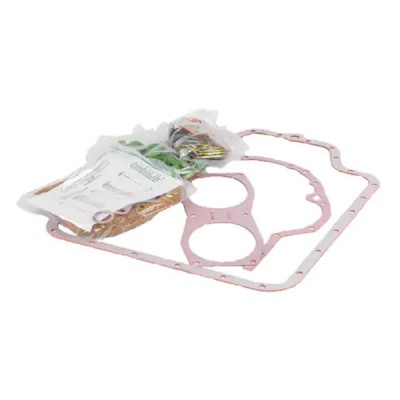

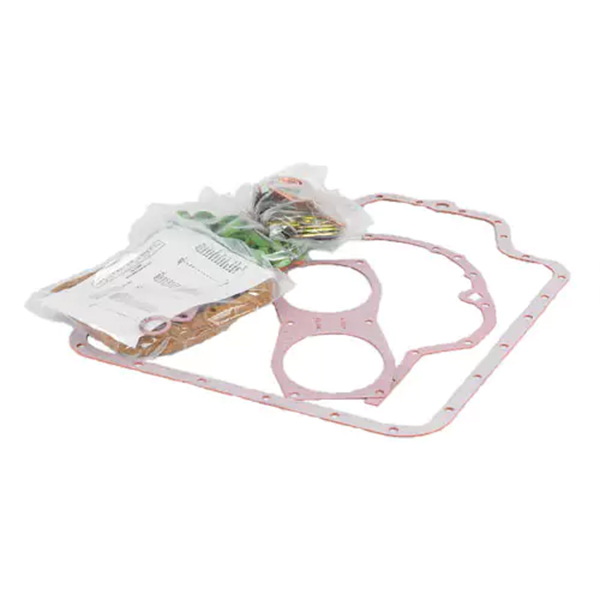

Superior SL13367 Gasket Set Major Overhaul

$474.10/Each
Price Includes GST
Part# 08-11592
MFR Model# SL13367

Overview

SL13367 for IO-540-K, L, M, U Wide Deck (Dual Magneto) AEIO-540-L1B5D Wide Deck (Dual Magneto). Angle cylinder head. Contains exhaust gasket.s

FAA-PMA Approved
NOTE: Intake hoses and oil drain-back hoses must be ordered separately.

In The Box

Part in Set Qty Part Description OEM Part Number
MS29512-10 2 O-RING
MS16625-2081 1 RETAINING RING STD-2231
MS35769-21 1 CRUSH GASKET
SL-STD-208 1 SEAL, OIL 06A19956
MS35769-31 1 GASKET
SL1691-C 1 GASKET 1691-C
SL8313 2 GASKET 8313
SL14260 1 OIL SEAL LW-14260
SL18661 24 SEAL - SHROUD TUBE LW-18661
SL66732 12 GASKET 66732
SL67193 6 GASKET 67193
SL69164 1 GASKET 69164
SL70455 1 GASKET 70455
SL70457 1 GASKET 70457
SL71450 6 GASKET 71450
SL71481 6 RING, OIL SEAL, 4.84 ID X .04 71481
SL14820 8 SNAP RING
SL71973 6 GASKET 71973
SL72053 1 GASKET 72053
SL72091 2 PACKING, RESISTANT, OIL 72091
SL72210 1 GASKET 72210
SL74065 1 PACKING RESISTANT, OIL 74065
SL72312 1 O-RING 72312
SL72711 6 O-RING 72711
SL73032 1 GASKET 73032
SL73383 1 LOCK PLATE 73383
SL73818 1 GASKET 73818
SL15619 12 GASKET LW-15619
75118 12
SL15628 1 SEAL,CRANKSHAFT ass'y LW-15628
SL10332 1 LOCK PLATE LW-10332
SL12681 2 GASKET LW-12681
SL15H21201 24 SPRING 15H21201
SL72812 1 GASKET 06B21326
06E19769-0.91 1
SL60096 1 GASKET 60096
MS29512-06 1 O-RING
SL74068 1 O-RING 74068
MS35769-11 2 GASKET
20415 1
SL-STD-213 1 SEAL STD-213
MS29561-007 1 O-RING
SL72075 8 SEAL, RING, OIL 72075
