Tempest Platinum Electronic Fluid Pumps Filter Change Kit
MFR Model# KIT-P1
- JUMP TO
- Overview
- Instructions
- Reviews
- Q&A
Overview
|

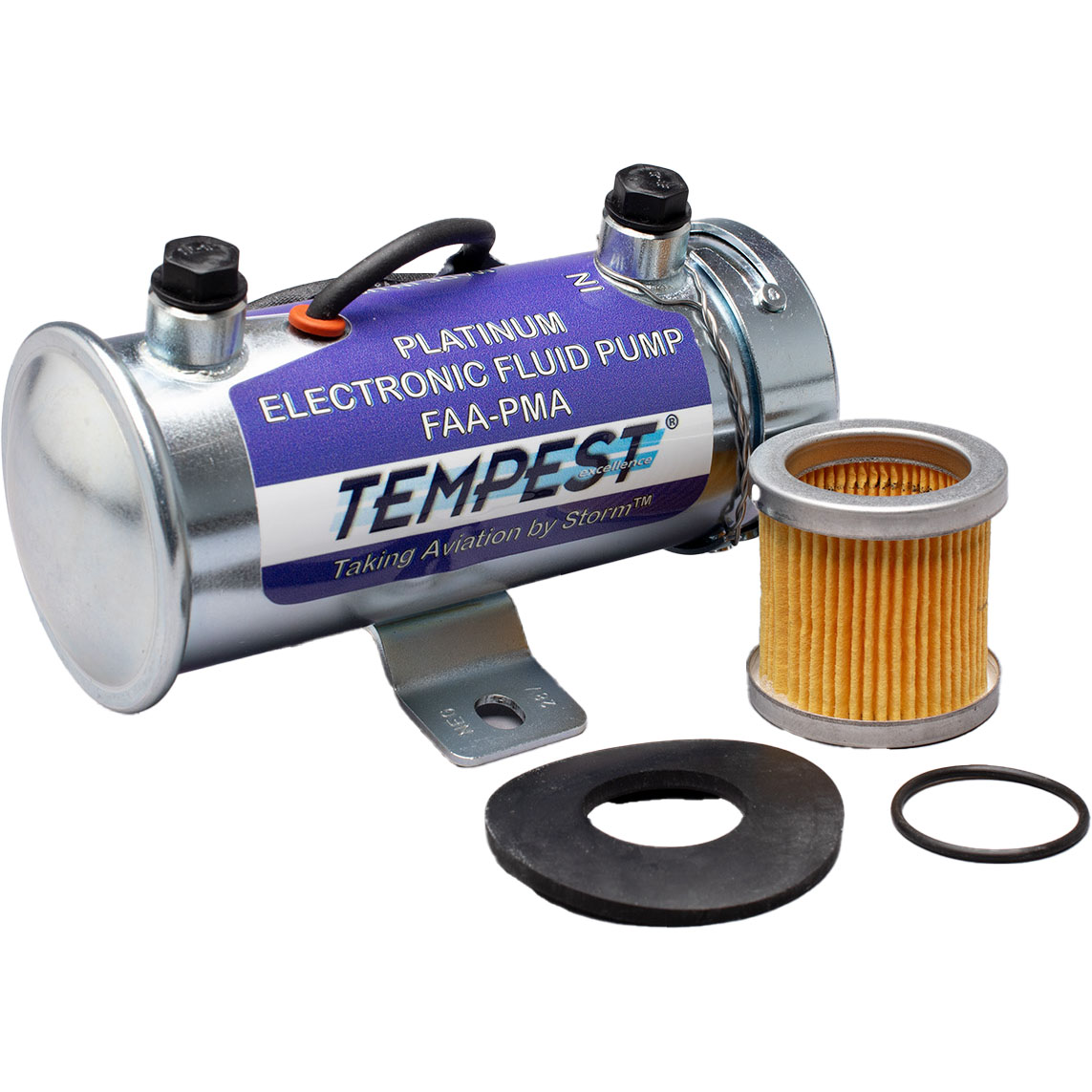

Filter Kit Part Number KIT-P1. Universal - Fits all Platinum Pumps.

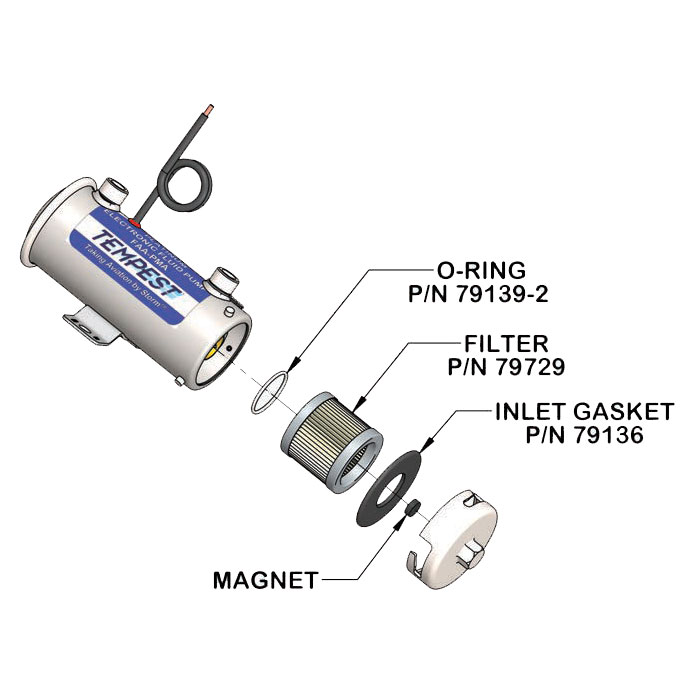

Includes: Filter P/N 79729, Gasket P/N 79136 & O-Ring P/N 79139-2 Change the pump filter element when specified by the aircraft maintenance manual or when the pump output/pressure diminishes (an event that may indicate a dirty clogged filter). |
Instructions
- To change the filter: Remove the safety wire securing the removeable cap. Using an appropriate wrench, remove the cap (some fluid may run out depending on the mounting orientation of the pump). Remove the filter element, gasket, and O-ring.
- There is a small magnet inside the removeable cap. Inspect it and clean it as necessary. It can be removed from the cap for cleaning. After cleaning, place it back in the center of the cap. Replace the O-ring. Replace the filter element. Replace the gasket in the removeable cap. Install the cap. Turn it until the three securing lugs are at the extreme (radiused) end of the slots in the cap. DO NOT STOP SHORT. Install the safety wire between the cap and the adjacent fitting. Operate the pump and check for leaks. Prior to approving the aircraft for return to service, correct any discrepancies found.
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
This is a filter replacement kit not a pump. We would need the pump number to answer these questions.
