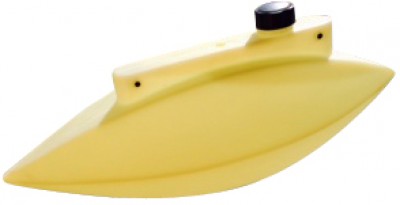

Strut Football Fuel Tank
Overview
|
5 gallon strut tank with filler cap and pick up cap. Made from see through Cross Link Polyethylene (XLPE) which prevents material breakdown due to ethanol use. This tank may be mounted right on the strut and allows for easy access for filling and viewing to check fuel levels. Experimental Only |
Specifications
- 33" length x 33" circumference x 12" high.
- Plus 2" for fuel cap on top & 1" for fuel dimple on bottom.
- 6.2 lbs empty weight.
- 5 Gallon Wing Strut Tank.
- Fits most Ultralight and Light Sport Aircraft.
- Made of cross-linked PE (filament tape).
- Comes with self vented cap & fuel dimple on bottom for drilling to insert fuel drain plug.
- Fuel drain plug NOT included with unit.
Reviews
These do come with a suction pick-up option. A plastic plug with a 1/4 hose barb on each side. You will need 1 foot, of 1/4 inch Tygon tubing, to reach down into the well. I made my own clunks, by sliding a nut over the end, and attaching a 1/4 inch brass nipple, sliding the nut down tight over it. Two of these doubled the fuel capacity, and range, of my Mini-Max Eros.
I finally figured out how these Strut Tanks are intended to be plumbed… 1. 12” long, ¼” OD hose 2. At one end, a pickup: https://www.aircraftspruce.com/catalog/appages/fuf02.php 3. At the other end goes a ¼” hose fitting: https://www.aircraftspruce.com/pages/ap/fuel_zfittings/ffelbow.php [this actually wouldn’t work for me because my fuel system is plumbed with ⅜: Versatube. So my fitting for this purpose has the ¼” hose barb on one side and a male AN6 nipple on the other. Spruce doesn’t sell those, so look to a supplier like Pegasus Racing] 4. Slide the hose over the fitting. Then, insert that hose through the Fuel Tank Bushing [not sold with tank, but they are cheap and referenced in the description] and slide that bushing all the way up so it squeezes the hose on to the fitting barb. Then, attach the pickup at the other end of the hose. Voila, theres your pickup! 5. The bushing is slightly larger than the pickup hole in the top of the tank, so you need to work it in with a flat-blade screwdriver. The tank hole appears to be threaded, but the bushing is not. It is just held in place by being flexible rubber and slightly oversized
the fitting for the hole on the top of the tank was standard diameter while the fitting hole was metric so I had to buy an $80.00 tap to make the hole larger which I will probably only use this tap once in my life time.The hole on the gas cap is roo small as well for use with a fuel pump so I will have to modify that as well.
Verified Purchase
Strut Football Fuel Tank
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The strut fuel tanks do not come with the drain already installed in the bottom of the tank. There is a place at the bottom of the tank that may be drilled out and a drain installed if the customer so wishes. The tanks are gravity fed and driven by the fuel pump, however, it is possible to augment that fuel pump with an electric fuel pump as well. But these tanks are designed and intended to be main tanks and not drained into a header tank, although it is possible to do so. Because the tanks are transparent that gives the fuel level indication. These tanks require a pick up tube and fuel lines in addition to the tanks. These items are not included.
This weighs 6.2 lbs empty.
The units do not have any detailed instructions. Additional brackets / struts may be required depending on the specific aircraft application.
There is a place at the bottom of the tank that may be drilled out and a drain installed if the customer so wishes.
There is not a drain hole on this unit. There is a spot at the bottom of the tank in which you can drill out if you wish.
Approx 12-1/2 inches.
These are experimental only. You would have to have a 337 or an stc to use it with a certified aircraft.
