Instrument Panel Layout Template

$32.67/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 12-14600

Overview

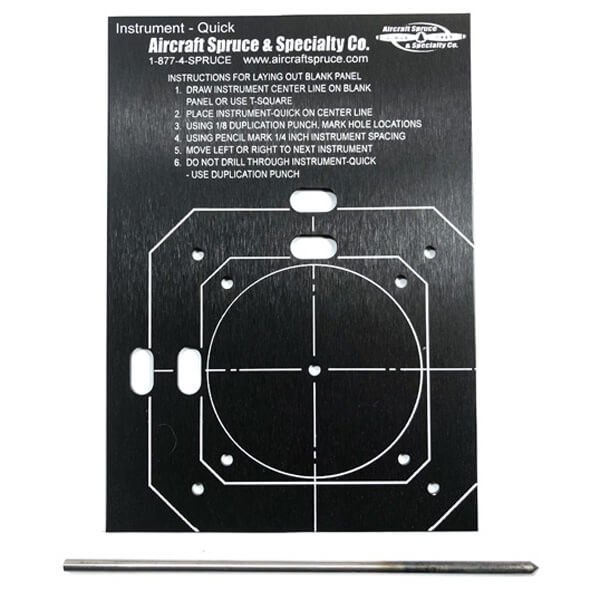

Use this template for precise positioning of instrument holes and mounting screw holes in panel. For both 2-1/4" and 3-1/8" dia. instruments. With transfer punch for marking screw hole centers, and instructions.
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

John L Verified Purchase

Inst Panel Layout Template

March 22, 2022

Very helpful for panel layout. Nice and precise alignment lines and holes. Hard anodized aluminum.

Kurt E
August 8, 2013

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is this template made of?

Black anodized brush aluminum.

Q: If you have an 3 1/8 in hole will this fit in the hole to mark the mounting holes?

Yes this will work for both 2-1/4 and 3-1/8 dia. instruments.

Q: Is this used prior to or after punching out the instrument holes?

It is used to lay out where the holes will be cut so you would use it prior to cutting and drilling.
