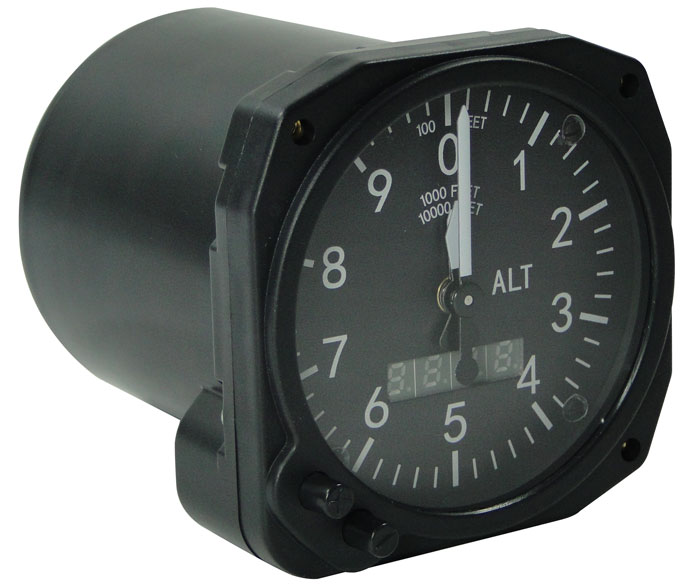

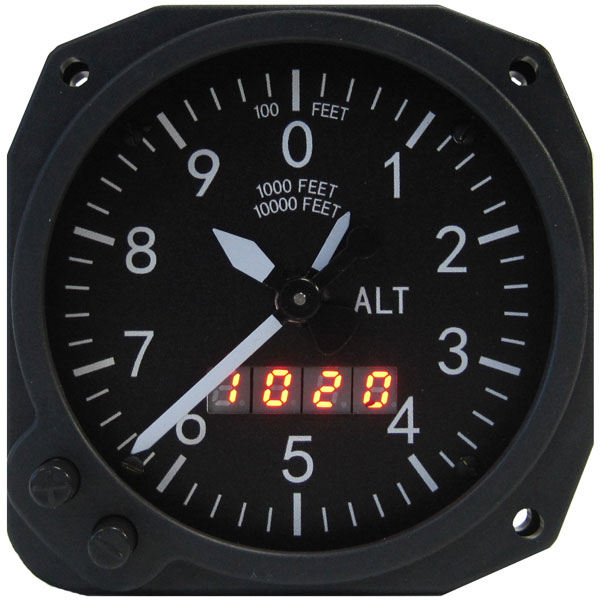

Swift Altimeter And Barometers 3 1/8 Inch / 9-30 VDC

4 Reviews 3 Answered Questions
From $437.00 to $494.00
Prices below incude GST
Main Image
Main Image
Model Number Description Remarks Part Number Price Buy
ALT3-40F340,000 FT 3 PointerBarometric unit switchable: mmHg/inHg/mb
10-06256
$543.40
Quantity
ALT3-10F210,000 FT 2 PointerBarometric unit switchable: mmHg/inHg/mb
10-06287
$492.80
Quantity
ALT3-10M210,000 M 2 PointerBarometric unit switchable: mmHg/inHg/mb
10-06288
$495.00
Quantity
ALT3-10M310,000 M 3 PointerBarometric unit switchable: mmHg/inHg/mb, 100m/circle
10-06289
$480.70
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Patent product, Integrates the highly reliable MEMS sensor Precise, Durable, Accurate (reading), free from frequent regular calibration.

  • Large measurement range: up to 13,000 m (42,000 ft);
  • Barometric unit can be switched between mmHg/inHg/mb;
  • Precise indication: long pointer rotation a circle represents 100 meters in a 3 pointers 10000m model;
  • Easy adjustment: adjust barometric pressure via button instead of knob, simple and straightforward;
  • Digital-displayed barometric pressure with big and clear digits and adjustable lightness;
  • Error can be corrected: no need to be returned to the manufacturer or checked with a specific instrument. After years, when the pressure-sensitive component in the indicator appears small drift, the indication error can be corrected;
  • Super simplified variety and specification, thanks to features including high precision, large range via the sensor and switchable barometric unit.

Specifications

  • Size: 3 1/8"
  • Install Depth: 96mm
  • Power Supply: 9~30VDC
  • Weight: 400 g

Documents

  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Submit a Review

Adf M Verified Purchase

Swift Altimeter 42K Foot 3 Pointer 9-30VDC
October 5, 2024

Works great! This replaced my Falcon altimeter which broke even though it was new. Easy to use and hook up.

Richard L Verified Purchase

Swift Altimeter 42K Foot 3 Pointer 9-30VDC
May 24, 2024

wiring inside had to be repaired. it operates as advertised after fix. i would not buy it again.

Michael D Verified Purchase

Swift 3-1/8 Altimeter 0-10K Foot 2 Pointer Baro Mmhg Inhg Mb
October 31, 2023

Kendal K Verified Purchase

Swift Altimeter 42K Foot 3 Pointer 9-30VDC
May 18, 2022

Q&A

Submit

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is this Swift altimeter and barometer FAA TSO approved for certified aircraft?

No, this altimeter is not FAA Approved for certified aircraft. Experimental aircraft use only.

Q: What happens if power is lost? Is the altimeter still functional?

The altimeter uses the static line for function. If power is lost, you will lose power on the led display portion that displays the barometric number.

Q: Is the Swift altimeter dial internally lit?

No, this is not lit.
