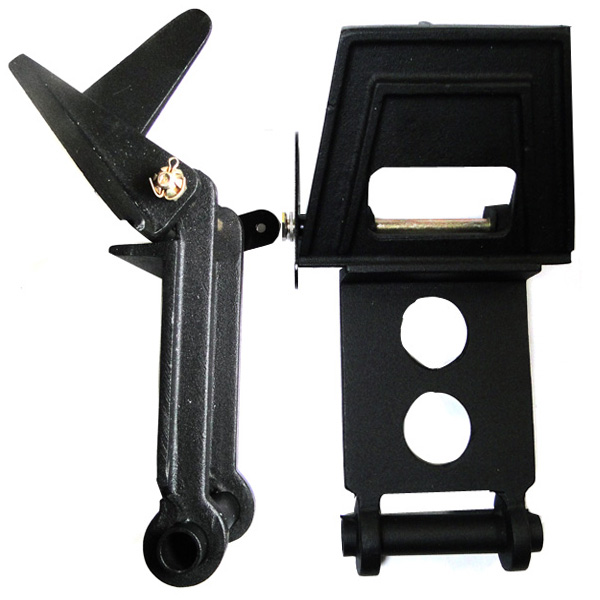

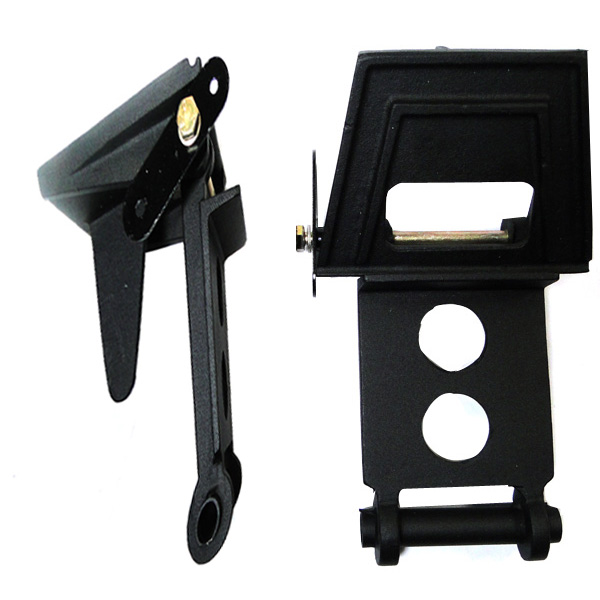

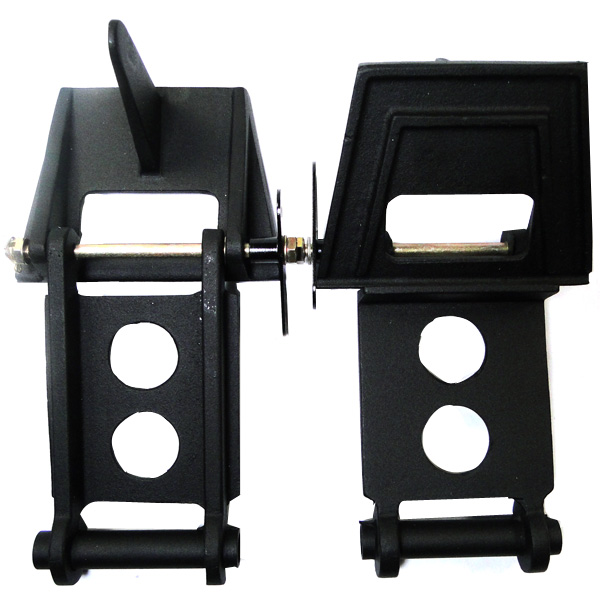

For use with any standard master brake cylinders. Two-piece design. Completely finished, assembled, ready for installation. Wt. 2 lbs. each. Made in USA |
Ordered before noon CST on Thursday and received them Saturday afternoon. Excellent service. Thanks
Rudder Pedal Toe Brake #11350
These will go into a Taylorcraft and preliminary trial fits indicate that they will work perfectly
Rudder Pedal Toe Brake #11350
I successfully adapted this pedal to my Zenith SD750. With slight modification, I attached the pedal to Zeniths 1/2 inch tubular steel rudder system. The Matco brake cylinder (push rod) needed to be extended using 5/16 x 24 threaded rod and coupler nut. End results, appearance and function, are very nice.
Very professional looking rudder / toe brake pedals at a fair price. Was able to combine the two pedals with the Matco Mc-5 master cylinders to produce a first class finished product. Very Pleased.
They may be great but there are no directions on installing. There is no reference material from the company who makes them. Basically you are on your own to guess how the lower end of the brake cylinder might be installed.
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
These are priced and sold as a pair.
These are made of cast aluminum.
Overall length of assembly: 9"
Width of Pedal: 4"
Length of Toe Pedal: 3-1/2"
Dimension from Toe/Heel hinge to floor mount: 5"
I.D. of floor mount tube: 1/2"
