Deluxe Homebuilders Rudder Pedals

Select Model:
Single PlaceTwo Place
Price Includes GST
Quantity
Add to Wishlist

Overview

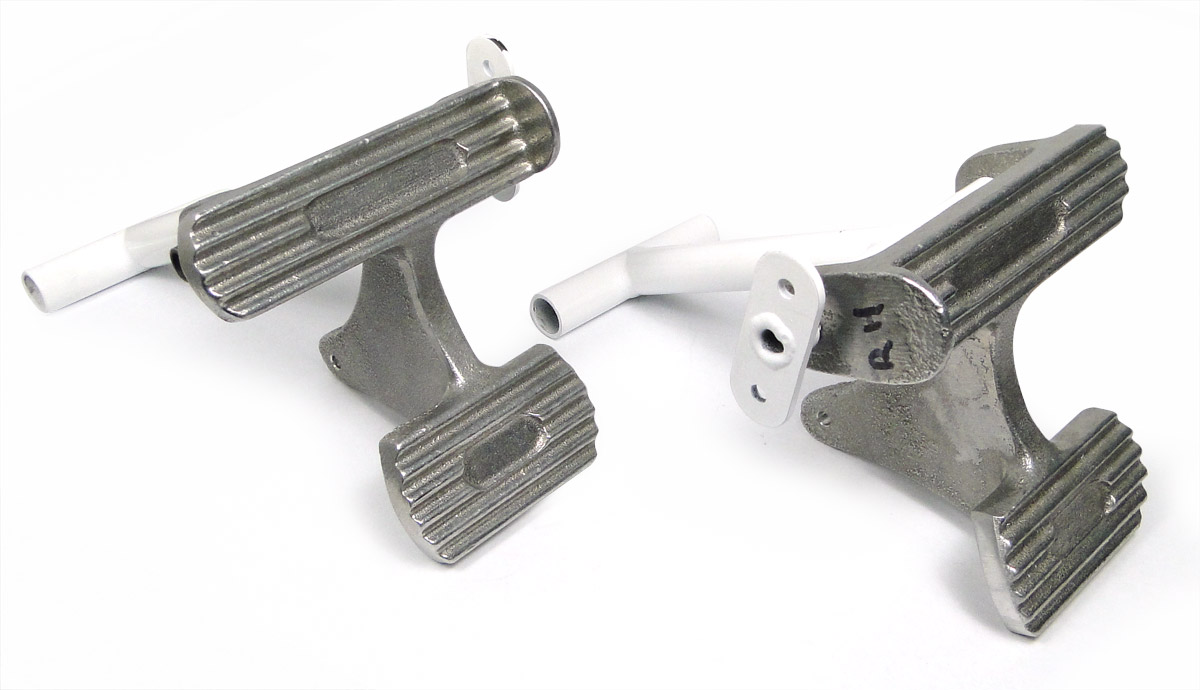

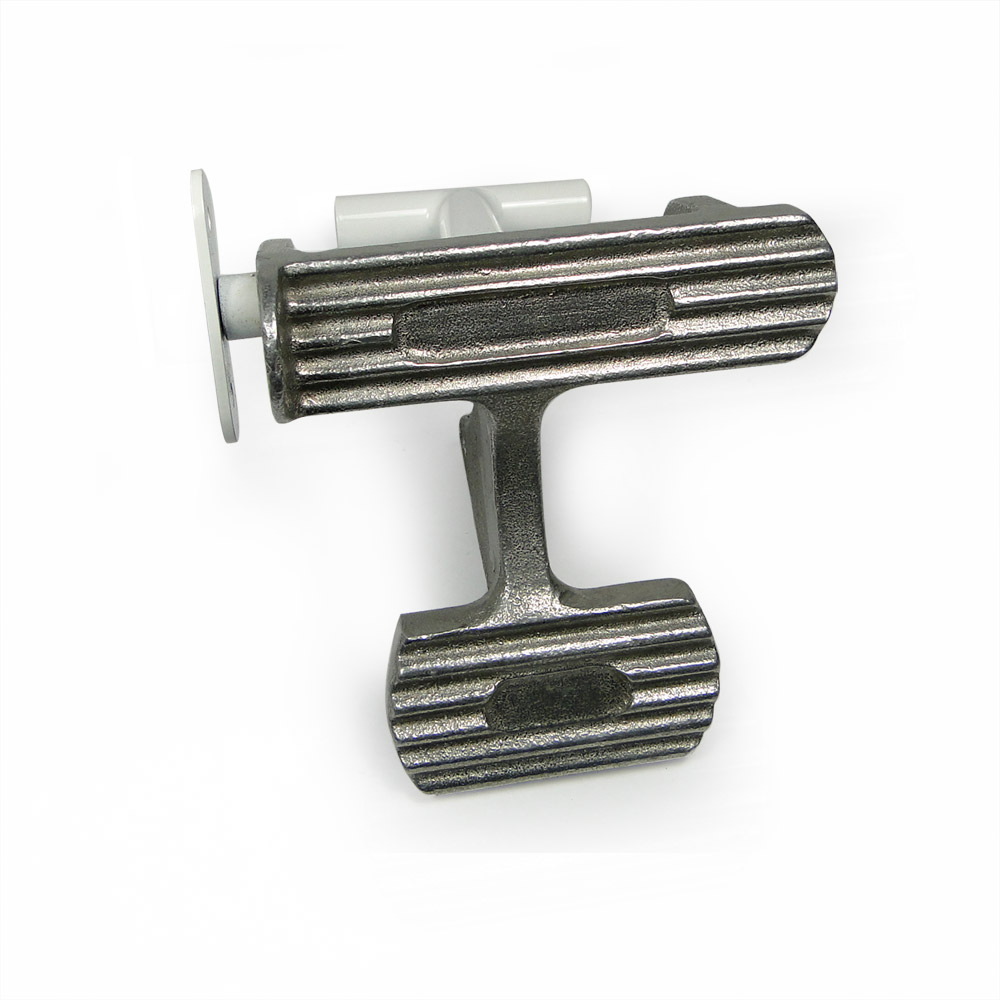

These new toe brake rudder pedals are designed for single or two place tandem seating experimental aircraft. The pedals are aluminum castings and the hinge bracket and pedal pivot pin are constructed from 4130 steel tubing.

The pedals have an attachment point (1/4" hole) at the top to link the toe brake from the rear cockpit to the front cockpit only 2 master cylinders required). To mount the pedals the builder will need two steel bushings 3/4" long to weld through the fuselage and a tube to put through the bushings and the bottom tube of the hinge bracket. Designed for the Acro Trainer, these versatile rudder pedals work well in almost any home built aircraft.

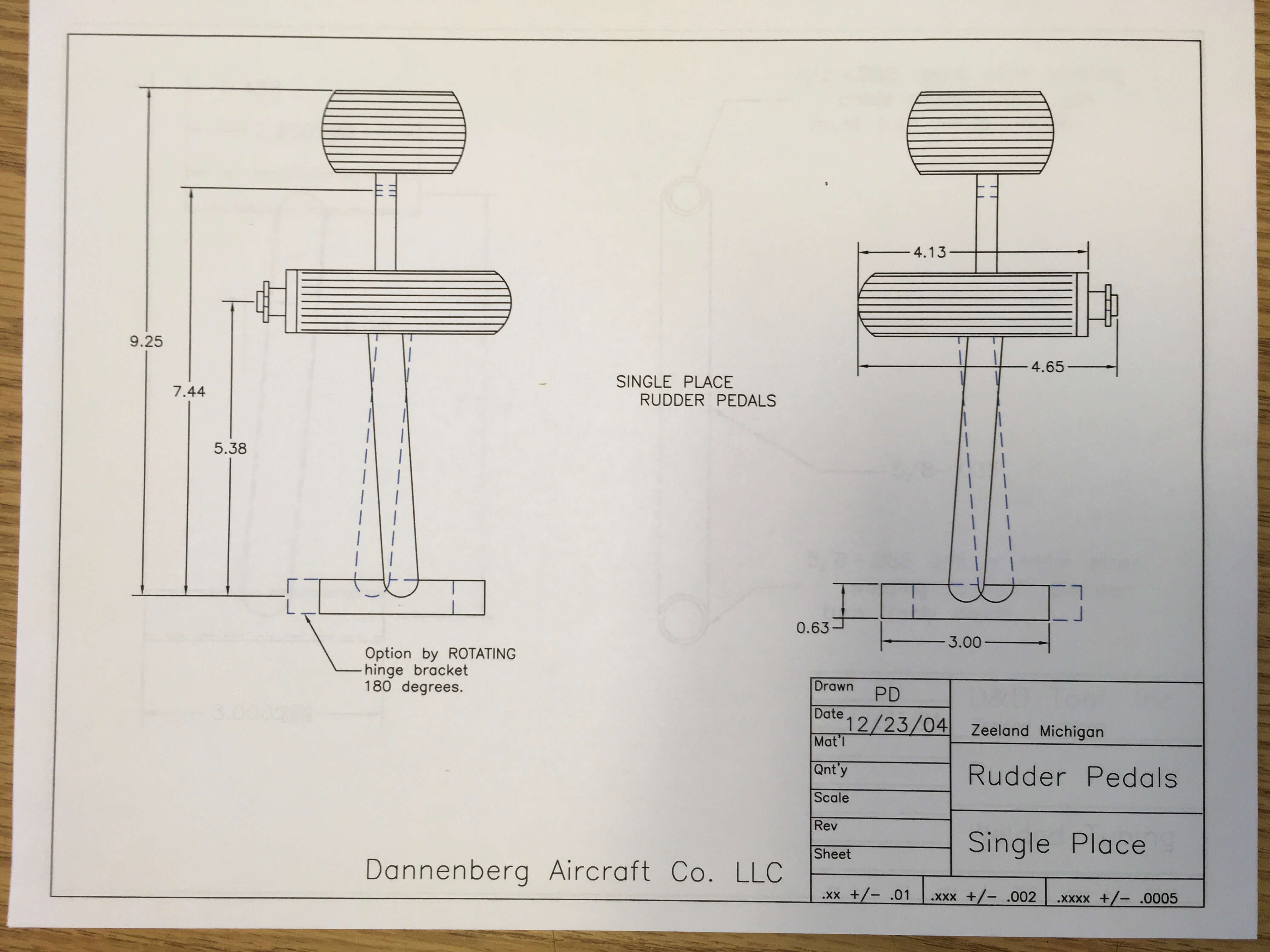

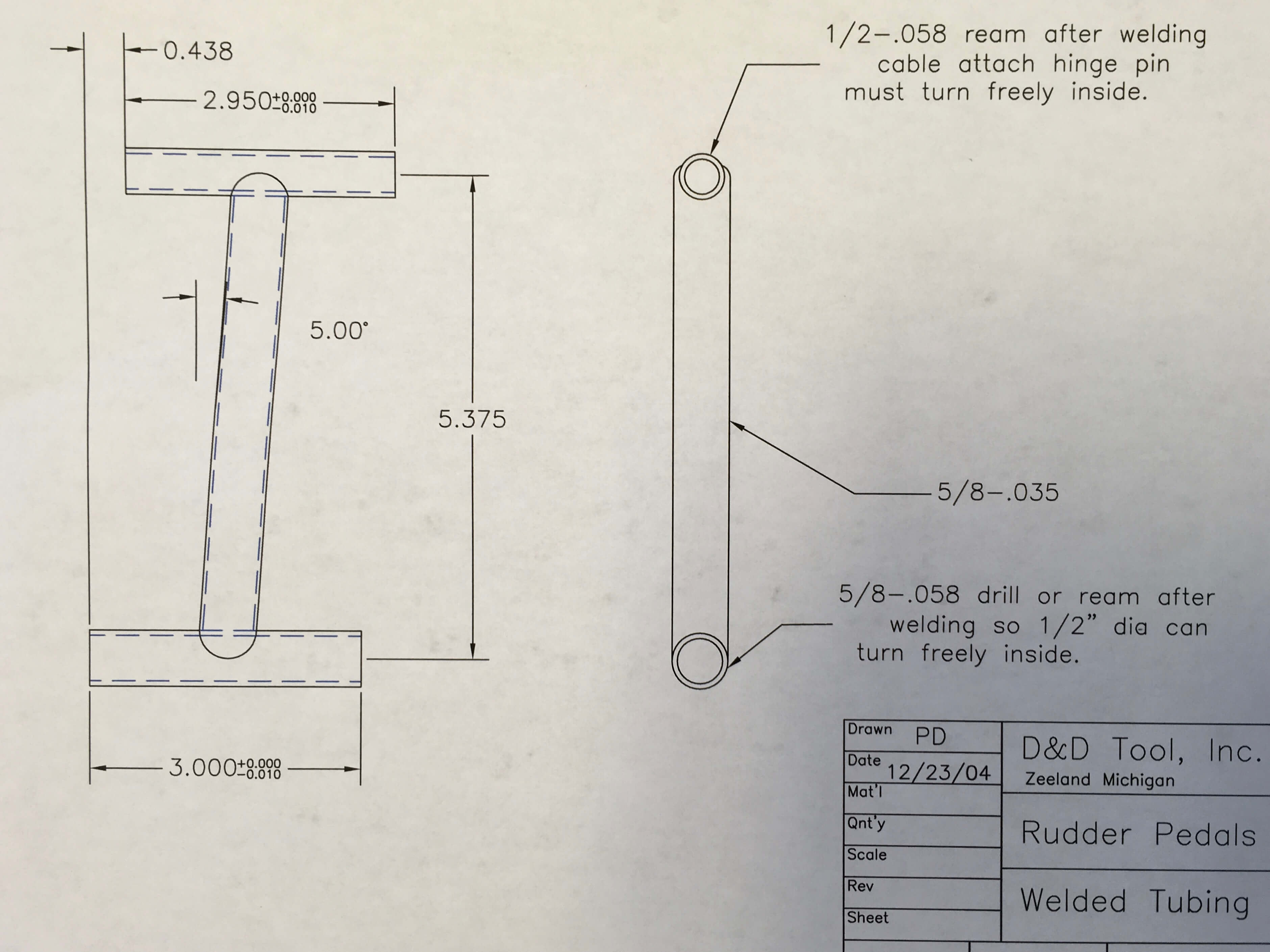

Drawing


Reviews

Bought a set to use on my composite aircraft project, very well built and easy to adapt to fit my application.

Sarah A
March 19, 2014

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What are the dimensions of these pedals?

We have added the dimensional drawing to the web page under the DRAWING section. Please review them there.

Q: I would like to buy only the cast foundry without any cut pieces. Could you sell that?

No. We do not sell these as individual pieces.

Q: Two place kit contains 4 pedals (2 left and 2 right)?

Yes, that is correct. 4 total pedals.
