Image | Mfr PN | Description | Replacement for | PN |
---|---|---|---|---|

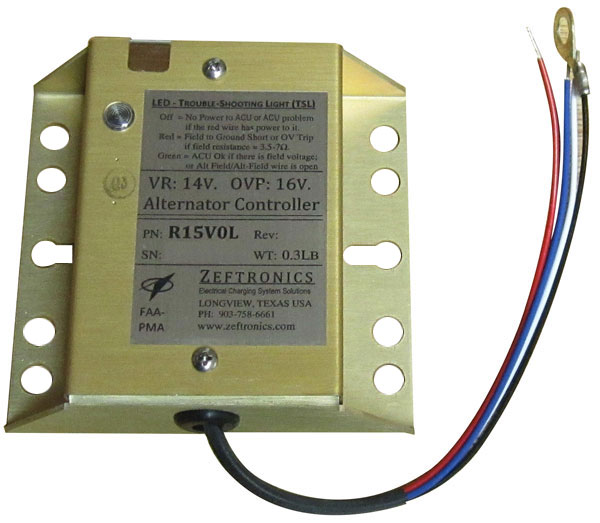

R15V0L | 14V ACU With Ground Fault PRotection, Trouble Shooting Light, Reduced Panel Light Fliker & 16V OV OverVoltage Protection Built in | Piper: 557-337, 450-392, 484-121, 66804-03, 756-055, 484-088 B00371-1, 8, 14, B00267-1,2, B00331-1,2 Electrodelta: VR371, VR200,A Beech: 169-380063 Wico: X16300B, X17990 Delco Remy: 9000590, 1116393, 1116398 Commander: 1816110 Prestolite: FCR4004, 4224, 4001 RBM: 87-87102-21 Lycoming: LA-11357, 12747 Zeftronics: R1510L (ACU), V1510A (OVR) | 07-00629 |
Note: Manufacturer C of C not available on Zeftronics stocked units. Zeftronics C of C available via special order only. If certs are required, please add part # 07-00000 with your order (See Accessories). As a factory authorized Zeftronics distributor, we can assure you the fastest delivery and best prices on all of your Zeftronics engine accessory requirements. We carry the complete Zeftronics product line. If you do not see the product you need listed, please call us for price and availability. Complete information is on file, cross referencing Zeftronics part numbers to all OEM part numbers.If you are not sure what part number you need for your aircraft, please call us for immediate assistance. Download Aircraft Eligibility Chart in .pdf. Note: Please read wiring instructions carefully prior to installation of voltage regulators. Improper wiring will void warranty All returns subject to manufacturer's warranty inspection. For an accurate cross reference, OEM Part Number Required. For Aircraft Eligibility, download the Eligibility Chart |
I have used Zeftronics regulators for years. I installed the R1530B in my Bonanza and still had the problem. I called Zeftronics tech support and they helped me trouble shoot the problem. Their tech support is second to none, first class. The tech representative was very patient and great to work with. I will be putting Zeftronics regulators on all my aircraft.
Worked well to replace my failing regulator. So far, so good.
Zeftronics Volt Reg R15V0L
Zeftronics Volt Reg R15V0L
The Zeftronics unit was really easy to install, good instructions included ans worked perfectly.
Zeftronics Volt Reg R15V0L
Good unit
Zeftronics Volt Reg R15V0L
It works.
Zeftronics Volt Reg R15V0L
There isn’t much to complain about this regulator. It’s quite a bit smaller than expected and rather light compared to the really old regulator this one replaced a pleasant surprise. Small, minor improvements could be made. The wire pigtails are a little short, another couple inches would be nice to give a little more slack and length for a service loop. The schematic and theory of operation concerning the OV light could contain more and better detail. Several warnings on the packaging caution against grounding the white wire. Presumably, the white wire could have buss voltage on it but that’s a guess since neither the schematic or instructions indicate if that’s the case. The white wire is supposed to turn on the OV light but there’s no information about what happens on the white wire. The rest of the documentation is OK which makes me wonder why the info about the OV indication is scant. Hopefully this new regulator will serve as long and as reliably as the old one. I’ll be fuzzy memory if it does.
Zeftronics Volt Reg R15V0L
Works great! Installed In my PA 32. If you have an old school type regulator it’s advised to switch to the model with LED status indicator. It will help with the troubleshooting issues in your power system.
Zeftronics Volt Reg R15V0L
Product works as expected. Had to make a mounting bracket since my last unit was a Delco. Installed unit in about an hour.
Zeftronics Volt Reg R15V0L
This product is way better than the similar comptetiotive products - highly recommende,d Suggst you link shrink tubing and handshake connectors plus but splice connectors as also bought with this prioduct.
Zeftronics Volt Reg R15V0L
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
No, since these parts are FAA-PMA approved, you would not need to get a field approval from the FAA after the installation. However, you would need to have it installed by FAA certified mechanic.
Warranty is 12 months or 600 hours from date of installation, whichever comes first.
Yes, the STC paperwork is included with the STC'd units.
No. This does not come with butt splice and wire termination.
No, this unit does not have the over voltage protection.
It does not, the R15V0N adds the over voltage protection.
