286-05 Carburetor Quick Kit

5 Reviews 2 Answered Questions
$789.80/Each
Price Includes GST
Quantity
Add to Wishlist View More In This Series →
Part# 07-00929
MFR Model# 286-05
Kit Part No.Our Part No.
286-0507-00929

Overview

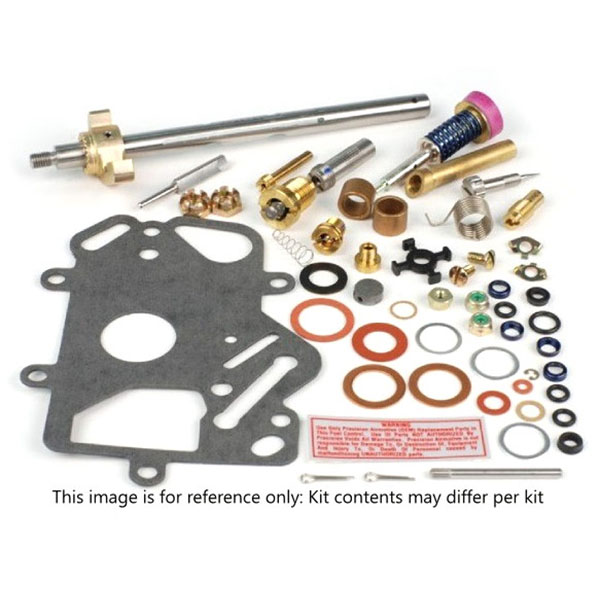

Marvel Schebler "Quick Kits" are easy to use, and are designed to save you time and money. Quick Kits include not only the recommended replacement parts used in every overhaul, but the additional parts used by all fuel professionals to insure the job is done right.

Kits include (where applicable): Throttle shaft lever, throttle shaft, throttle adjusting screw, throttle valve screws, inlet strainer screws, throttle body screws, mixture control lever screw, gasket kit, pump connection rod, throttle adjustment spring, throttle opening spring, idle adjustment spring, float lever shaft, pump stem, throttle shaft bushings, inlet strainer washer, pump stem retainer washer, mixture control lever washer, throttle body washers, throttle lever lock nut, float shaft cotter pin, throttle nut cotter pin, pump lever, pump plunger assembly and float valve seat assembly.

Reference Chart

FRANKLIN CARBURETORS
P/N "Quick kit" P/N
10-2971-P 286-02
10-3007 286-06
10-3063-2 286-06
10-3148-1 286-06
10-3479 286-06
10-5069 286-02
10-5093 286-00
CONTINENTAL CARBURETORS
10-2848 286-02
10-2948 286-02
10-3168 286-05
10-3237 286-03
10-3649-1 286-05
10-3759 286-05
10-3859 286-05
10-3859-1 286-05
10-3965 286-05
10-3965-1 286-05
10-4171 286-05
10-4191 286-05
10-4233 286-02
10-4240 286-02
10-4240-1 286-02
10-4252 286-02
10-4439 286-03
10-4457 286-02
10-4893 286-05
10-4893-1 286-05
10-4894 286-02
10-4894-1 286-02
10-4895 286-03
10-4895-1 286-03
10-5067 286-02
10-5082 286-02
10-5128 286-02
10-5192 286-05
10-5284 286-05

LYCOMING CARBURETORS
P/N "Quick kit" P/N
10-2827 286-07
10-2983 286-00
10-3103-1 286-00
10-3323 286-07
10-3346-1 286-02
10-3391-1 286-06
10-3565-1 286-02
10-3634 286-06
10-3678-12 286-04
10-3678-32 286-04
10-3729 286-02
10-3856 286-06

LYCOMING CARBURETORS cont...
P/N "Quick kit" P/N
10-3856-1 286-06
10-3856-11 286-06
10-3856-12 286-06
10-3878 286-08
10-4057 286-09
10-4057-1 286-09
10-4164 286-08
10-4164-1 286-07
10-4404 286-09
10-4404-1 286-09
10-4910 286-04
10-4910-1 286-04
10-4953 286-00
10-4978-1 286-01
10-5009 286-04
10-5009N 286-04
10-5034 286-07
10-5042 286-00
10-5045 286-10
10-5045-1 286-10
10-5050 286-01
10-5054 286-09
10-5062 286-04
10-5092 286-10
10-5126 286-01
10-5135 286-04
10-5142 286-01
10-5180 286-10
10-5189 286-10
10-5193 286-08
10-5199 286-00
10-5206 286-10
10-5206-1 286-10
10-5206-11 286-10
10-5210 286-10
10-5217 286-04
10-5219 286-11
10-5220-E 286-01
10-5220 286-01
10-5221 286-12
10-5224 286-11
10-5227 286-12
10-5230 286-11
10-5235 286-11
10-5253 286-11
10-5255 286-11
10-5257 286-01
10-5267 286-01
10-5282 286-11
10-5283 286-11
10-5288 286-08
10-6014 286-11
