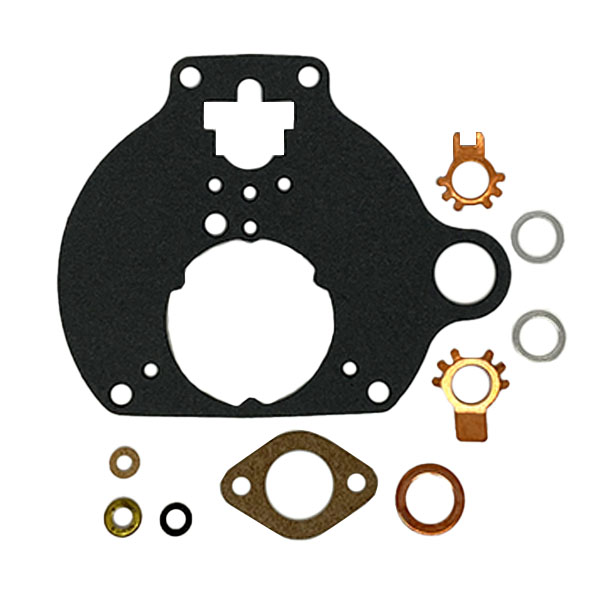

16-696 Marvel Schebler Gasket Kit

$58.08/Each
Price Includes GST
Part# 08-06419
MFR Model# 16-696-F
Mfg. Ref.DescriptionPN
16-696Gasket08-06419

Overview

These replacement parts are manufactured by Marvel Schebler and intended for use with a Marvel Schebler carburetor.
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Guess I should have paid closer attention. I thought there would be the minimum parts included to do a basic clean and inspection. There is no throttle pump shaft seal, no tab washers for the body screws (that must be removed in order to use the gasket) and no hardware. A lot of money for a very sparse kit.

Perfectly P Verified Purchase

16-696 Marvel Schebler Gasket Kit

December 29, 2021

Perfect replacement for MA-3A float bowl gasket.

Matt H
October 2, 2017

Great product works as described

Kevin R
February 15, 2021

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the size of copper washer 16-A36 ? Spruce part #08-06626

ID is .56" and the OD is .81".

Q: What gaskets and parts are included in the 16-625 gasket set? Spruce part # 08-06413

The gasket kit contains the following:

  • 16-A16 strainer vent gasket
  • 16-A30 nozzle gasket
  • 16-A31 body to bowl gasket
  • 16-A32 float seat gasket
  • 16-A39 idle adjusting needle retainer gasket
  • 16-A42 power jet gasket
  • 16-A48 fuel inlet strainer gasket
  • 16-A56 air metering pin plug
  • 16-B44 pump idler screw gasket
  • 44-223 o ring
  • 44-224 o ring
