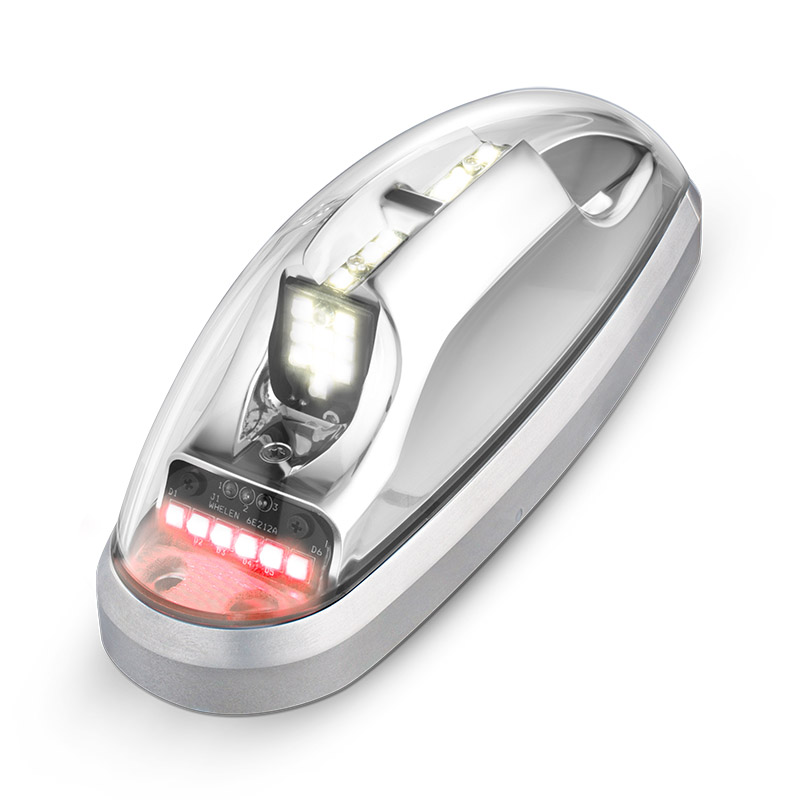

Whelen Orion 600 12V Wingtip Pta Red OR6001R
MFR Model# 01-0771733-02
| Whelen # | Model # | Description | Color | Voltage | Part # |
|---|---|---|---|---|---|
| 01-0771733-02 | OR6001R | Orion Wingtip PTA | Red | 14V | 11-11366 |
Overview
|

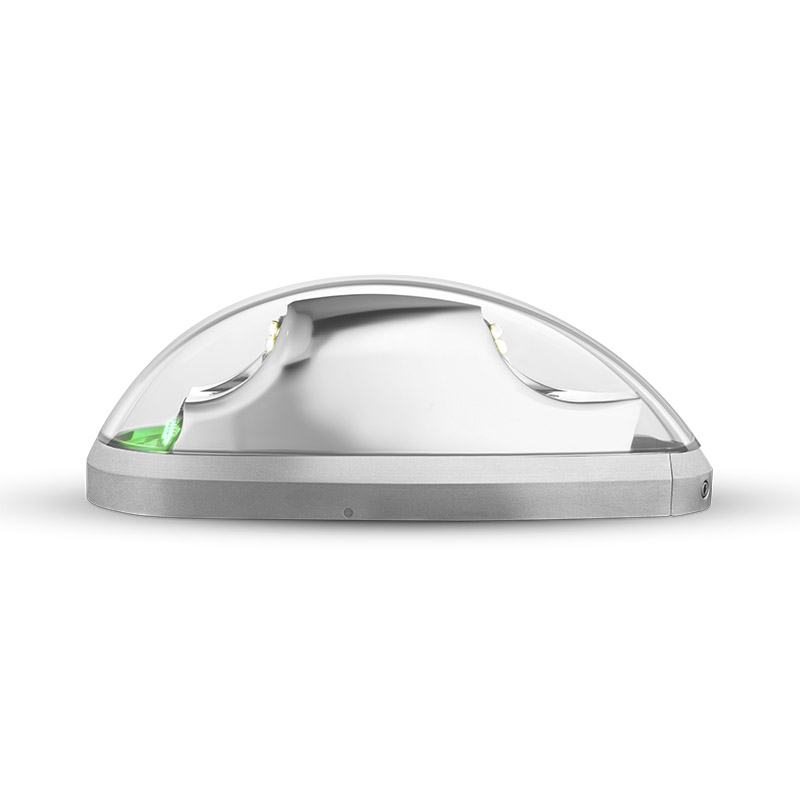

ORION600 Series of FAA/TSO approved LED
aviation lighting. Incorporating the latest state of the art LED Technology available in an all-inclusive
package, the ORION600 series eliminates the need for external flasher boxes. Flush mountable
for a wide variety of applications with minimal integration and easily retrofitable to the
Whelen legacy strobe products. The ORION600 series is quite simply the brightest
form of LED Anti-collision and Position lighting available.
Model ORION600 Position/Anti-Collision Lighthead All LED self-contained wingtip mounted Position/Anti-Collision system. Eliminates the need for external power supplies and reduces current draw and provides thousands of hours of operation. FAA TSO-C96c Class II / TSO-C30c Type II & III |
Features
- Fully FAA/TSO-C96a & TSO-C30c approved
- FAR SPEC Certified
- Replaceable hard coated polycarbonate lens to maintain maximum light output
- No RF emissions
- Aerodynamic design without sacrificing light output
- Exceeds FAA minimum intensity requirements for maximum visibility and increased safety of flight
- Environmentally tested and certified to RTCA/DO-160G standards
Specifications
- Weight 0.4 lbs.(181gm)
- Dimensions H x W x L 2.04 (52mm) x 1.78 (45mm) x 5.65 (144mm)
- Volts 12 VDC 28 VDC
- Position LED colors Aviation Red Aviation Green
- Anti-Collision LED color Aviation White
- Lenses Clear Polycarbonate Hardcoat, Field Replaceable
Far Spec
- A Technical Standard Order (TSO) is a minimum performance standard and does equal compliance with the applicable Federal Aviation Regulations. In fact other manufacturers produce TSO approved items with operational characteristics that conflict with the FARs. Whelen designs products as FAR-SPEC, Federal Aviation Regulations Specified Lighting. FAR-SPEC is compliant with all applicable FARs making your installation legal.
- Installers must follow the approved guidance for installation of the product to be FAR-SPEC compliant
Reviews
Easy to wire, very bright 👍
Verified Purchase
Whelen Orion 600 12V Wingtip Pta Red OR6001R
Work great. Direct bolt on to my 1940 Taylorcraft.
Verified Purchase
Whelen Orion 600 12V Wingtip Pta Red OR6001R
Direct replacement for my 2013 Piper Mirage! Look great and are brighter than the legacy strobe lights!
Very bright. Look sleek. Easy install as a direct replacement for older Whelen unit and didnt need the heavy/large power supply.
Verified Purchase
Whelen Orion 600 12V Wingtip Pta Red OR6001R
Whelen has done a fantastic job with these lights! They are all very bright and super easy to install. For my airplane they even screwed back in the same exact holes as my original old lights.
Verified Purchase
Whelen Orion 600 12V Wingtip Pta Red OR6001R
Verified Purchase
Whelen Orion 600 12V Wingtip Pta Red OR6001R
LEDs arrived quickly and install was fas and easy, and the customer was very impressed with the power.
Not yet fitted to aircraft but bench test was impressive.
Item arrived quick.
Received both light kits quickly with no shipping issues. Installed quickly and works great.
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
For position light: 12v = 1/2 amp, 24v = 0.17 amp
For anti-collision light: 12v = 1 amp, 24v = 1/2 amp
These Orion 600 lights are priced and sold each. An order for quantity 1 will ship with 1 light.
Per the supplier: The Orion 600 series has a rear position light built into it. The footprint is also different. The Orion 650 is designed to replace our legacy A650 products while the Orion 600 is designed to replace the A600 Series assemblies.
Yes, the Orion 600 series LED lights are fully TSO approved for use in certified aircraft.
Yes, the Orion 600 is a 3 in 1 light.
4 conductor, 18 gauge wire.
Yes, the dimensions are available on our website. Go to the Brochure tab, and download the PDF. It includes a dimensional drawing of the lights for reference.
Per Whelen: Per Vendor: That question is for the FAA. We cannot answer questions of legality as they do not involve Whelen Engineering.
Conceptually the answer is yes, the OR600 meets all the position and anti-collision light requirements. However, the FAA may feel differently that must be consulted on these matters.
The strobe is ON/OFF
Each is wired independent and should be run off separate circuits.
