Home / Avionics / Audio Panels / PS Engineering /PS Engineering PmA8000G Advanced 6 Place Audio Panel
Main Image

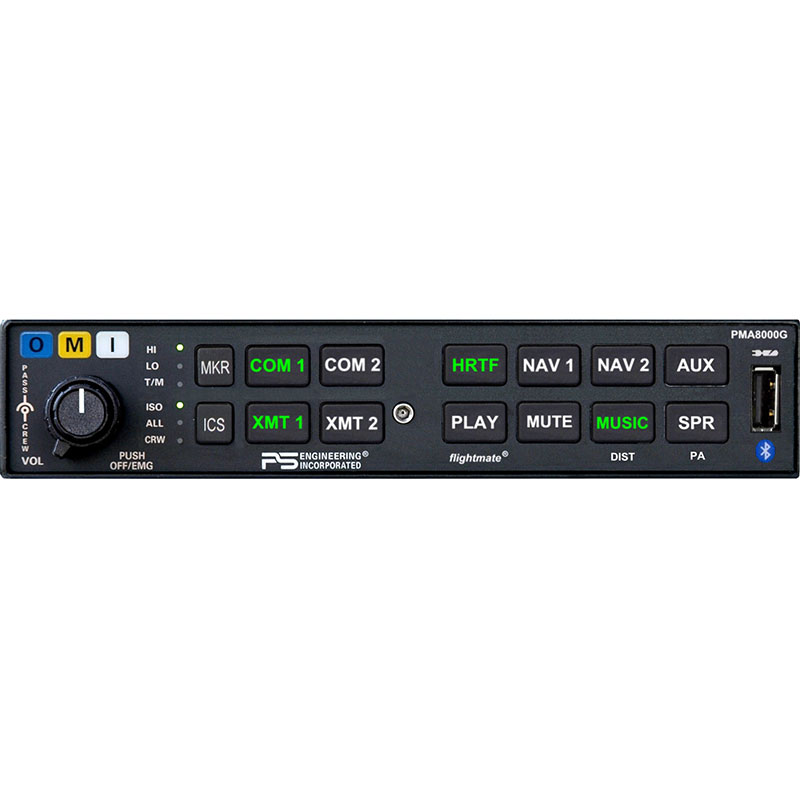

PS Engineering PmA8000G Advanced 6 Place Audio Panel

2 Reviews 3 Answered Questions
$2084.50/Each
Price Includes GST
Quantity
Add to Wishlist View More In This Series →
Part# 11-14511
MFR Model# 050-890-0912

Overview

The PMA8000G marks a major milestone in the company’s innovative history. Third generation user interface along with advanced digital processing, makes this a perfect fit for pilots who expect more from their audio panel while not wanting complexity. The PMA8000G is a natural choice for pilots who demand ease of use with a deep set of audio panel capabilities.

Introducing flightmate®, the first multi-function digital recorder/audio system available in an audio selector panel. Functions such as creating 4 aural alerts, creating checklists, and an instant aircraft radio playback are all part of this emergency procedures, just about anything that pilot can say, they can store into non-volatile memory, making those checklist chores a bit easier.

flightmate® also allows the creation of aural alert that are programmed by the pilot using a few front panel key presses while speaking into the pilot’s microphone. This records these annunciations in locations that are specific to one of the four discrete inputs of the audio panel. Anytime there is a change of state (a out of limit condition or a Sonalert starts to sound off) the associated message will sound out until it is acknowledged.

One of the four discrete messages is designed specifically for Sonalerts, the other three are for logic levels, typically coming from electronic engine instruments or other devices that give a change of state during a pre-set condition.

IntelliAudio® is another standard capability that will make listening to multiple radio calls manageable. With Com 1 in the 10 O’clock position and Com 2 in the 2 O’clock position, pilots can pay attention to the radio that is most important at any one instant of time.

Bluetooth® interconnectivity allows the pilot to have access to their Bluetooth® enabled telephone or entertainment device. The ability to contact ATC by way of the telephone with the engines running and radios tuned and set at an uncontrolled airfield makes getting into the air under IFR condition much easier.

And like all of our PMA8000 series, there are front panel configuration that allows both the pilot and copilot to configure the intercom to best suite the needs of the cockpit crew and passengers.

We have also included a USB charging port that is rated at 10 watts. This charger provides enough power for iPads that are running the most demanding application.

We also took a fresh approach to the user interface, making access to the advance functions much easier than in past iterations of the PMA8000 series.

    Unique Innovations in the PMA8000G:
  • IntelliAudio® True Dimensional Sound enhances radio communications
  • flightmate® Pilot recordable aural alerts, continuous loop digital recorder, pilot recordable checklists
  • Telephone and music streaming enabled allowing connections to iPhones, iPads, PDA
  • IntelliVox® automatic VOX system with individually gated microphones

    Additional Capabilities
  • 10-Watt USB Front Panel Charging Port
  • Split mode for dual audio panel capability
  • 6 Place hi-fi stereo intercom with Soft Mute™
  • ASC (Active Static Control) eliminates constant back ground noise
  • 3 music mute modes: Mute On, Radio Mute, Mute Off
  • Built-in Marker Beacon Receiver
  • Cellular telephone input with "DuTel™" telephone distribution
  • 2 Differential, hi-fidelity stereo music source inputs (no ground loop noise)
  • 3 Isolation modes - Pilot Isolate, All, and Crew
  • 4 unswitched inputs
  • Selectable music distribution for passengers
  • 2-year Pro-Support Warranty

Harness

  • PS Engineering requires all units to be sold with custom harness in order to maintain factory warranty. Units sold without harness will receive no factory warranty. All PS Engineering orders with custom wire harness are build to order and require all questions to be filled out to process correctly. Any custom order not complete will cause delays. All custom harnesses are built to IPC-WHMA-A-620 standards via the manufacturer’s installation manual. Any additional comments or special requests may be noted in the Special Instructions field at checkout for review by the avionics team. For questions regarding custom harnesses for PS Engineering please email avionics@aircraftspruce.com or call us at 800-826-3160.

Videos

https://www.youtube.com/embed/sRyeVyj0BKM

Reviews

Submit a Review

Easy installation, replaced GMA340. Works great.

Gene V Verified Purchase

PS Engineering PmA8000G Advanced 6 Place Audio Panel
December 1, 2023

Great 👍

Daniel C Verified Purchase

PS Engineering PmA8000G Advanced 6 Place Audio Panel
November 15, 2023

Q&A

Submit

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does this PS Engineering PMA 8000G include the tray / install kit?

Yes, this will include the mounting tray and install kit.

Q: Does this PS Engineering 8000G have an stc #?

This part has a TSO, not STC. FAA- TSO C50c, C35d, C71

Q: Is PMA8000G a direct slide in replacement for the PMA8000B?

Per PS Engineering: "Yes...it would be a direct replacement."
