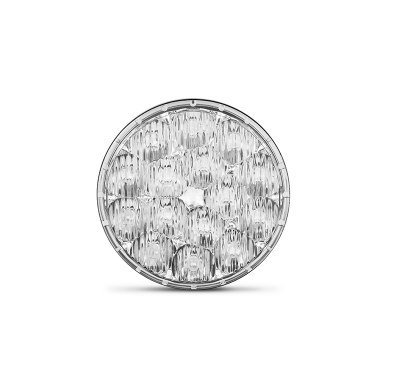

AeroLEDs Sunspot 4587 Taxi Light PAR 36 FAA-PMA - Certified
MFR Model# 01-1030-4587
Overview
SunSpot™ 36-4000 Series Landing Lights are designed as an LED drop-in replacement for existing legacy PAR36 lights and offer the highest performance in the industry.
|
Specifications
- Voltage Range: 18VDC-30VDC
- Current Draw at 28VDC: 3.5 Amps Max
- Power Consumption: 100 Watts
- Thermal Protection: Built In
- Landing Lens Candela: 50,000
- Landing Beam Angle: 20ºx40º
- Total LED Lumens: 11,000
- LED Count: 15
- Height: 4.4” Diameter (round)
- Width: 4.4” Diameter (round)
- Depth: 2.1”
- Weight: 11.5 Oz
- Heat Sink Material: Black Powder Coated Aluminum
- Lens Material: Polycarbonate
- Lens Protection: Optional film
- Clamp Mount: PAR 36 Ring Clamp
- Rated Life: >30,000 Hours
- Temperature Range: -55C to +70C
Documents
- PMA Letter (PDF)
- PMA Letter Supplement 2 (PDF)
- PMA Letter Supplement 4 (PDF)
- PMA Letter Supplement 7 (PDF)
- PMA Letter Supplement 11 (PDF)
- PMA Letter Supplement 18 (PDF)
- PMA Letter Supplement 19 (PDF)
- Part 23 STC SA02386AK (PDF)
- Part 27 STC SR02704SE (PDF)
- MDL Part 23- 0003-0001 (PDF)
- MDL ST-20-502-02 (PDF)
Reviews
Outstanding taxi light. Very bright. Spreads the light out from edge to edge of the taxiway. Looks a lot like the headlight pattern you would get from a modern automobile.
Without a doubt, its the brightest taxi light I have ever seen. Its like turning on the sun in front of your airplane. You can see at least thirty yards ahead of you and fifteen yards on each side. The LED lights I replaced did not cover half that area and were not nearly as white or as bright. This light is a direct replacement for the incandescent or other LEDs and is really easy to install. It is well-designed and really does the job. Yes, its a bit expensive, but you get what you pay for.
Verified Purchase
AeroLEDs Sunspot 36-4587 Taxi Light FAA PMA 24V
Good dispersion for a taxi light. Very bright.
Verified Purchase
AeroLEDs Sunspot 36-4587 Taxi Light FAA PMA 24V
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
If the aircraft has a 28v system, the AeroLED Sun Spot 4587 can be used to replace any PAR36 lamp.
