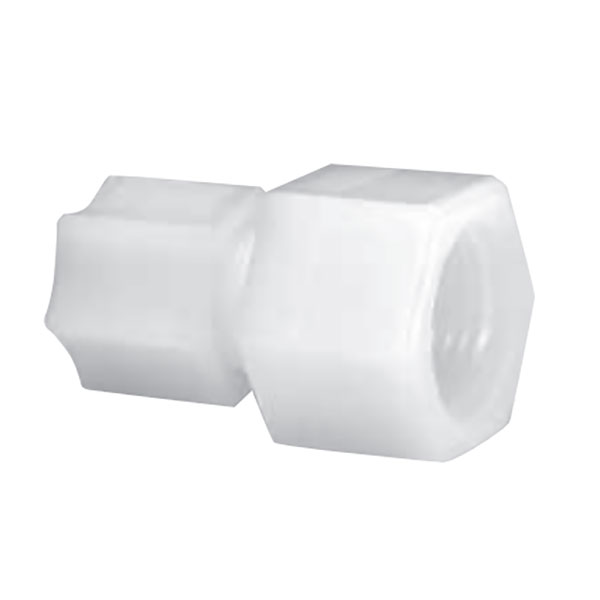

3/8 Tube, 1/4 Female NPT Compression Connector

$3.25/Each
Price Includes GST
Part# 12-05469
MFR Model# 1566X6G
Tube O.D.Female
Pipe Thread
OEM P/NLDCP/N
3/81/41566x6G1.200.3611/1612-05469

Overview

1566 Series Female NPT Nylon Compression Connector.

Specifications

  • Connection Type A x B: Tube x Female NPT
  • Material: Nylon
  • Specifications: FDA, NSF
  • Style: Gripper Style Nut
  • Type: Compression Connector
  • Working Pressure: 220 psi
