Rotax 503 Ul Engine Electric Starter- Single Parts Pto Side

From $0.57 to $0.79
Prices below incude GST

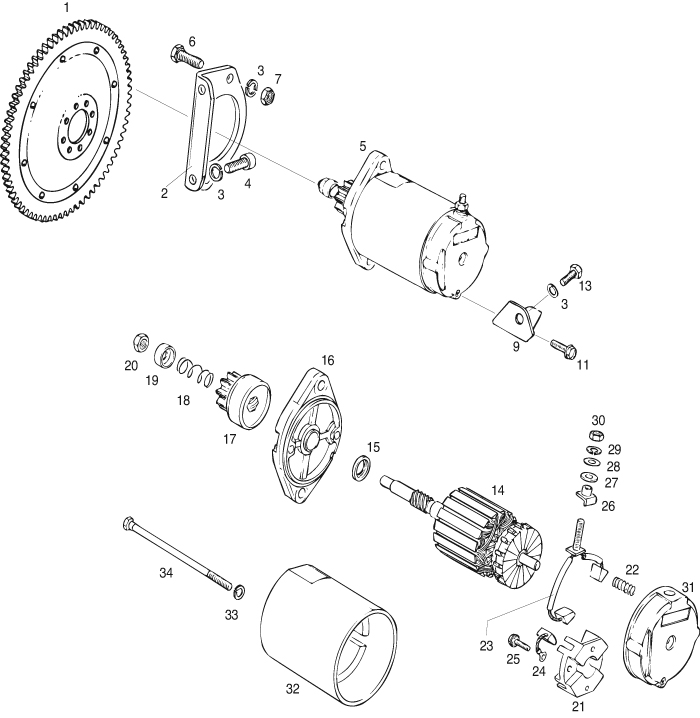

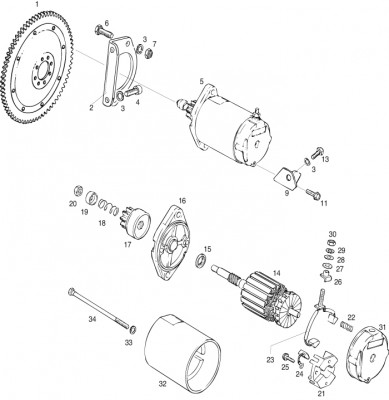

Reference Chart

(Hover to zoom | Use mouse wheel for +/-)

No. Part Number Description Qty Req. PN Price Buy
4240-081ALLEN SCREW M8X25 DIN 912 2
15-00117
$0.87
Quantity
6240-276HEX. SCREW M8X252
15-00133
$0.87
Quantity
7242-209HEX. NUT M8 2
15-00212
$0.74
Quantity
33945-751LOCK WASHER A6 DIN 128 2
15-09799
$0.63
Quantity
Subtotal $0.00
Add to Wishlist

Overview

- Items not illustrated
  • a   with ring gear holder
  • b   without ring gear holder
  • c   brush holder, not available as spare part, use end frame assembly 866-555.


Explanations of symbols and statements in part number charts:
  • N = Newly introduced part number
  • s.v. = Still valid. Part was replaced by compatible component and can not be supplied any longer by the producer. Existing stock may be used.
  • AR = As required. This generally refers to shims, hose, wires, and cable. Measure the amount you need before ordering. Many times there will be multiple listings of different lengths with the same part number. Use individual part descriptions to determine the proper length needed.
  • n.a or NLA = No longer available, no replacement from Rotax. Part is no longer available due to incompatibility to current production or unavailability of part.
  • CALL = Please call for price, 800-247-9653

Notes

No.
Status
Part No.
Description
447
503
582
m90
582
m99
618
Price
9
853-775
STARTER SUPPORT
1

*
21
BRUSH HOLDER
1c
1c
1c

NLA
22
SPRING
4c
4c
4c

NLA
23
BRUSH WITH SCREW ASSY.
1c
1c
1c

NLA
24
CARBON BRUSH
1c
1c
1c

NLA
25
COMBINED SCREW
2c
2c
2c

NLA
27
INSULATING WASHER
1c
1c
1c

NLA
31
CAP AND BEARING ASSY.
1c
1c
1c

NLA

Reviews

I would of hoped they would of been hardened nuts , but there just plain old metric nut you could buy over the counter ag shop.

Synov G Verified Purchase

ROTAX 242-209 HEX. NUT M8

July 14, 2023
